3.7.3

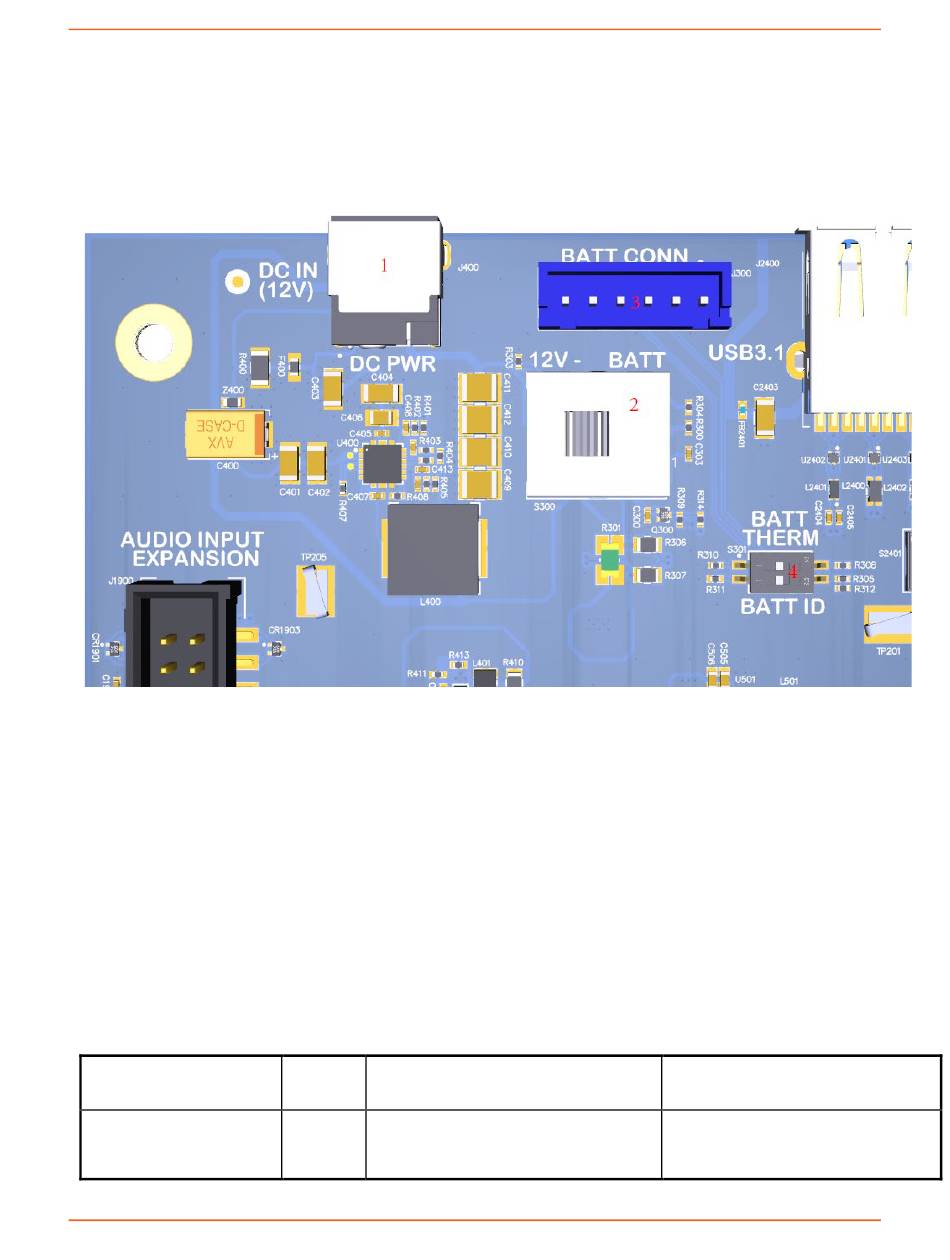

Input Power Selection

The development kit can be powered using either external DC power supply or by using a battery. The

input power source selection is performed by using the connectors and selection switches shown in the

figure and subsections below.

3.7.3.1

Input Power Selection Switch S300 (2)

The S300 switch shown in the figure above is used to select the power source. To select the external DC

power supply as the power source, slide the switch towards the '12V' position. To power up the kit using

the battery, slide the switch towards the 'BATT' position. The default position is '12V'.

3.7.3.2

Battery ID and Thermistor Configuration DIP Switch S301 (4)

The 2-position DIP switch S301 shown in the figure above configures the battery ID and thermistor

settings. The table below describes the settings for the battery ID / thermistor DIP switch.

Table 4 – Battery ID / Thermistor Configuration DIP Switch Settings

Function

BATTERY THERMISTOR

Open-Q 845 µSOM Development Kit User Guide

DIP

Description

Switch

Selects whether or not a 10K ohm

S301-1

thermistor is attached to the battery

connector J300.

3: Open-Q 845 µSOM Development Kit

Notes

For DC powered dev kit, set switch to

closed / ON (default). This enables the
