Mounting the Hood

CAUTION
At least two installers are required due to the
weight and size of the hood.
1. Select preferred ducting application (vertical or
horizontal) and prepare hood. Refer to page 11
for single blower horizontal ducting, page 13 for
dual blower vertical ducting or page 14 for dual
blower horizontal ducting.
2. Plum and mark center line on wall.
3. Choose desired height above cooking surface
(24" min). Level and mark hood bottom, line A
(FIG. B)
4. Level and mark top of wood board, line B (FIG.
B) 16-7/8" from line A.
5. Mark center line of wood board. Center and
align top of board with line B. Secure wood
board to studs using (4) #6 wood screws. Wood
Board Dimensions: (W x D x H)
AK7500CS - 27" x 1/2" x 4"
AK7536CS - 33" x 1/2" x 4"
AK7542CS - 39" x 1/2" x 4"
AK7548CS - 45" x 1/2" x 4"
AK7554CS - 51" x 1/2" x 4"
6. Prepare duct pipe and duct cut outs in upper
cabinet if needed or wall If horizontally ducting
hood. Refer to hood specifications on page 15
for dimensions.
Tempest II Use, Care, and Installation Guide
Installation Instructions
B
wood board
A
C/L
4"
16-
min
24"
C/L

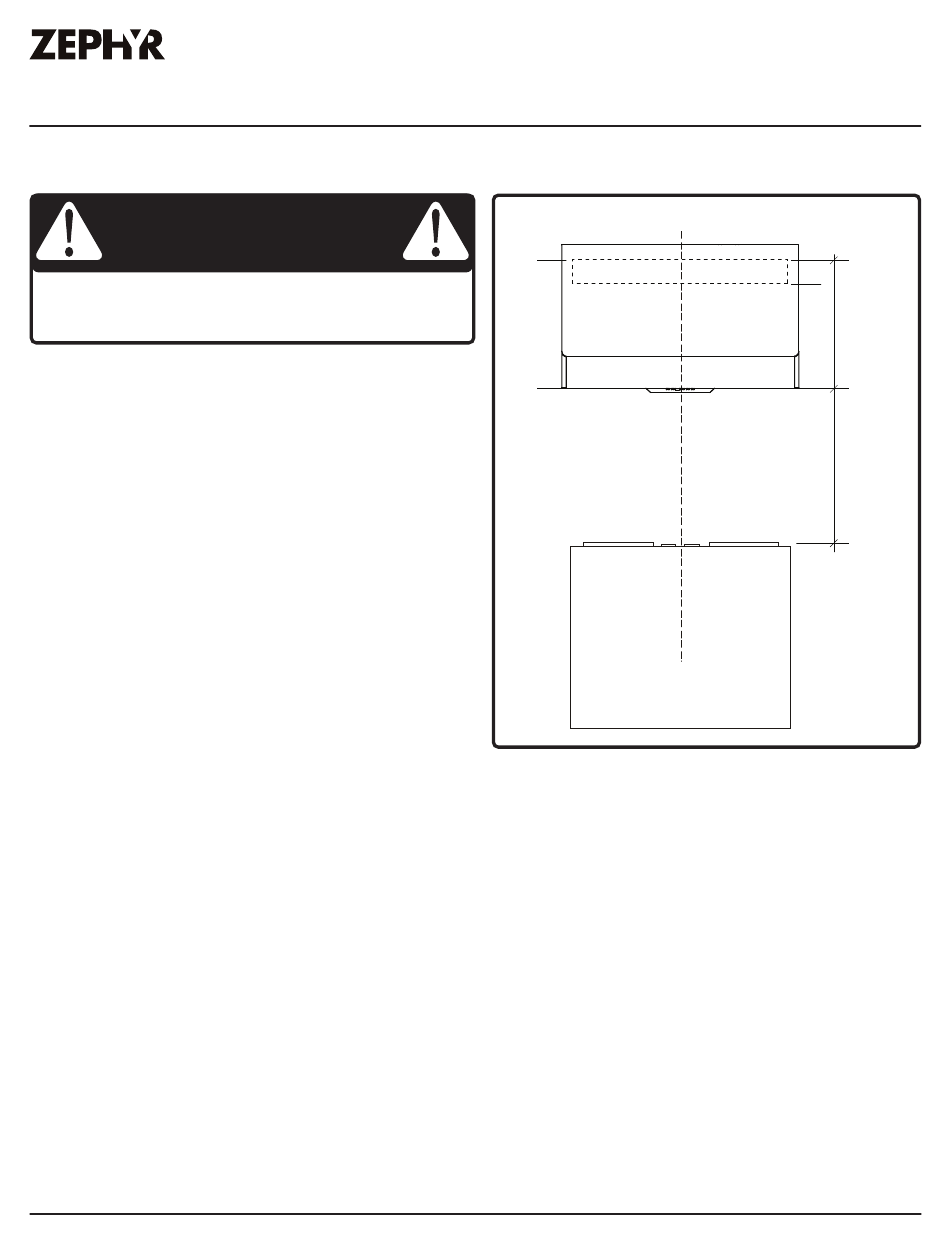

FIG. B
"
7/8
