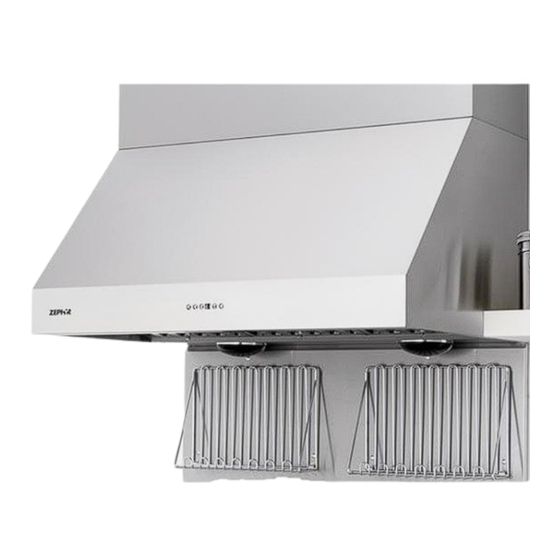

Zephyr AK7500ASX Use, Care And Installation Manual
Tempest ii
Hide thumbs
Also See for AK7500ASX:
- Use, care and installation manual (23 pages) ,
- User, care, and installation manual (23 pages) ,
- Use, care and installation manual (22 pages)
Related Manuals for Zephyr AK7500ASX
Summary of Contents for Zephyr AK7500ASX
- Page 1 Tempest II AK7500ASX AK7536ASX AK7548ASX Model number: Serial Number: Date of Purchase: Sales Dealer: SEP07.0101 © Zephyr Corporation READ AND SAVE THESE INSTRUCTIONS...
- Page 2 www.zephyronline.com...
- Page 3 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ............Specifi cations ............... Electrical ................. Mounting the Range Hood ........Single and Dual Internal Blowers ......CBI-600B Horizontal Ducting Conversion 12-13 ..
- Page 4 www.zephyronline.com READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a.
- Page 5 WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. CAUTION To reduce risk of fi re and to properly exhaust air outside - Do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces or garages. OPERATION Always leave safety grilles and fi...
- Page 6 MODELS: AK7500ASX, AK7536ASX, AK7548ASX PARTS SUPPLIED 1 - Hood 2 - Baffl e fi lters AK7500ASX, 3 - AK7536ASX, 4 - AK7548ASX 2 - Halogen light bulbs 3 - AK7548ASX (pre-installed) 1 - 10” round transition adapter (for dual internal and external blowers)
- Page 7 Equivalent number Equivalent number Duct pieces Duct pieces length x used T otal length x used T otal 3-1/ 4” x 10” 1 Ft. 6” Round 30 Ft. Rect., wall cap straight with damper 6” Round, 1 Ft. 6” Round, 30 Ft.
- Page 8 www.zephyronline.com Minimum mount height between range top to hood bottom should be no less than 26”. Maximum mount height should be no higher than 12" 36”. It is important to install the hood at the proper mounting height. Hoods mounted too low could 18"...
- Page 9 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside. Use metal ductwork only. Fasten all connections with sheet metal screws and tape all joints with certifi ed Silver Tape or Duct Tape. Some Ducting Options Side wall cap Side wall cap...
- Page 10 www.zephyronline.com ” 3/16 12” ” 1/16 *10 ” ” 11/16 elec blwr ” (30”) 15/16 ” (36”) 15/16 ” (48”) 15/16 24” *10” transition used with dual and external blowers. side ” 15/16 ø 9 15/16” elec ” 7/16 24” (30”) 30”...
- Page 11 ELECTRICAL WARNING All Electrical work must by performed by qualifi ed electrician or person with similar technical know how and background. For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance. Follow national electrical codes or prevailing local codes and ordinances.
- Page 12 4. Mark center line of wood board and align top of board with line B. Secure wood board to studs using (4) M4 wood screws. Wood Board Dimensions: (W x D x H) AK7500ASX - 28” x 3/4” x 4” AK7536ASX - 34” x 3/4” x 4” 26”...
- Page 13 PBI-1100A DUAL INTERNAL BLOWER WILL ACCOMODATE VERTICAL DUCTING ONLY Please turn to page 12 for instructions on installing CBI-600B in horizontal ducting mode. 1. Position blower plate over bracket on inside 2. Connect male end of blower wire to female plug back of hood and pivot up.
- Page 14 www.zephyronline.com HORIZONTAL DUCTING IS ONLY AVAILABLE IF USING THE CBI-600B SINGLE INTERNAL BLOWER. 1. Unscrew (4) screws holding blower to plate and 2. Cover round blower opening on blower plate remove blower. with 6” round metal cap included with the CBI-600B.
- Page 15 6. Attach 6” round to rectangular transition adapter 7. Attach blower brackets to blower with to hood with (4) M4x8 screws. (4) 10x3/16” screws. (2) screws for each bracket. 8. Place blower into round end of 6” round 9. Attach rectangular starting collar to hood using transition adapter.
- Page 16 www.zephyronline.com 2. Install threaded end of external blower wiring 1. Place 10” round adapter on top of hood and through external blower wiring knock out secure with (4) M4x8 screws. Connect 10” located inside the hood. round duct work to 10” round adapter. 3.
- Page 17 Lights On/Dim/Off Display (Speed level, Delay Off Indicator) 5 Min Delay Off Blower On/Off Adjust 3 Speed Levels Blower On/Off By pressing , the blower is switched On and Off. When switched on, the blower turns on at the same speed it was switched off at.
- Page 18 1. Push fi lter toward back of range hood using handles. 2. Pivot front of fi lter downward. 3. Remove fi lter by pulling away from hood. Replacing Baffle Filters Hood Model: Part No. Qty. to Order. AK7500ASX 50210004 AK7536ASX 50210004 AK7548ASX 50210004...
- Page 19 REPLACING LIGHT BULBS CAUTION: Light bulb becomes extremely hot when turned on. DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns. Make sure all power is turned off and bulbs are not hot. Remove by turning bulb counter clockwise.
- Page 20 www.zephyronline.com TROUBLESHOOTING PROCEDURES FOR TEMPEST I AND TEMPEST II Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2.
- Page 21 DESCRIPTION PART # Replacement Parts Light Bulb MR16 (GU10) 35W (each) Z0B-0015 Baffl e Filter (each) 50210004 Optional Accessories Single Internal Blower CBI-600B Dual Internal Blower PBI-1100A External Blower CBE-1000 Heat Lamp Kit (30”) AK0700B Heat Lamp Kit (36”) AK0706B Heat Lamp Kit (48”) AK0708B Back Splash (30”)
- Page 22 www.zephyronline.com TO OBTAIN SERVICE UNDER WARRANTY: Staple your receipt here. or any Service Related Questions, please call: 1-888-880-8368 Proof of the original purchase date is needed to obtain service under the warranty. TO OBTAIN SERVICE UNDER WARRANTY: You must present proof of original purchase date. Please keep a copy of your dated proof of purchase (sales slip) in order to obtain service under warranty.
