Connecting the Amplifier to your PC
USB Gaming Soundcard
SOURCE
Line Out (Jack 3.5 mm TRS)
Internal Soundcard
SOURCE
Sub / Aux Out (Jack 3.5 mm TRS)
Connecting the Amplifier to your Home Theatre System
Main Stereo Out
SOURCE
2Ch Audio Out
Subwoofer Out
SOURCE
Subwoofer Out
Presets
PRESET # NAME
1
Music
2
Cinema
3
Gaming
10 | MeMo

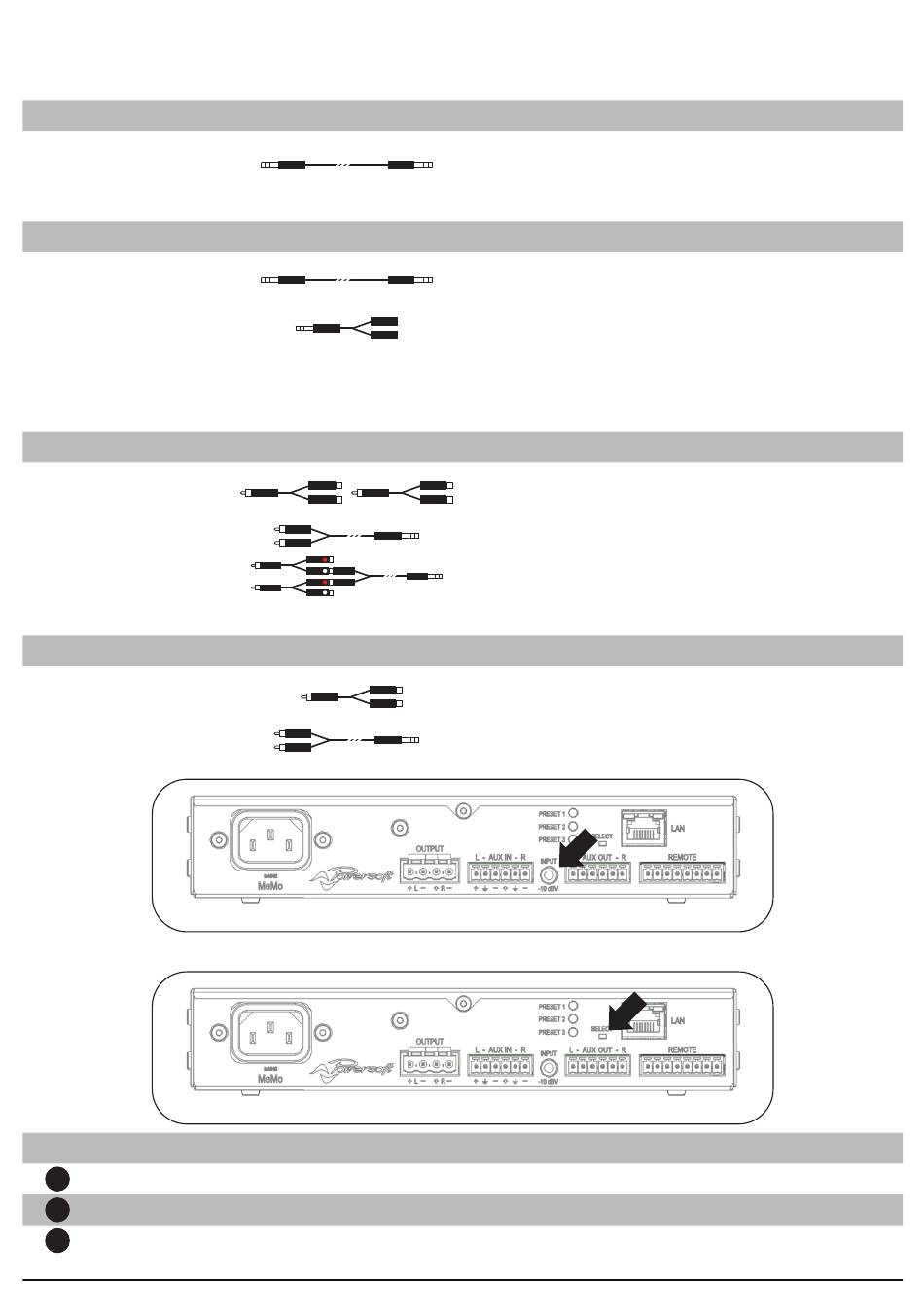

WIRING
Jack 3.5 mm TRS cable
WIRING
Jack 3.5 mm TRS cable
Jack 3.5 mm TRS Splitter
WIRING
2 x RCA Splitters
RCA-TRS cable
WIRING
RCA Splitters
RCA-TRS cable
Amplifier Input
Press the preset button to toggle between presets
Ideal for every multimedia and music content!
Ultra-low frequency enhanced for the best movie experience!
Dive yourself inside your favorite game and play with the fourth dimension!
INSTRUCTIONS
Connect the Line Out on the USB Soundcard to the Amplifier's Input
Connect your headphones to the Usb Soundcard
INSTRUCTIONS
Split the Sub / AUX OUT signal of the Internal Soundcard
Connect the minijack cable to one side of the splitter
Connect the minijack cable to the Amplifier's Input
Connect your speakers to the Internal Soundcard's Main Output
INSTRUCTIONS
Split the 2Ch Audio Out on your Blu-Ray Player with the RCA splitters
Connect the RCA-minijack cable to the splitters
Connect the RCA-minijack cable to the Amplifier's Input
Connect the rest of your system to the splitter's remaining connectors
INSTRUCTIONS
Split the Subwoofer Out on your Blu-Ray Player with the RCA splitter
Connect one terminal of the RCA-minijack cable to the splitter
Connect the RCA-minijack cable to the Amplifier's Input
Connect the system's subwoofer to the splitter's remaining connector
DESCRIPTION
