3) DESCRIPTION OF THE UNIT
3.1) Description

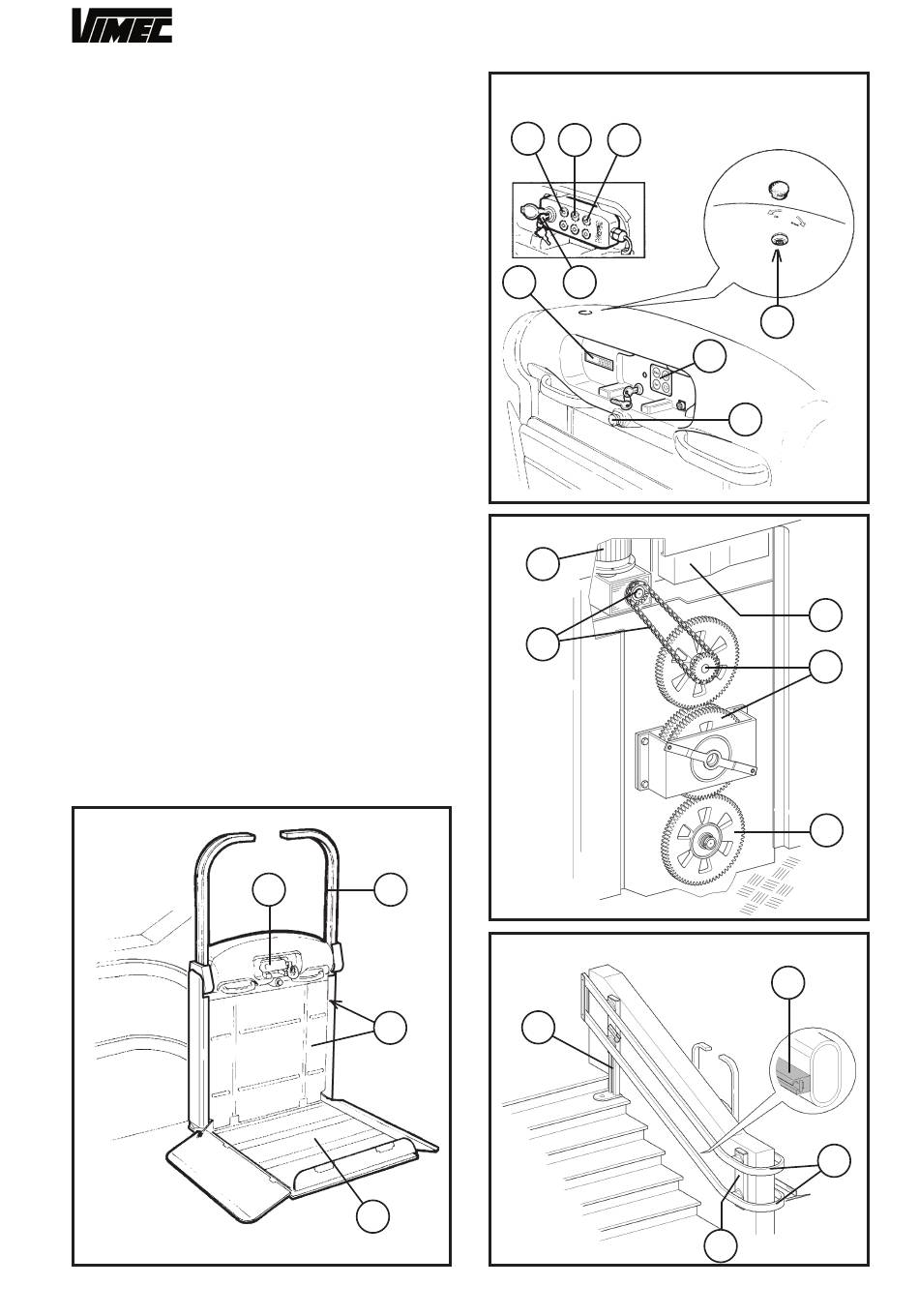

Car - Fig. 1
Comprises:
- carriage.
- frame.
- protection arms- Fig. 1/a.
- platform - Fig. 1/c.
- casing - Fig. 1/b.
- control panel - Fig. 1/d.
Contains:
The control panel carries the following:
- controls on/off key - Fig. 2/a.
- up/down control buttons - Fig. 2/b.
- arm and platform control buttons - Fig. 2/c.
- floor selector buttons - Fig. 2/d.
On the car:
- red "mushroom" emergency stop button - Fig. 2/e.
- handwheel connection for manual operation - Fig. 2/f.
- man-machine interface display (optional) - Fig. 2/g.
- display setting keypad (optional) - Fig. 2/h.
- motor - Fig. 3/a.
- transmission components - Fig. 3/b (units with gra-
dient < 20°).
- electric system - Fig. 3/c.
Track - Fig. 4
Comprises:
- Rail - Fig. 4/a.
- Wall mounts - Fig. 4/b.
- Busbar - Fig. 4/c.
- Step feet (optional) - Fig. 4/d.
