18) CHECKING THE POSITION OF THE FINAL LIMIT
SWITCH CAM AND PLATES

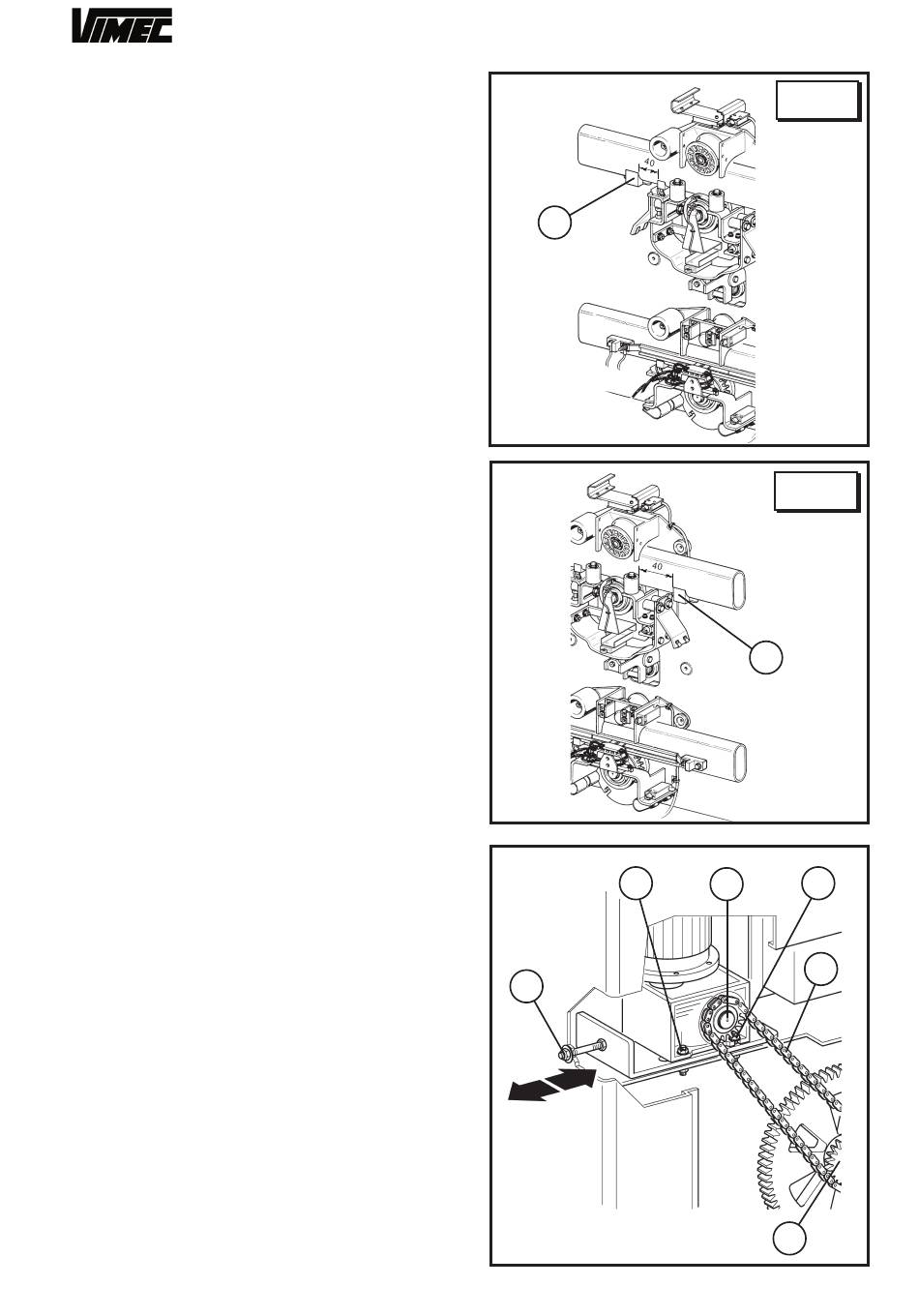

Before final testing of the lift, check that the limit stop
(Fig. 58/a-59/a) is correctly positioned.
This position is correct if the dimensions are as shown
in the drawings in Fig. 58 and 59.

19) STRETCHING THE CHAIN

Stretch the chain (Fig. 60/b) by undoing the nuts (Fig. 60/
e) and screwing down the hexagon (Fig. 60/ a).
Take care not to apply excessive tension, as this will
mean too much strain on the drive shafts (Fig. 60/c
and Fig. 60/d). Tighten the nuts (Fig. 60/e) firmly
when done.

20) FINAL TESTING

Power up the lift and perform the following func-
tional tests:
- Load capacity test:
- Load the lift with 1.1 times the rated working load
stated against "working load" on the dataplate.
- Send the lift up and down several times, checking its
stability on the rail.
- Final testing for lifts with sections of rail having
gradient of less than 20°:
- Move the lift to the area with gradient of more than
25° and check that the cam tripping roller is 0.5÷1.5
mm from the cam (see Fig. 62).
- If the roller has to be moved towards or away from
the cam, remove the bracket (Fig. 65/a) and turn the
clutch wheel hub (Fig. 65/b) using the spanner pro-
vided (Fig. 65/c). After adjustment (30 daN/m) fit the
bracket (Fig. 65/a) and fix the two screws (Fig. 65/d)
with 243.
- Then move the lift to the area with gradient of less than
20°, and place a weight of 250 kg on it with its centre
of gravity 150 mm from the edge (see Fig. 61).
- Check that the lift does not tilt by more than 2°.
- Preliminary Checks
- Perform the checks described in section 6.1 (Page 8)
of the User Manual.
- Testing the safety gear
- Test the safety gear as described in Section 10.1 point
"d" of the User Manual. (This test must be performed
with no load on the lift).
- Checking the interlocking of the platform with
independent or retractable arms (manual plat-
form)
- Check that as long as the descent side arm is in the
rest position the platform remains locked, whether in
the working or the rest position.
FIG.58
a
FIG.59
FIG.60
e
a
37
7602040
HIGH
LEVEL
LOW
LEVEL
a
e
c
b
d
