17) FITTING THE FINAL LIMIT SWITCH CAMS

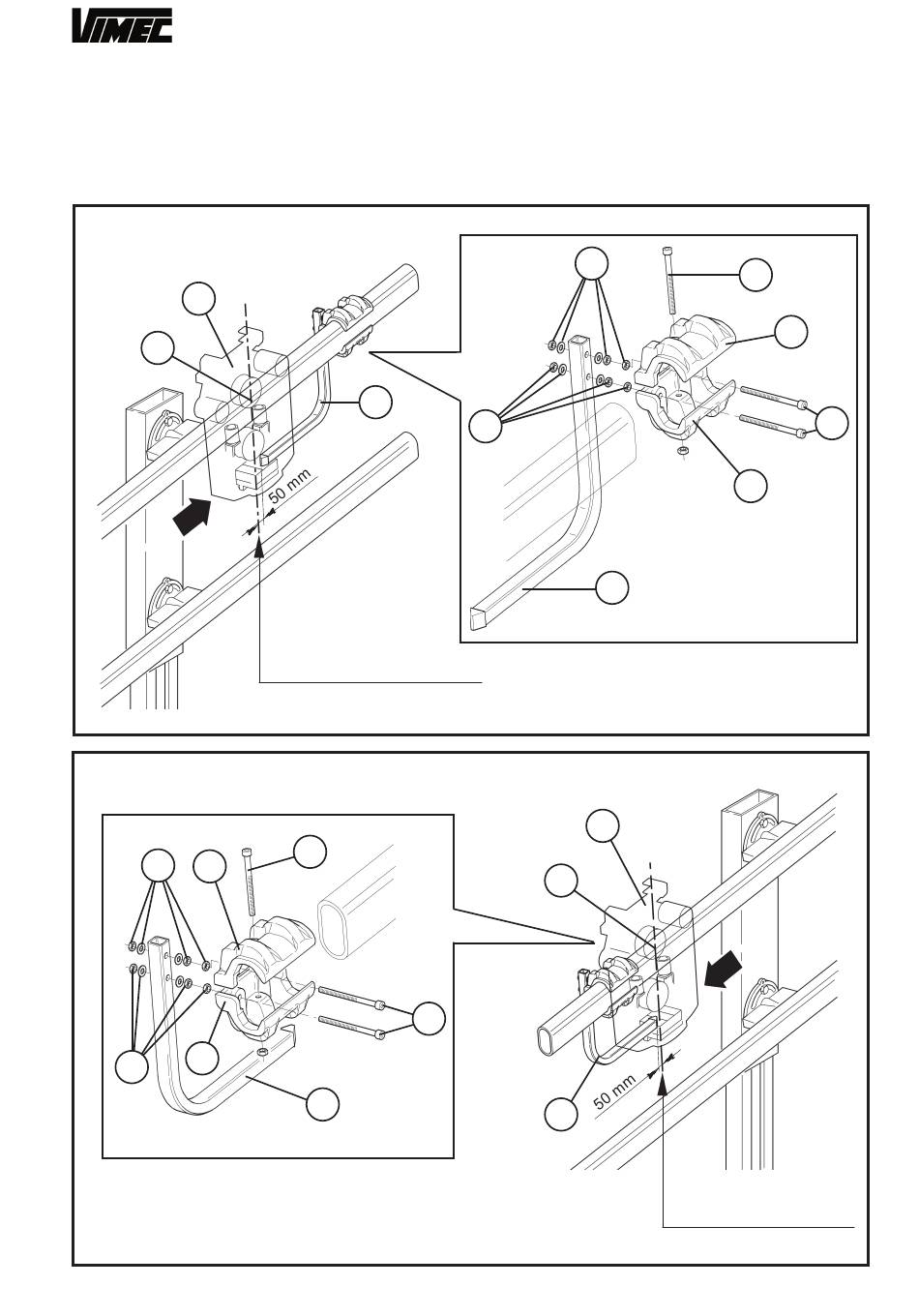

- Set the stairlift in the stop position (Fig. 56/a - 57/a)
and mark the position of the lift's centre-line on the
rails (Fig. 56/b - 57/b).
- Move the lift.
FIG. 56
a
b
FIG. 57
c
d
d
c
e
Machine centre line axis
c
c
e
- Fix the cam (Fig. 56/c - 57/c) on the rail 50 mm from
the lift's centre-line marked earlier.
- Tighten all screws when done.
