2) INSTALLING THE LOWER RAIL

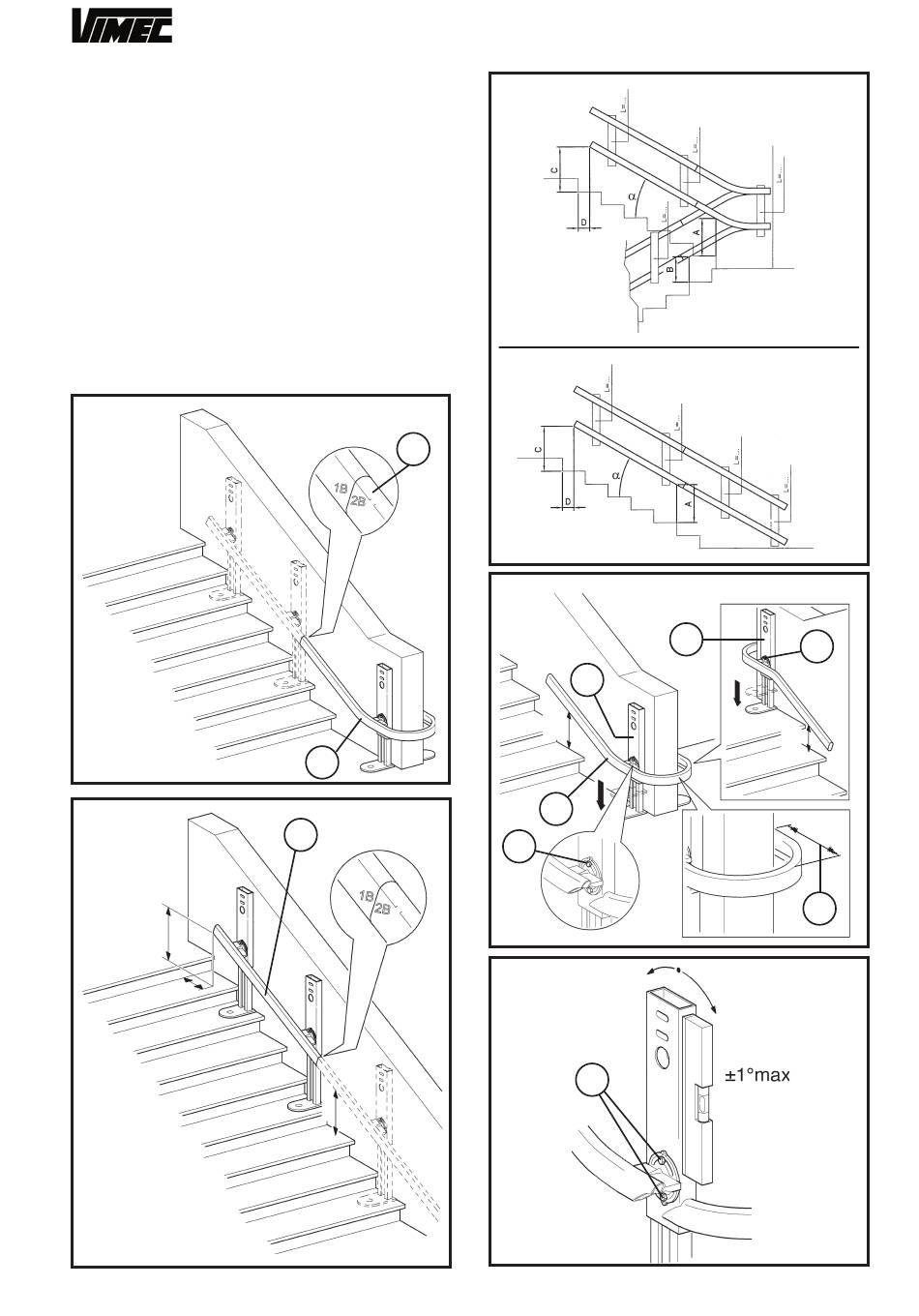

- Use the assembly markings (Fig. 3/b) to identify the
first section of rail, with the bend (Fig. 3/a) starting
from the top floor.
N.B.: If there are no bends, find the first straight section
(Fig. 4/a) starting from the top.
- Place the bend in the installation point (Fig. 6/c).
- Referring to the dimensions shown in the installation
drawing (example Fig. 5) extract the feet and lock
them lightly in position with just one screw (Fig. 6/a)
for each connection device (Fig. 6/d).
N.B.: First connect up all sections; only fix the feet
afterwards.
N.B.: Make sure that the outer edge of the rail is 160
mm (Fig. 6/b) from the banister or dividing wall.
FIG.3
FIG.4
C
D
b
a
a
A
18
FIG.5
FIG.6
d
d
A
c
a
FIG.7
a
7602040
a
B
160
b
