Unify OpenScape Cordless IP V2 Administrator Documentation page 37

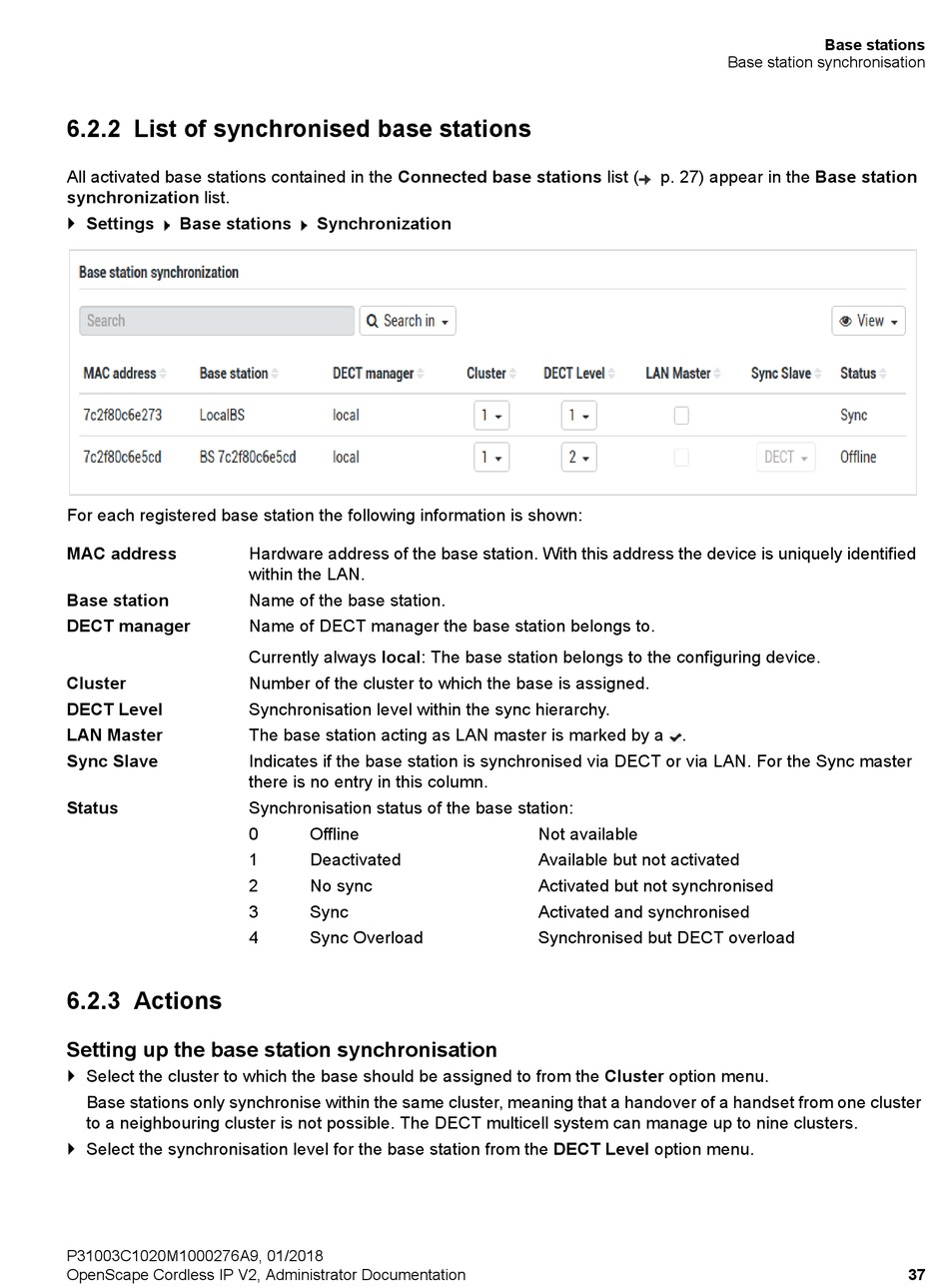

6.2.2 List of synchronised base stations
All activated base stations contained in the Connected base stations list (
synchronization list.
 Settings Base stations
For each registered base station the following information is shown:
MAC address
Base station
DECT manager
Cluster
DECT Level
LAN Master
Sync Slave
Status
6.2.3 Actions
Setting up the base station synchronisation
 Select the cluster to which the base should be assigned to from the Cluster option menu.
Base stations only synchronise within the same cluster, meaning that a handover of a handset from one cluster
to a neighbouring cluster is not possible. The DECT multicell system can manage up to nine clusters.
 Select the synchronisation level for the base station from the DECT Level option menu.
P31003C1020M1000276A9, 01/2018
OpenScape Cordless IP V2, Administrator Documentation
Synchronization
Hardware address of the base station. With this address the device is uniquely identified
within the LAN.
Name of the base station.
Name of DECT manager the base station belongs to.
Currently always local: The base station belongs to the configuring device.
Number of the cluster to which the base is assigned.
Synchronisation level within the sync hierarchy.
The base station acting as LAN master is marked by a .
Indicates if the base station is synchronised via DECT or via LAN. For the Sync master
there is no entry in this column.
Synchronisation status of the base station:
0 Offline
1 Deactivated
2 No sync
3 Sync
4 Sync Overload
p. 27) appear in the Base station
Not available
Available but not activated
Activated but not synchronised
Activated and synchronised
Synchronised but DECT overload
Base stations
Base station synchronisation
37
