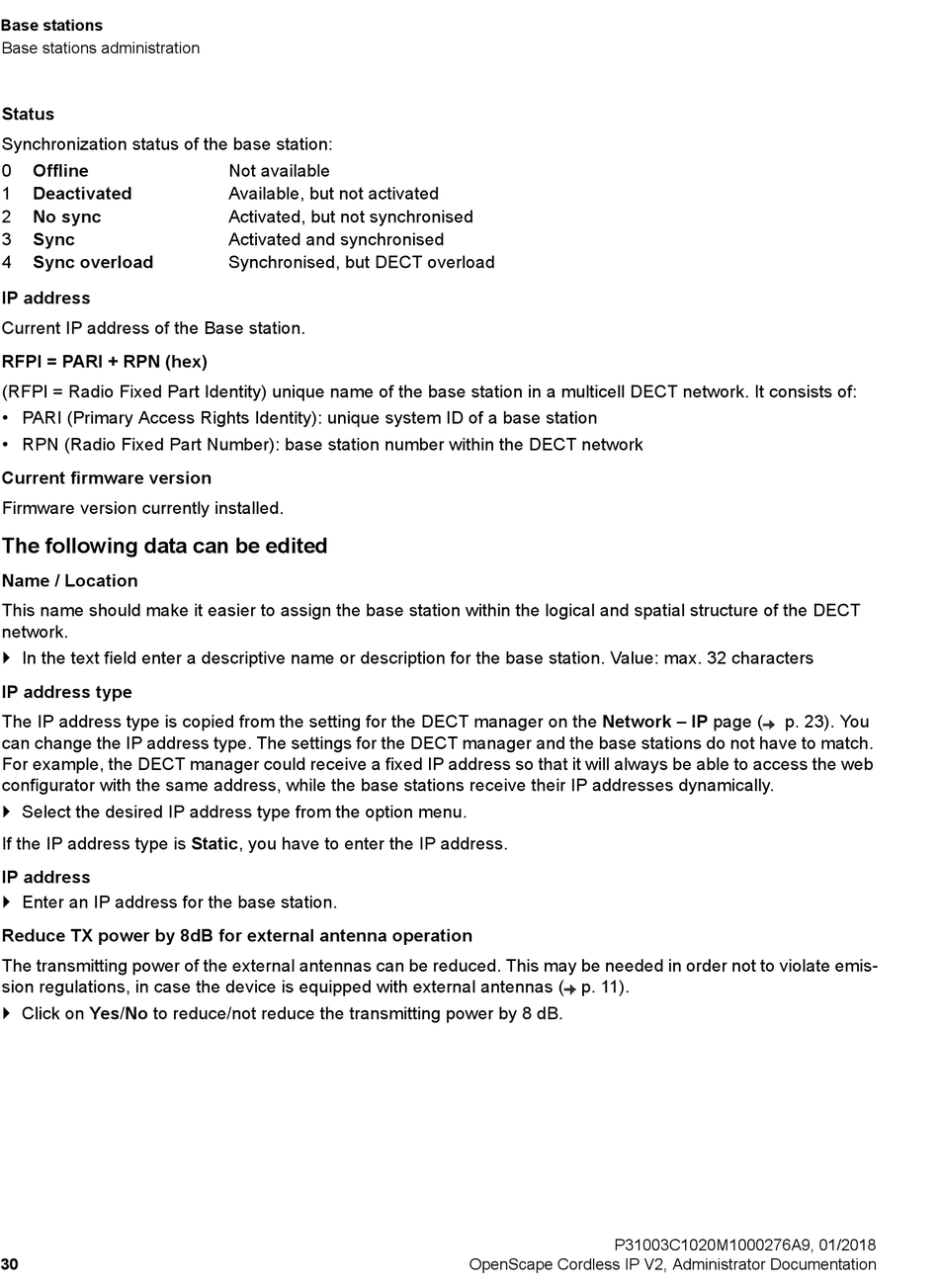

Base stations
Base stations administration
Status
Synchronization status of the base station:
0
Offline
1
Deactivated
2
No sync
3
Sync
4
Sync overload
IP address
Current IP address of the Base station.
RFPI = PARI + RPN (hex)
(RFPI = Radio Fixed Part Identity) unique name of the base station in a multicell DECT network. It consists of:
• PARI (Primary Access Rights Identity): unique system ID of a base station
• RPN (Radio Fixed Part Number): base station number within the DECT network
Current firmware version
Firmware version currently installed.
The following data can be edited
Name / Location
This name should make it easier to assign the base station within the logical and spatial structure of the DECT
network.
In the text field enter a descriptive name or description for the base station. Value: max. 32 characters
IP address type
The IP address type is copied from the setting for the DECT manager on the Network – IP page (
can change the IP address type. The settings for the DECT manager and the base stations do not have to match.
For example, the DECT manager could receive a fixed IP address so that it will always be able to access the web
configurator with the same address, while the base stations receive their IP addresses dynamically.
Select the desired IP address type from the option menu.
If the IP address type is Static, you have to enter the IP address.
IP address
Enter an IP address for the base station.
Reduce TX power by 8dB for external antenna operation
The transmitting power of the external antennas can be reduced. This may be needed in order not to violate emis-
sion regulations, in case the device is equipped with external antennas ( p. 11).
Click on Yes/No to reduce/not reduce the transmitting power by 8 dB.
30
Not available
Available, but not activated
Activated, but not synchronised
Activated and synchronised
Synchronised, but DECT overload
P31003C1020M1000276A9, 01/2018
OpenScape Cordless IP V2, Administrator Documentation
p. 23). You
