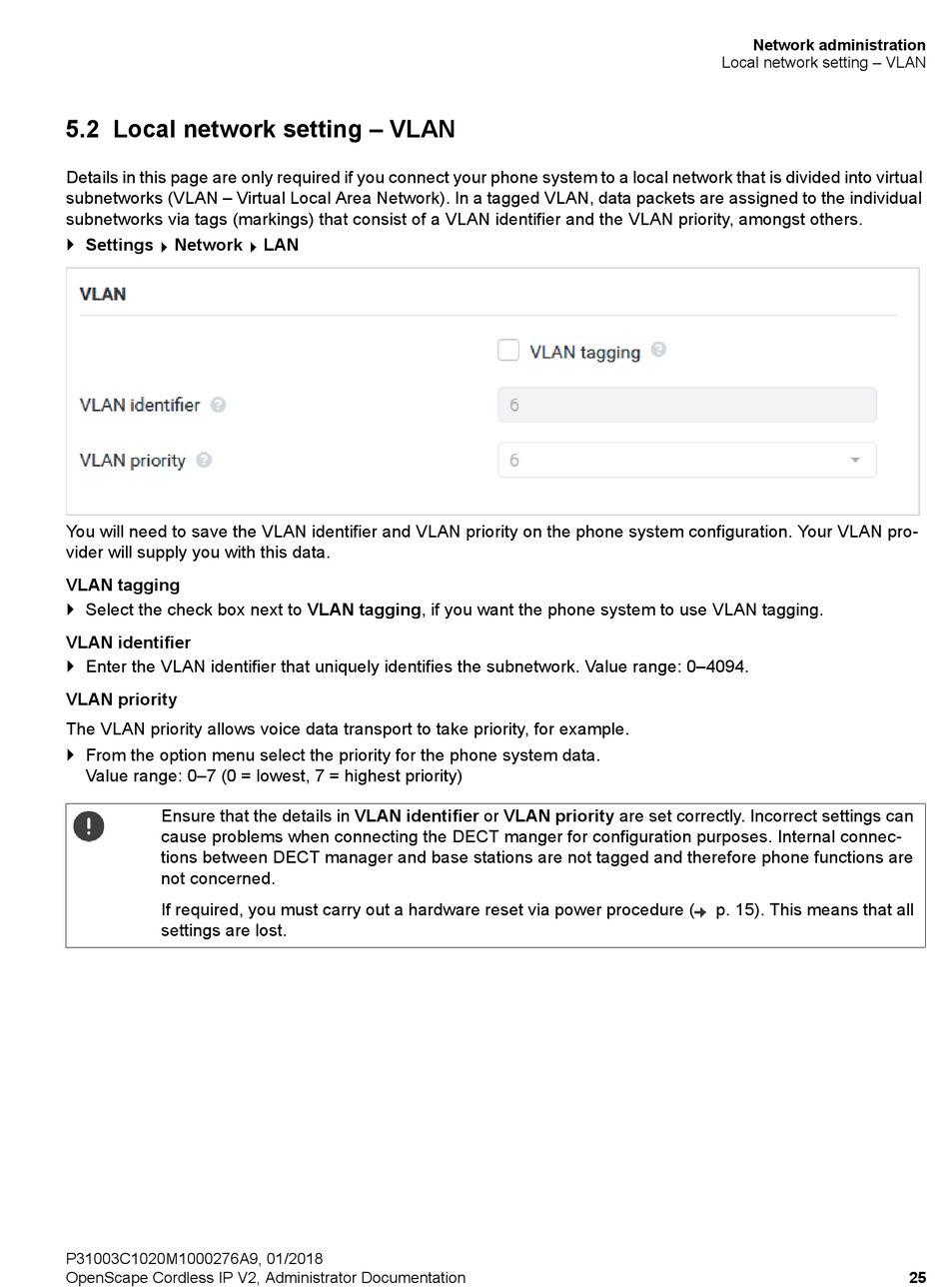

5.2 Local network setting – VLAN
Details in this page are only required if you connect your phone system to a local network that is divided into virtual
subnetworks (VLAN – Virtual Local Area Network). In a tagged VLAN, data packets are assigned to the individual
subnetworks via tags (markings) that consist of a VLAN identifier and the VLAN priority, amongst others.
 Settings Network
You will need to save the VLAN identifier and VLAN priority on the phone system configuration. Your VLAN pro-
vider will supply you with this data.
VLAN tagging
 Select the check box next to VLAN tagging, if you want the phone system to use VLAN tagging.
VLAN identifier
 Enter the VLAN identifier that uniquely identifies the subnetwork. Value range: 0–4094.
VLAN priority
The VLAN priority allows voice data transport to take priority, for example.
 From the option menu select the priority for the phone system data. 
Value range: 0–7 (0 = lowest, 7 = highest priority)
Ensure that the details in VLAN identifier or VLAN priority are set correctly. Incorrect settings can
cause problems when connecting the DECT manger for configuration purposes. Internal connec-
tions between DECT manager and base stations are not tagged and therefore phone functions are
not concerned.
If required, you must carry out a hardware reset via power procedure (
settings are lost.
P31003C1020M1000276A9, 01/2018
OpenScape Cordless IP V2, Administrator Documentation
LAN
Network administration
Local network setting – VLAN
p. 15). This means that all
