DA-660-8/16-LX
Quick Installation Guide
Third Edition, April 2009
1. Overview

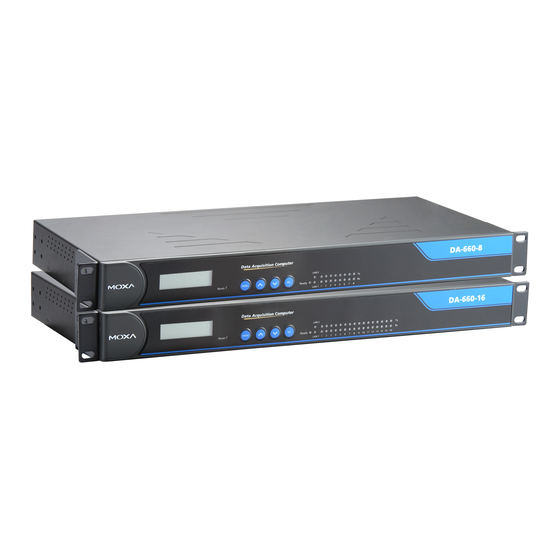

DA-660 products are RISC-based ready-to-run embedded computers
designed for industrial data acquisition applications. They feature 8 or 16
RS-232/422/485 serial ports and dual Ethernet ports based on the Intel
XScale IXP422 communication processor. The casing is a standard 1U,
19-inch wide rack-mounted rugged enclosure. This robust,
rack-mountable mechanism design provides the hardened protection
needed for industrial environment applications, and lets users easily
install DA-660 on a standard 19-inch rack. Using DA-660 products, you
can easily build a control system with distributed architecture for
embedded technologies, such as SCADA systems, plant floor automation,
and power electricity monitoring applications.
2. Package Checklist
Before installing DA-660, verify that the package contains the following
items:
1 DA-660
19-inch Rackmount Kit
DA-660 Quick Installation Guide (this guide)
DA-660 Document & Software CD
Cross-over Ethernet cable
CBL-RJ45M9-150: 150 cm, 8-pin RJ45 to DB9 (M) serial port cable
CBL-RJ45F9-150: 150 cm, 8-pin RJ45 to DB9 (F) console port cable
Power Cord
Product Warranty Booklet
Notify your sales representative if any of the above items are missing or
damaged.

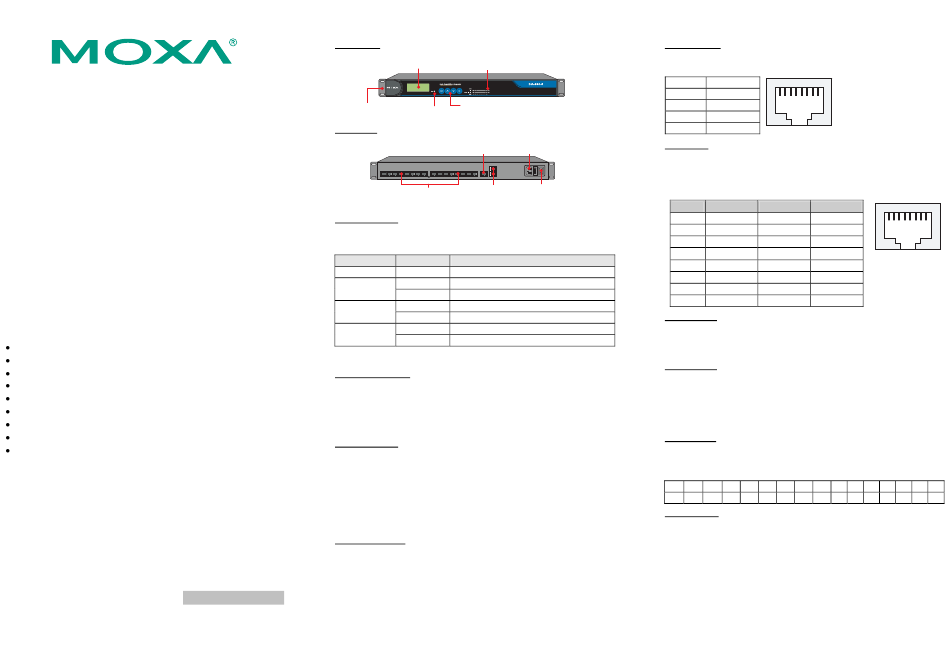

3. DA-660 Panel Layout
NOTE: Two models of DA-660 are available. DA-660-16 has 16
RS-232/422/485 serial ports and DA-660-8 has 8 RS-232/422/485 serial
ports.
P/N: 1802006600012
— 1 —
Front View
LED Indicators
LCM Display Panel
System Status, LAN, Serial Tx/Rx
Push Buttons
19-inch Rackmount Ear
Reset Button
Rear View
100-240 VAC/VDC
RS-232 Console Port
LAN2
RS-232/422/485
1 2 3 4 5 6 7 8 9 1 0 11 1 2 1 3 1 4 1 5 1 6 Console
LAN1
RS-232/422/485 Serial Ports x 8 (or 16) 10/100 Mbps Ethernet
RJ45, 50 bps to 921.6 Kbps RJ45 x 2
LED Indicators
The following LED indicators are located on the front panel of the
DA-660.
LED Name LED Color LED Function
Ready Green Power is on and functioning normally.
Orange 10 Mbps Ethernet connection
LAN1-2
Green 100 Mbps Ethernet connection
Green Serial port 1-16 is transmitting data.
P1-P16 (Tx)
Off Serial port 1-16 is not transmitting data.
Orange Serial port 1-16 is receiving data.
P1-P16 (Rx)
Off Serial port 1-16 is not receiving data.
4. Installing Your DA-660
Desktop Mounting
Place your DA-660 on a clean, flat, well-ventilated desktop. For better
ventilation, attach the 4 pads from the desktop kit to the bottom of the
unit, and leave some space between the DA-660 and other equipment. Do
not place equipment or objects on top of the unit, as this can cause
damage to the product.
Rack Mounting.
DA-660 can be mounted on a standard 19-inch rack. Use the enclosed
pair of L-shaped metal plates and screws to fasten your DA-660 to the
rack cabinet. There are two options to do this. You can lock either the
front or the rear panel of the DA-660 to the front side of the rack. Each
L-shaped plate has 6 holes, leaving two outer or inner holes open for your
convenience.
5. Connecting Your
Power Connector
Connect the 100-240 VAC/VDC power line to DA-660's power
connector. If the power is properly supplied, the Ready LED on the front
panel will glow a solid green when the OS is ready.
— 2 —
Ethernet Port
The two 10/100 Mbps Ethernet ports (LAN 1 and LAN 2) use RJ45
connectors.
Pin
1
2
3
6
Power Input
Serial Port
There are eight serial ports (P1 to P8) on DA-660-8 and 16 ports on
Power Input
DA-660-16. All serial ports use RJ45 connectors. Each port can be
configured by software as type RS-232, RS-422, or RS-485. The pin
100-240 VAC/VDC
ON/OFF Switch
assignments are shown in the following table:
Pin
1
2
3
4
5
6
7
8
Console Port
The console port is an RJ45 RS-232 port. It can be connected to a V90 or
GPRS modem via PPP. The pin definitions are the same as for the serial
ports.
Reset Button
Press the "Reset" button on the front panel continuously for at least 5
seconds to load the factory default configuration. After the factory default
configuration has been loaded, the system will reboot automatically. The
Ready LED will blink for the first 5 seconds, and then maintain a steady
glow once the system has rebooted.
LCM Screen
DA-660 has an LCM screen on the front panel. The LCM can display 16
columns and 2 rows of text. After the DA-660 successfully boots up, the
LCM will display the model name and firmware version as shown:
D A
V E
Push Buttons
There are four push buttons on the DA-660's front panel. These buttons
are used to operate the LCM. Going from left to right, the buttons are:
Signal
ETx+
1 8
ETx-
ERx+
ERx-
RS-232 RS-422 RS-485
DSR --- ---
1
RTS TXD+ ---
GND GND GND
TXD TXD- ---
RXD RXD+ Data+
DCD RXD- Data-
CTS --- ---
DTR --- ---
- 6 6 0 - 1 6
R . 1 . 0
— 3—
