Moxa Technologies ThinkCore DA-660-8 Quick Installation Manual

ThinkCore DA-660-8/16-LX
Quick Installation Guide
First Edition, May 2006
1. Overview

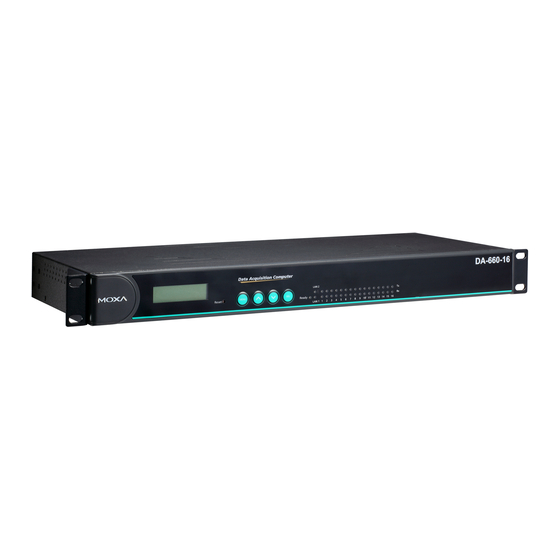

ThinkCore DA-660 products are RISC-based ready-to-run embedded
computers designed for industrial data acquisition applications. They
feature 8 or 16 RS-232/422/485 serial ports and dual Ethernet ports based
on the Intel XScale IXP-422 communication processor. The casing is a
standard 1U, 19-inch wide rack-mounted rugged enclosure. This robust,
rack-mountable mechanism design provides the hardened protection
needed for industrial environment applications, and lets users easily
install DA-660 on a standard 19-inch rack. Using ThinkCore DA-660
products, you can easily build a control system with distributed
architecture for embedded technologies, such as SCADA systems, plant
floor automation, and power electricity monitoring applications.
2. Package Checklist
Before installing ThinkCore DA-660, verify that the package contains the
following items:
1 ThinkCore DA-660
19-inch Rackmount Kit
ThinkCore DA-660 Quick Installation Guide (this guide)
ThinkCore DA-660 Document & Software CD
Cross-over Ethernet cable
CBL-RJ45M9-150: 150 cm, 8-pin RJ45 to DB9 (M) serial port cable
CBL-RJ45F9-150: 150 cm, 8-pin RJ45 to DB9 (F) console port cable
Power Cord
Product Warranty Booklet
Notify your sales representative if any of the above items are missing or
damaged.
3. ThinkCore DA-660 Panel Layout
NOTE: Two models of ThinkCore DA-660 are available. DA-660-16 has
16 RS-232/422/485 serial ports and DA-660-8 has 8 RS-232/422/485
serial ports.
P/N: 1802006600000
— 1 —
Front View
LCM Display Panel
19-inch
Rackmount Ear
LED Indicators (System Status, LAN, Serial Tx/Rx)
Reset Button Push Buttons
Rear View
RS-232 Console Port
RS-232/422/485
RS-232/422/485
9 10 11 12 13 14 15 16
1 2 3 4 5 6 7 8
Serial Ports
RJ45, 50 to 921.6 Kbps
10/100 Mbps Ethernet x 2 (RJ45)
LED Indicators
The following LED indicators are located on the front panel of the
ThinkCore DA-660.
LED Name LED Color LED Function
Ready Green Power is on and functioning normally.
Orange 10 Mbps Ethernet connection
LAN1-2
Green 100 Mbps Ethernet connection
Green Serial port 1-16 is transmitting data.
P1-P16 (Tx)
Off Serial port 1-16 is not transmitting data.
Orange Serial port 1-16 is receiving data.
P1-P16 (Rx)
Off Serial port 1-16 is not receiving data.
4. Installing Your ThinkCore DA-660
Desktop Mounting
Place your ThinkCore DA-660 on a clean, flat, well-ventilated desktop.
For better ventilation, attach the 4 pads from the desktop kit to the bottom
of the unit, and leave some space between the DA-660 and other
equipment. Do not place equipment or objects on top of the unit, as this
can cause damage to the product.
Rack Mounting.
ThinkCore DA-660 can be mounted on a standard 19-inch rack. Use the
enclosed pair of L-shaped metal plates and screws to fasten your DA-660
to the rack cabinet. There are two options to do this. You can lock either
the front or the rear panel of the DA-660 to the front side of the rack.
Each L-shaped plate has 6 holes, leaving two outer or inner holes open
for your convenience.
5. Connecting Your ThinkCore
Power Connector
Connect the 100-240 VAC/VDC power line to ThinkCore DA-660's
power connector. If the power is properly supplied, the Ready LED on
the front panel will glow a solid green when the OS is ready.
— 2 —
Ethernet Port
The two 10/100 Mbps Ethernet ports (LAN 1 and LAN 2) use RJ45
connectors.
Pin
1
2
3
6
Power Input (100-240 VAC/VDC)
Serial Port
Power Input
LAN2
Console
There are eight serial ports (P1 to P8) on DA-660-8 and 16 ports on
100-240 VAC/VDC
LAN1
DA-660-16. All serial ports use RJ45 connectors. Each port can be
ON/OFF Switch
configured by software as type RS-232, RS-422, or RS-485. The pin
assignments are shown in the following table:
Pin
1
2
3
4
5
6
7
8
Console Port
The console port is an RJ45 RS-232 port. It can be connected to a V90 or
GPRS modem via PPP. The pin definitions are the same as for the serial
ports.
Reset Button
Press the "Reset" button on the front panel continuously for at least 5
seconds to load the factory default configuration. After the factory default
configuration has been loaded, the system will reboot automatically. The
Ready LED will blink for the first 5 seconds, and then maintain a steady
glow once the system has rebooted.
LCM Screen
ThinkCore DA-660 has an LCM screen on the front panel. The LCM can
display 16 columns and 2 rows of text. After the DA-660 successfully
boots up, the LCM will display the model name and firmware version as
shown:
D A
V E
Push Buttons
There are four push buttons on the ThinkCore DA-660's front panel.
These buttons are used to operate the LCM. Going from left to right, the
buttons are:
Signal
ETx+
1 8
ETx-
ERx+
ERx-
RS-232 RS-422 RS-485
DSR --- ---
RTS TXD+ ---
1
GND GND GND
TXD TXD- ---
RXD RXD+ Data+
DCD RXD- Data-
CTS --- ---
DTR --- ---
- 6 6 0 - 1 6
R . 1 . 0
— 3—
8
