Operation

Operation
Connect the display/output devices through the signal output socket, see operating instructions
Chap. 4.6, before connecting the device to the power supply and switching on the power sup-
ply.
The measuring system is delivered calibrated. Calibration by the user is not necessary.
i
Allow the measuring system to warm up for about 10 minutes before the first measurement.
The power supply may not exceed or continuously fall below the specified limits.
> Damage to or destruction of the sensor and/or controller
0xF00000
0x0

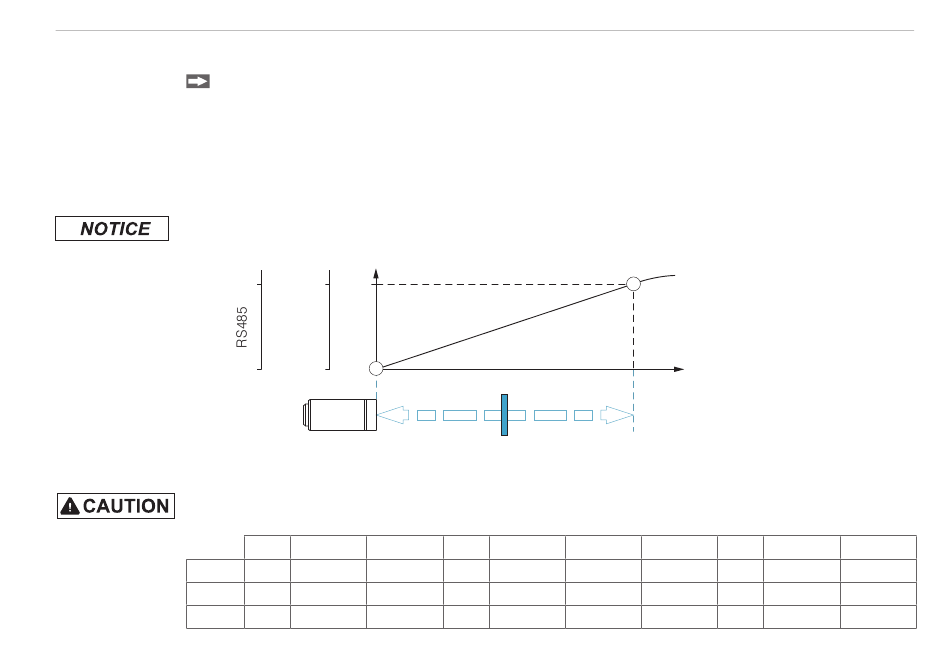

Output characteristic controller
Disconnect the power supply before touching the sensor surface.
> Static discharge, danger of injury
0 ... 10 V
4 ... 20 mA
RS485
capaNCDT 6110 / 6112 / 6120
20 mA 10 V
1
4 mA 0 V 0 %
Sensor
DT6110 DT6110/ECL2 DT6110/IP/U DT6112 DT6112/ECL2 DT6110/IP/I
x x x
2
Measuring range (MR)
Target
x x
x
Displacement, mm
1 = Start of
100 %
measuring range
2 = End of
measuring range
DT6120/IP/I DT6120 DT6120/ECL2 DT6120/IP/U
x x
x
x x x
x
x
