MICRO-EPSILON capaNCDT 6110 Quick Manual page 11

Commissioning
Power Supply, Display/Output Device DT6120
PIN Color
SCAC3/6
1 white
2 gray
3 pink RS485_A RS485 interface
4 green
5 brown
6 blue RS485_B RS485 interface
Shield
SCAC3/6 is a 3 m long, pre-assembled power supply and output cable.
1) Current output with DT6120/IP/I
capaNCDT 6110 / 6112 / 6120
Signal Description
+24 V +24 V power supply
GND Supply ground
Analog ground
AGND
(for signal output)
Signal output
U-out
1
(load, min 10 kOhm)
Cable shield, housing
2
6
3
View on solder pin side,
6-pin. female cable
connector

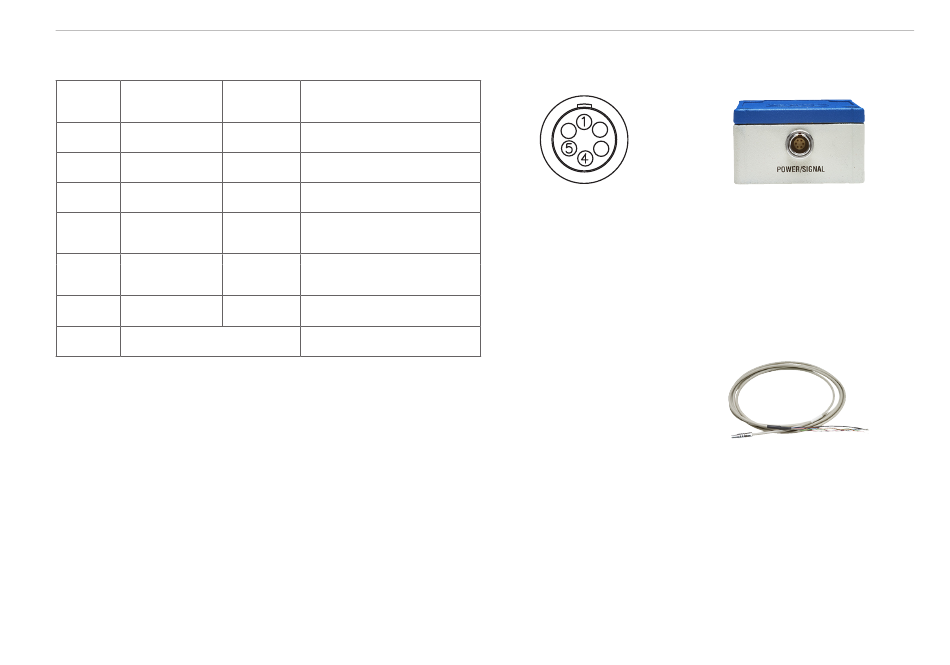

Connection power supply
SCAC3/6 power supply and
output cable
Page 11
