Module Reset; Hard Reset - Directed XpressKit DBALL Manual

Platform: DBALL/DBALL2
Firmware: FORD5 Range Extender Ready (RXT) Installation

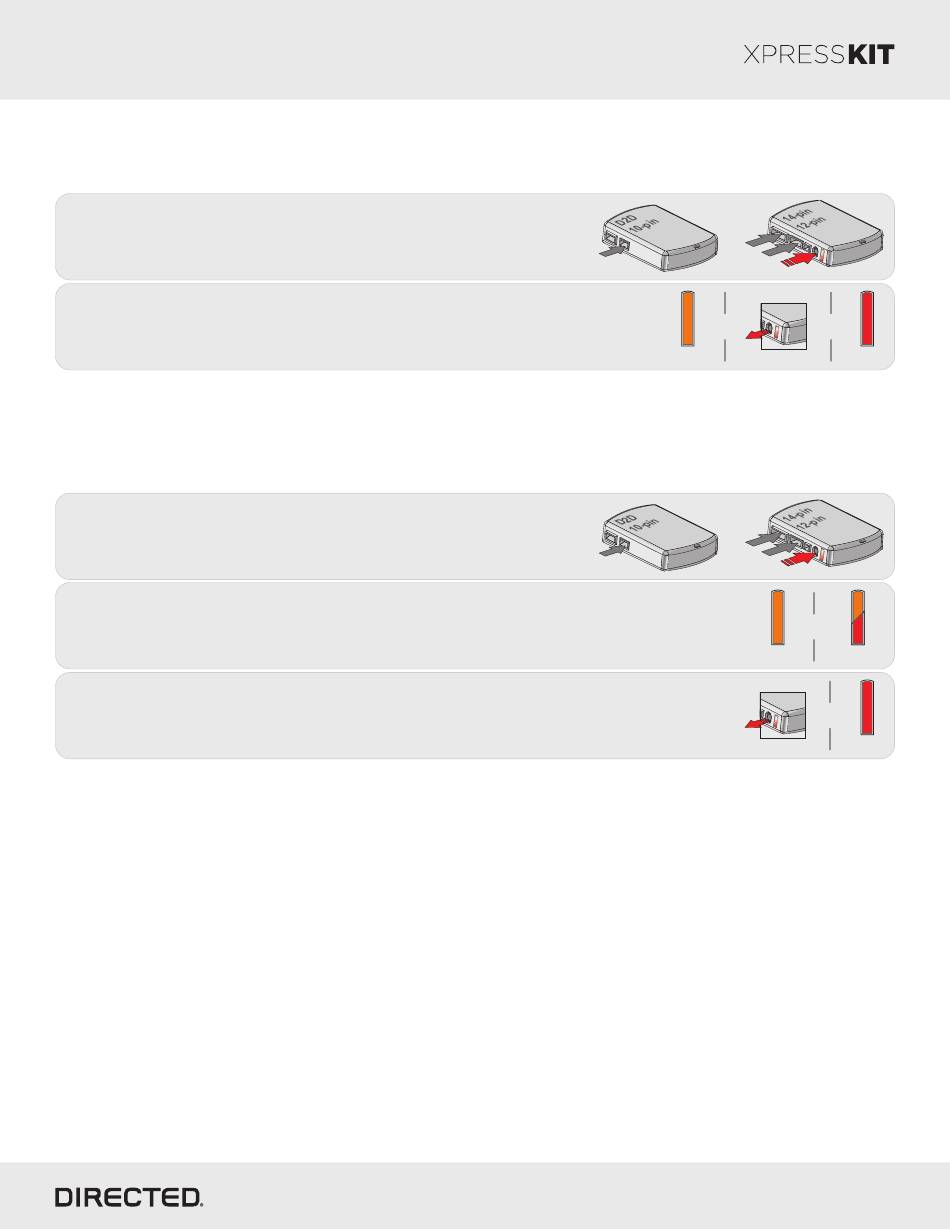

Module Reset

A module reset will only erase programming performed in the previous steps. All settings (firmware) and settings flashed
to the module using the web config tool will not be affected.
If required for your installation, connect the 10-pin & 12-pin
1
harnesses to the module. Press and hold the programming
button, then connect the 14-pin harness to the module.
Wait 3 seconds until the LED turns ON solid orange then release the
2
programming button. The LED turns ON solid red.

Hard Reset

Warning Against Executing a Hard Reset!
A hard reset will revert the flashed firmware back to its default settings. Depending on the installation, some settings (such
as RFTD and D2D options) may have to be reconfigured. See the Feature & Option List section of this guide.
If required for your installation, connect the 10-pin & 12-pin
1
harnesses to the module. Press and hold the programming
button, then connect the 14-pin harness to the module.
Wait 3 seconds until the LED turns ON solid orange, and wait 10 more seconds
2
until the LED starts to flash orange and red.
3
Release the programming button. The LED turns ON solid red.
th
4
nd
st 2
1
&
Solid Release
th
4
nd
st
2
1
Solid
Release
© 2016 Directed. All rights reserved.
Rev.: 20160317
Page 7
rd
3
&
Solid
rd
3
&
Flashes
&
Solid
