Platform: DBALL2
Firmware: MIT4
Update Alert: Firmware updates are posted on the web on a regular basis. We recommend
that you check for firmware and/or install guide updates prior to installing this product.
Installation Guide

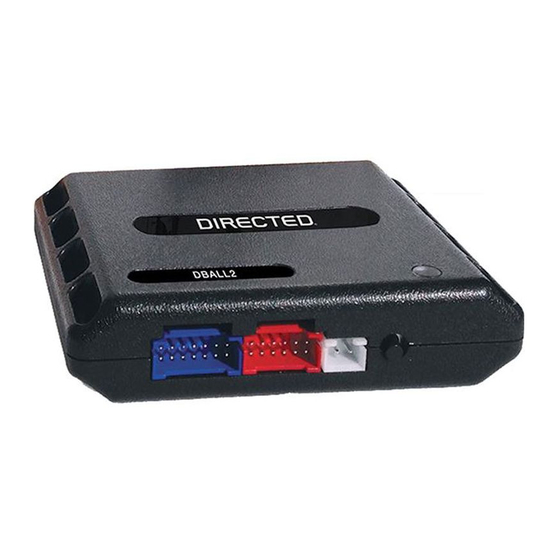

Door lock and transponder interface for many of the latest models of Mitsubishi vehicles. Features
include tach output, and FOB control.
Index
Vehicle Application Guide................................................................................................................................................
Type 1..............................................................................................................................................................................
Wiring Reference Chart - Type 1.....................................................................................................................................
Locating Components in the Vehicle -Type 1..................................................................................................................
Type 2..............................................................................................................................................................................
Wiring Reference Chart - Type 2.....................................................................................................................................
Locating Components in the Vehicle -Type 2..................................................................................................................
Type 3..............................................................................................................................................................................
Wiring Reference Chart - Type 3.....................................................................................................................................
Locating Components in the Vehicle -Type 3..................................................................................................................
Type 4..............................................................................................................................................................................
Wiring Reference Chart - Type 4.....................................................................................................................................
Locating Components in the Vehicle -Type 4..................................................................................................................
Programming
Module Programming......................................................................................................................................................
Feature and Option List...................................................................................................................................................
Feature Programming......................................................................................................................................................
LED Diagnostics and Troubleshooting............................................................................................................................
Limited One Year Consumer Warranty............................................................................................................................
Quick Reference Guide...................................................................................................................................................
® Mitsubishi is a registered trademark and property of its respective company.
Rev.: 20150814
02
03
04
05
06
07
08
09
10
11
12
13
14
16
17
18
18
19
20
21
