LEDS:

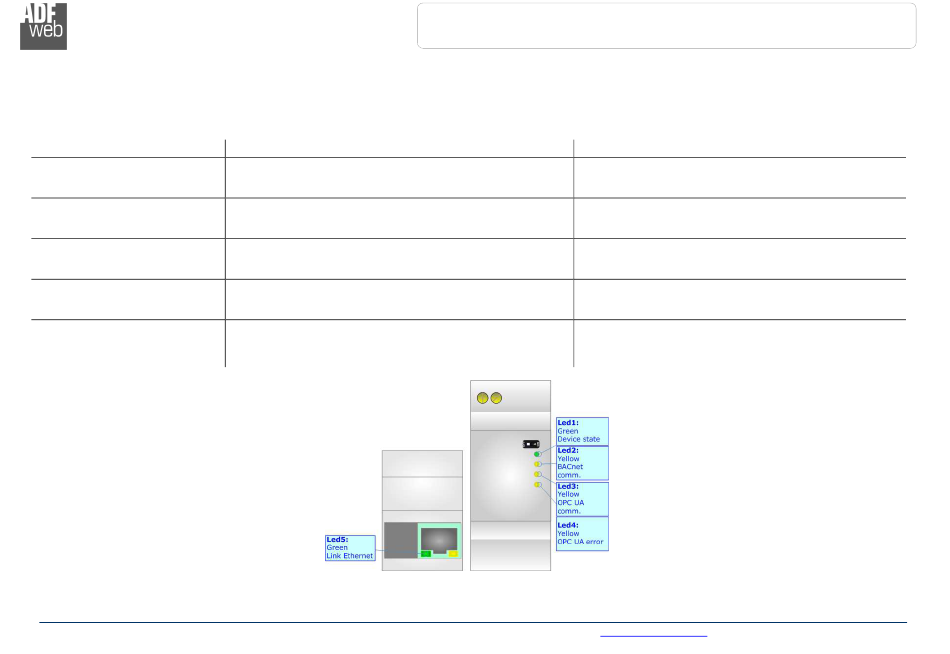

The device has got five LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: Device State (green)
2: BACnet comm. (yellow)
3: OPC UA comm. (yellow)
4: OPC UA error (yellow)
5: Link Ethernet (green)
ADFweb.com Srl – IT31010 – Mareno – Treviso
Normal Mode
Blinks slowly (~1Hz)
Flashing: BACnet response
OFF: No BACnet response
Flashing: OPC UA request
OFF: No OPC UA request
ON: An error has occurred
OFF: The device is correctly running
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
User Manual OPC UA Server / BACnet Master
Document code: MN67B31_ENG
Revision 1.000
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
INFO:
www.adfweb.com
Page 10 of 30
