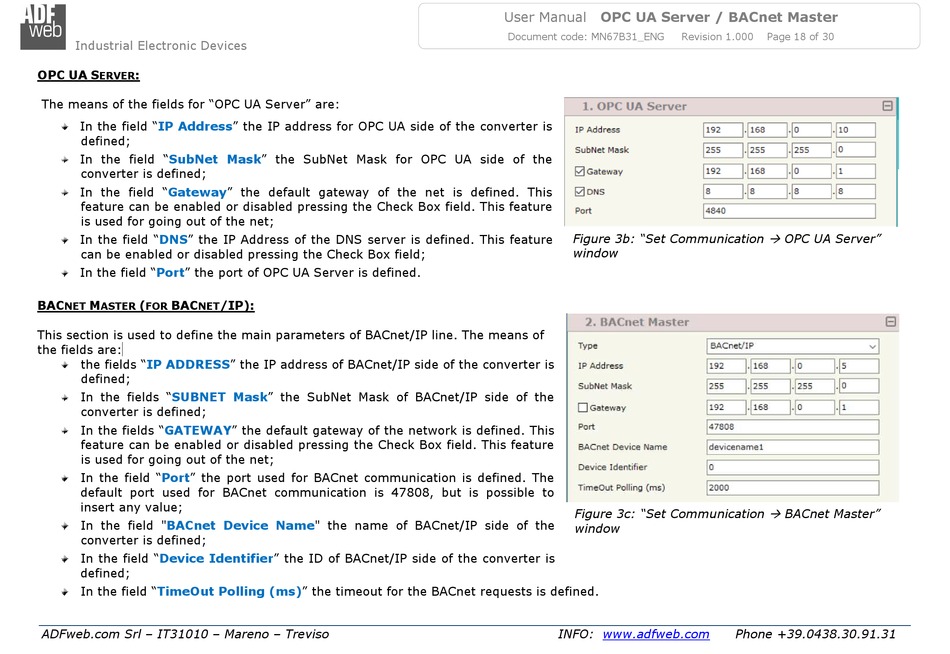

ADF Web HD67B31 Series User Manual page 18

Industrial Electronic Devices
OPC UA S :
ERVER
The means of the fields for "OPC UA Server" are:
In the field "IP Address" the IP address for OPC UA side of the converter is
defined;
In the field "SubNet
converter is defined;
In the field "Gateway" the default gateway of the net is defined. This
feature can be enabled or disabled pressing the Check Box field. This feature
is used for going out of the net;
In the field "DNS" the IP Address of the DNS server is defined. This feature
can be enabled or disabled pressing the Check Box field;
In the field "Port" the port of OPC UA Server is defined.
BAC M ( BAC
NET ASTER FOR NET
This section is used to define the main parameters of BACnet/IP line. The means of
the fields are:
the fields "IP ADDRESS" the IP address of BACnet/IP side of the converter is
defined;
In the fields "SUBNET
converter is defined;
In the fields "GATEWAY" the default gateway of the network is defined. This
feature can be enabled or disabled pressing the Check Box field. This feature
is used for going out of the net;
In the field "Port" the port used for BACnet communication is defined. The
default port used for BACnet communication is 47808, but is possible to
insert any value;
In the field "BACnet Device
converter is defined;
In the field "Device Identifier" the ID of BACnet/IP side of the converter is
defined;
In the field "TimeOut Polling
ADFweb.com Srl – IT31010 – Mareno – Treviso
Mask" the SubNet Mask for OPC UA side of the
/IP):
Mask" the SubNet Mask of BACnet/IP side of the
Name" the name of BACnet/IP side of the
(ms)" the timeout for the BACnet requests is defined.
User Manual OPC UA Server / BACnet Master
Document code: MN67B31_ENG Revision 1.000
Figure 3b: "Set Communication
window
Figure 3c: "Set Communication
window
