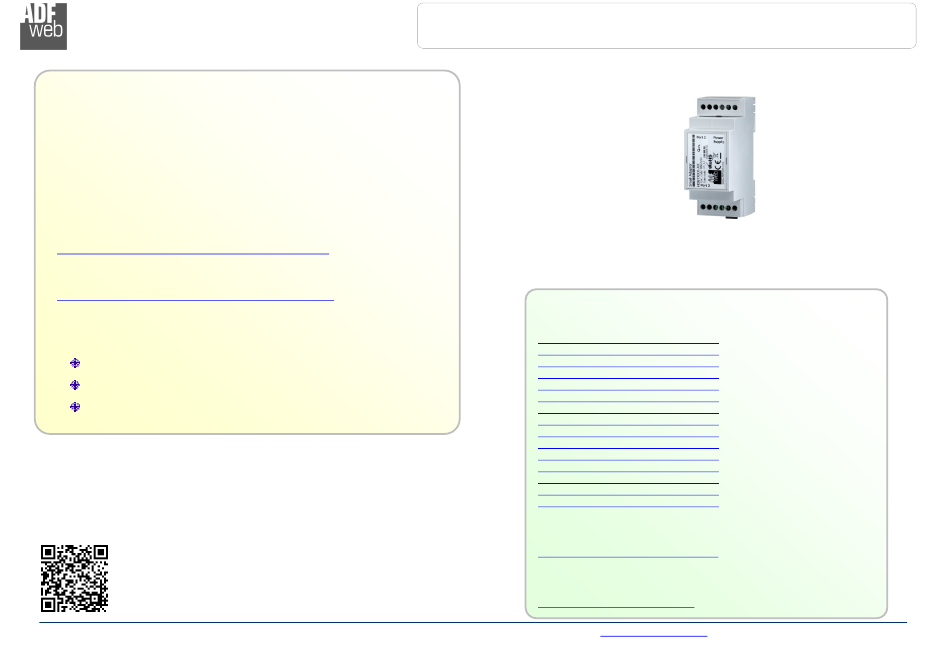

Industrial Electronic Devices
User Manual
Revision 1.002
English
OPC UA Client / Modbus TCP Slave -
Converter

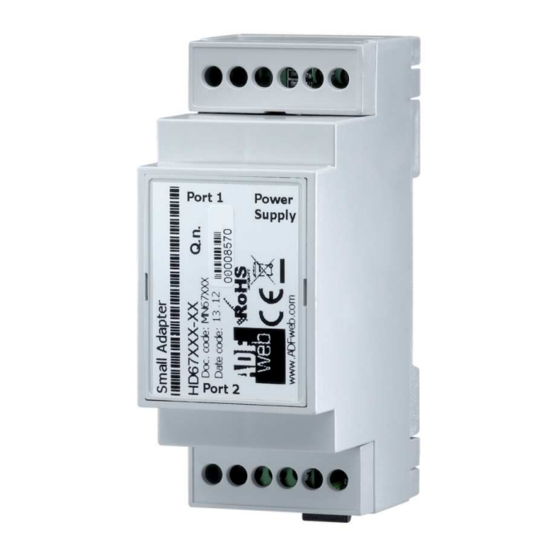

(Order Code: HD67B10-B2)
for Website information:
http://www.adfweb.com/?Product=HD67B10
for Price information:
http://www.adfweb.com/?Price=HD67B10-B2
Benefits and Main Features:
Triple electrical isolation
Power Supply 18...35V DC and 8...24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual OPC UA Client / Modbus TCP Slave
Document code: MN67B10_ENG
For others OPC UA Client devices, see also the following links:
OPC UA Client from/to ...
www.adfweb.com?Product=HD67B08
www.adfweb.com?Product=HD67B09
www.adfweb.com?Product=HD67B11
www.adfweb.com?Product=HD67B12
www.adfweb.com?Product=HD67B13
www.adfweb.com?Product=HD67B14
www.adfweb.com?Product=HD67B15
www.adfweb.com?Product=HD67B16
www.adfweb.com?Product=HD67B17
www.adfweb.com?Product=HD67B18
www.adfweb.com?Product=HD67B19
www.adfweb.com?Product=HD67B20
www.adfweb.com?Product=HD67B21
www.adfweb.com?Product=HD67B22
www.adfweb.com?Product=HD67B23
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Revision 1.002
Page 1 of 28
(Serial)
(Modbus Slave)
(Bacnet Slave)
(CAN)
(CANopen)
(DeviceNet Slave)
(DMX)
(EtherNet/IP Slave)
(J1939)
(KNX)
(MQTT)
(NMEA0183)
(NMEA2000)
(PROFINET)
(SNMP Agent)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Related Manuals for ADF Web HD67B10-B2
Summary of Contents for ADF Web HD67B10-B2
- Page 1 Industrial Electronic Devices User Manual Revision 1.002 English OPC UA Client / Modbus TCP Slave - Converter (Order Code: HD67B10-B2) for Website information: http://www.adfweb.com/?Product=HD67B10 for Price information: http://www.adfweb.com/?Price=HD67B10-B2 For others OPC UA Client devices, see also the following links: OPC UA Client from/to …...
-
Page 2: Table Of Contents
User Manual OPC UA Client / Modbus TCP Slave Document code: MN67B10_ENG Revision 1.002 Page 2 of 28 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you that you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual OPC UA Client / Modbus TCP Slave Document code: MN67B10_ENG Revision 1.002 Page 3 of 28 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual OPC UA Client / Modbus TCP Slave Document code: MN67B10_ENG Revision 1.002 Page 4 of 28 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual OPC UA Client / Modbus TCP Slave Document code: MN67B10_ENG Revision 1.002 Page 5 of 28 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67B10-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 6: Characteristics
Page 6 of 28 Industrial Electronic Devices CHARACTERISTICS: The HD67B10-B2 is a OPC UA Client / Modbus TCP Slave converter. It allows the following characteristics: Up to 1500 bytes in reading and 1500 bytes in writing; Two-directional information between Modbus TCP and OPC UA;... -
Page 7: Power Supply
POWER SUPPLY: The devices can be powered between a wide range of tensions. For more details see the two tables below. Vmin Vmax Vmin Vmax HD67B10-B2 Consumption at 24V DC: Device W/VA HD67B10-B2 Caution: Not reverse the polarity power HD67B10-B2 ADFweb.com Srl –... -
Page 8: Function Modes
User Manual OPC UA Client / Modbus TCP Slave Document code: MN67B10_ENG Revision 1.002 Page 8 of 28 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’: The first, with Dip1 in Off position (factory setting), is used for the normal working of the device. -
Page 9: Leds
User Manual OPC UA Client / Modbus TCP Slave Document code: MN67B10_ENG Revision 1.002 Page 9 of 28 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state... -
Page 10: Ethernet
ETHERNET: The Ethernet connection must be made using Connector3 of HD67B10-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross cable. -
Page 11: Use Of Compositor Sw67B10
User Manual OPC UA Client / Modbus TCP Slave Document code: MN67B10_ENG Revision 1.002 Page 11 of 28 Industrial Electronic Devices USE OF COMPOSITOR SW67B10: To configure the Converter, use the available software that runs with Windows called SW67B10. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 12: New Project / Open Project
User Manual OPC UA Client / Modbus TCP Slave Document code: MN67B10_ENG Revision 1.002 Page 12 of 28 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “OPC UA Client / Modbus TCP Slave - Converter”... -
Page 13: Software Options
User Manual OPC UA Client / Modbus TCP Slave Document code: MN67B10_ENG Revision 1.002 Page 13 of 28 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. In the section “Language”... - Page 14 User Manual OPC UA Client / Modbus TCP Slave Document code: MN67B10_ENG Revision 1.002 Page 14 of 28 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
-
Page 15: Set Communication
User Manual OPC UA Client / Modbus TCP Slave Document code: MN67B10_ENG Revision 1.002 Page 15 of 28 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, OPC UA Client and Modbus TCP. By Pressing the “Set Communication”... -
Page 16: Opc Ua Access
User Manual OPC UA Client / Modbus TCP Slave Document code: MN67B10_ENG Revision 1.002 Page 16 of 28 Industrial Electronic Devices OPC UA ACCESS: By Pressing the “OPC UA Client Access” button from the main window for SW67B10 (Fig. 2) the window “OPC UA Client Access” appears (Fig. - Page 17 User Manual OPC UA Client / Modbus TCP Slave Document code: MN67B10_ENG Revision 1.002 Page 17 of 28 Industrial Electronic Devices By clicking on “Add”, it is possible to add a new OPC UA Server inserting its characteristics (Server Address, Authorization, Security Type…). The window “Add OPC UA Server”...
- Page 18 User Manual OPC UA Client / Modbus TCP Slave Document code: MN67B10_ENG Revision 1.002 Page 18 of 28 Industrial Electronic Devices By clicking on “Scan”, it is possible to get the list of available variables from the selected Server. The window “Scan Server OPC UA” appears (Fig.
- Page 19 User Manual OPC UA Client / Modbus TCP Slave Document code: MN67B10_ENG Revision 1.002 Page 19 of 28 Industrial Electronic Devices After the scan, the selected variables will appear in “Variables in Read” and/or “Variables in Write” sections, in the lower part of the window “OPC UA Client Access”...
- Page 20 User Manual OPC UA Client / Modbus TCP Slave Document code: MN67B10_ENG Revision 1.002 Page 20 of 28 Industrial Electronic Devices The “Variables in Write” section is used to define the OPC UA variables to which map the data of Modbus TCP Slave (Fig. 9). Figure 9: “Variables in Write”...
- Page 21 User Manual OPC UA Client / Modbus TCP Slave Document code: MN67B10_ENG Revision 1.002 Page 21 of 28 Industrial Electronic Devices In the field “Position” the starting byte of the internal memory arrays where getting the value is defined; In the field “Mnemonic” a description of the variable is defined. Note: By clicking on “Auto...
-
Page 22: Update Device
User Manual OPC UA Client / Modbus TCP Slave Document code: MN67B10_ENG Revision 1.002 Page 22 of 28 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. - Page 23 User Manual OPC UA Client / Modbus TCP Slave Document code: MN67B10_ENG Revision 1.002 Page 23 of 28 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67B10 device. Warning: If Fig.
-
Page 24: Modbus Map
User Manual OPC UA Client / Modbus TCP Slave Document code: MN67B10_ENG Revision 1.002 Page 24 of 28 Industrial Electronic Devices MODBUS MAP: On Modbus side, the map is created automatically. Data in reading: Type Address Function Description Input Bytes (Position) 0-1 of internal array Input Register Input Bytes (Position) 2-3 of internal array Input Register... -
Page 25: Mechanical Dimensions
User Manual OPC UA Client / Modbus TCP Slave Document code: MN67B10_ENG Revision 1.002 Page 25 of 28 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 12: Mechanical dimensions scheme for HD67B10-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 26: Ordering Informations
Enclosure Type B: Modulbox 4M, 35mm DIN Rail mounting Device Family HD67B10: OPC UA Client / Modbus TCP Slave - Converter Order Code: HD67B10-B2 OPC UA Client / Modbus TCP Slave - Converter ACCESSORIES: Order Code: AC34011 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V DC Order Code: AC34012 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –... -
Page 27: Disclaimer
User Manual OPC UA Client / Modbus TCP Slave Document code: MN67B10_ENG Revision 1.002 Page 27 of 28 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 28: Warranties And Technical Support
User Manual OPC UA Client / Modbus TCP Slave Document code: MN67B10_ENG Revision 1.002 Page 28 of 28 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
