Industrial Electronic Devices
User Manual
Revision 1.000
English
OPC UA Server / Modbus TCP Slave -
Converter
(Order Code: HD67B30-B2)
for Website information:
http://www.adfweb.com/?Product=HD67B30
for Price information:
http://www.adfweb.com/?Price=HD67B30-B2
Benefits and Main Features:
Triple electrical isolation
Power Supply 18...35V DC and 8...24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual OPC UA Server / Modbus TCP Slave
Document code: MN67B30_ENG
For others OPC UA Server devices, see also the following links:
OPC UA Server from/to ...
www.adfweb.com?Product=HD67B26
www.adfweb.com?Product=HD67B27
www.adfweb.com?Product=HD67B28
www.adfweb.com?Product=HD67B29
www.adfweb.com?Product=HD67B31
www.adfweb.com?Product=HD67B32
www.adfweb.com?Product=HD67B33
www.adfweb.com?Product=HD67B34
www.adfweb.com?Product=HD67B35
www.adfweb.com?Product=HD67B36
www.adfweb.com?Product=HD67B37
www.adfweb.com?Product=HD67B38
www.adfweb.com?Product=HD67B39
www.adfweb.com?Product=HD67B40
www.adfweb.com?Product=HD67B41
www.adfweb.com?Product=HD67B42
www.adfweb.com?Product=HD67B43
www.adfweb.com?Product=HD67B44
www.adfweb.com?Product=HD67B45
www.adfweb.com?Product=HD67B46
www.adfweb.com?Product=HD67B47
www.adfweb.com?Product=HD67B48
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Revision 1.000
Page 1 of 23
(Serial)
(Modbus Master)
(Modbus Slave)
(Modbus TCP Master)
(Bacnet Master)
(Bacnet Slave)
(CAN)
(CANopen)
(DeviceNet Master)
(DeviceNet Slave)
(DMX)
(EtherNet/IP Master)
(EtherNet/IP Slave)
(J1939)
(KNX)
(MQTT)
(NMEA0183)
(NMEA2000)
(PROFINET Master)
(PROFINET Slave)
(SNMP Manager)
(SNMP Agent)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Related Manuals for ADF Web HD67B30-B2
Summary of Contents for ADF Web HD67B30-B2

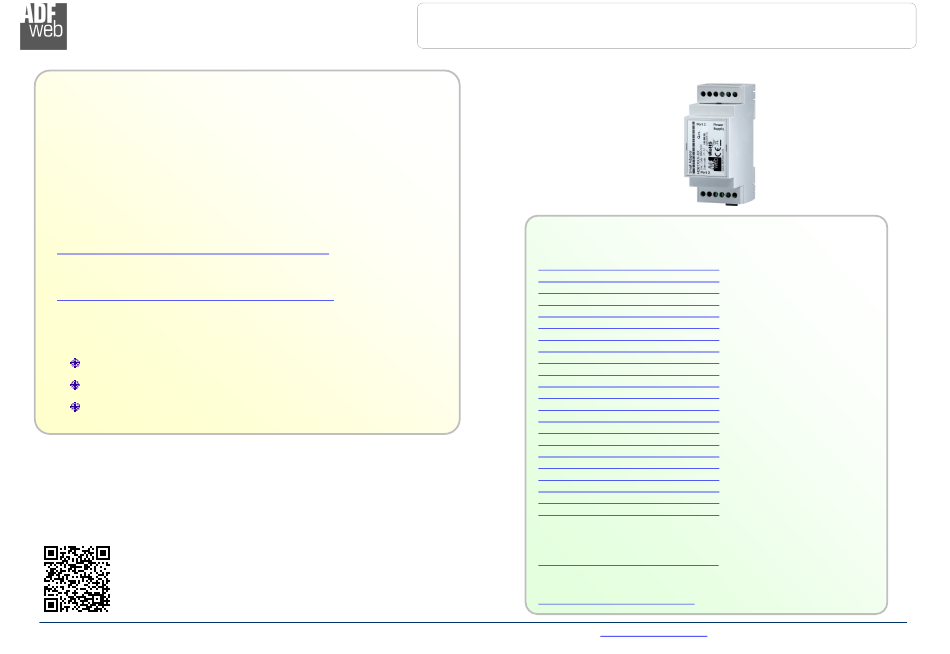

- Page 1 Industrial Electronic Devices User Manual Revision 1.000 English OPC UA Server / Modbus TCP Slave - Converter (Order Code: HD67B30-B2) For others OPC UA Server devices, see also the following links: for Website information: http://www.adfweb.com/?Product=HD67B30 OPC UA Server from/to … www.adfweb.com?Product=HD67B26 (Serial) www.adfweb.com?Product=HD67B27...
-
Page 2: Table Of Contents
User Manual OPC UA Server / Modbus TCP Slave Document code: MN67B30_ENG Revision 1.000 Page 2 of 23 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you that you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual OPC UA Server / Modbus TCP Slave Document code: MN67B30_ENG Revision 1.000 Page 3 of 23 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual OPC UA Server / Modbus TCP Slave Document code: MN67B30_ENG Revision 1.000 Page 4 of 23 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual OPC UA Server / Modbus TCP Slave Document code: MN67B30_ENG Revision 1.000 Page 5 of 23 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67B30-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 6: Characteristics
Page 6 of 23 Industrial Electronic Devices CHARACTERISTICS: The HD67B30-B2 is a OPC UA Server / Modbus TCP Slave converter. It allows the following characteristics: Up to 1500 bytes in reading and 1500 bytes in writing; Two-directional information between Modbus TCP and OPC UA;... -
Page 7: Power Supply
POWER SUPPLY: The devices can be powered between a wide range of tensions. For more details see the two tables below. Vmin Vmax Vmin Vmax HD67B30-B2 Consumption at 24V DC: Device W/VA HD67B30-B2 Caution: Not reverse the polarity power HD67B30-B2 ADFweb.com Srl –... -
Page 8: Function Modes
User Manual OPC UA Server / Modbus TCP Slave Document code: MN67B30_ENG Revision 1.000 Page 8 of 23 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’: The first, with Dip1 in Off position (factory setting), is used for the normal working of the device. -
Page 9: Leds
User Manual OPC UA Server / Modbus TCP Slave Document code: MN67B30_ENG Revision 1.000 Page 9 of 23 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state... -
Page 10: Ethernet
ETHERNET: The Ethernet connection must be made using Connector3 of HD67B30-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross cable. -
Page 11: Use Of Compositor Sw67B30
User Manual OPC UA Server / Modbus TCP Slave Document code: MN67B30_ENG Revision 1.000 Page 11 of 23 Industrial Electronic Devices USE OF COMPOSITOR SW67B30: To configure the Converter, use the available software that runs with Windows called SW67B30. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 12: New Configuration / Open Configuration
User Manual OPC UA Server / Modbus TCP Slave Document code: MN67B30_ENG Revision 1.000 Page 12 of 23 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “OPC UA Server / Modbus TCP Slave - Converter”... -
Page 13: Software Options
User Manual OPC UA Server / Modbus TCP Slave Document code: MN67B30_ENG Revision 1.000 Page 13 of 23 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. In the section “Language”... - Page 14 User Manual OPC UA Server / Modbus TCP Slave Document code: MN67B30_ENG Revision 1.000 Page 14 of 23 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
-
Page 15: Set Communication
User Manual OPC UA Server / Modbus TCP Slave Document code: MN67B30_ENG Revision 1.000 Page 15 of 23 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, OPC UA Server and Modbus TCP. By Pressing the “Set Communication”... -
Page 16: Opc Ua Access
User Manual OPC UA Server / Modbus TCP Slave Document code: MN67B30_ENG Revision 1.000 Page 16 of 23 Industrial Electronic Devices OPC UA ACCESS: By Pressing the “OPC UA Access” button from the main window for SW67B30 (Fig. 2) the window “OPC UA Server Access” appears (Fig. 4). This section is used to define the list of OPC UA variables to read/write. -
Page 17: Update Device
User Manual OPC UA Server / Modbus TCP Slave Document code: MN67B30_ENG Revision 1.000 Page 17 of 23 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. If you don’t know the actual IP address of the device you have to use this procedure: Turn OFF the Device;... - Page 18 User Manual OPC UA Server / Modbus TCP Slave Document code: MN67B30_ENG Revision 1.000 Page 18 of 23 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67B30 device. Warning: If Fig.
-
Page 19: Modbus Map
User Manual OPC UA Server / Modbus TCP Slave Document code: MN67B30_ENG Revision 1.000 Page 19 of 23 Industrial Electronic Devices MODBUS MAP: On Modbus side, the map is created automatically. Data in reading: Type Address Function Description Input Bytes (Position) 0-1 of internal array Input Register Input Bytes (Position) 2-3 of internal array Input Register... -
Page 20: Mechanical Dimensions
User Manual OPC UA Server / Modbus TCP Slave Document code: MN67B30_ENG Revision 1.000 Page 20 of 23 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 7: Mechanical dimensions scheme for HD67B30-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 21: Ordering Informations
Enclosure Type B: Modulbox 4M, 35mm DIN Rail mounting Device Family HD67B30: OPC UA Server / Modbus TCP Slave - Converter Order Code: HD67B30-B2 OPC UA Server / Modbus TCP Slave - Converter ACCESSORIES: Order Code: AC34011 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V DC Order Code: AC34012 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –... -
Page 22: Disclaimer
User Manual OPC UA Server / Modbus TCP Slave Document code: MN67B30_ENG Revision 1.000 Page 22 of 23 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 23: Warranties And Technical Support
User Manual OPC UA Server / Modbus TCP Slave Document code: MN67B30_ENG Revision 1.000 Page 23 of 23 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
