LEGEND PLUS SERIES
DESCRIPTION

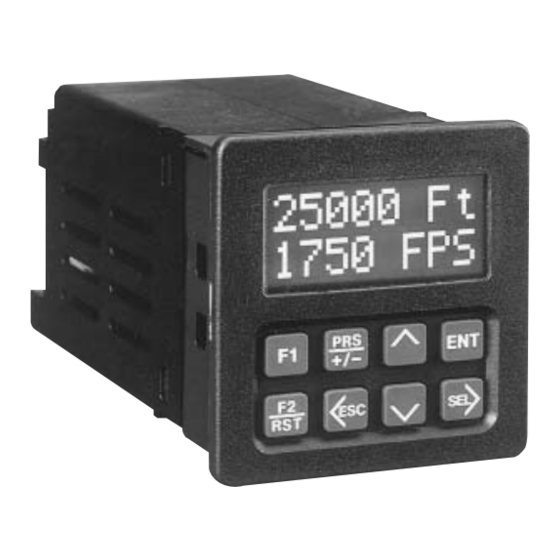

The Legend Plus Series consists of two models that are multi-input count and
rate indicators. The LGPB features process, batch, and total counting, as well
as a time interval rate indicator. The four available presets can be assigned to
the process counter or the rate indicator. Outputs three and four can also be
assigned to the batch or total indicator. The Legend Plus foot-inch counter
provides Process and Total count read-outs in feet and inches. A decimal point
is used to separate the foot and inch units. All Process and Total presets are also
displayed in feet and inches. The LGPM features six presets, which can be
assigned to either the rate or count display.
The Legend Plus has advanced features which allow the units to be more
closely coupled to the application. The units feature a 2 line by 8 character
alpha-numeric display, allowing the value mnemonics and programming menus
to be easily read. The units are available in single or dual color display models.
The four scroll-through indication displays can be programmed to show various
parameters and automatically scroll, if desired. On dual color models, each
indication display can be programmed for either color. The mnemonics
corresponding to the main display values (RATE, PROCESS, BATCH,
TOTAL) can be individually programmed and modified as desired. For
example, the RATE mnemonic can be reprogrammed to display the word
SPEED, so that when the rate mnemonic is to be displayed, the mnemonic
SPEED is displayed instead.
Two custom display lines are available which enable the user to specify the
number of digits of a value to be displayed on the line, along with any alpha-
numeric prefix or suffix. This capability allows displays such as: '1000 RPM',
'99999 Ft', 'PRC 9999', etc.
The Legend Plus also features messaging capabilities that can inform the
user of output actions or other events that occur in a system. Up to ten messages
can be programmed. Messages can be requested by an output status change,
user input(s), or through serial communications. The messages can be
programmed to blink, scroll, time out, and to alternately flash between message
and indication display.
On dual color models, the message can be programmed to be displayed in
either color. This capability is very useful in drawing the operator's attention to
particular messages.

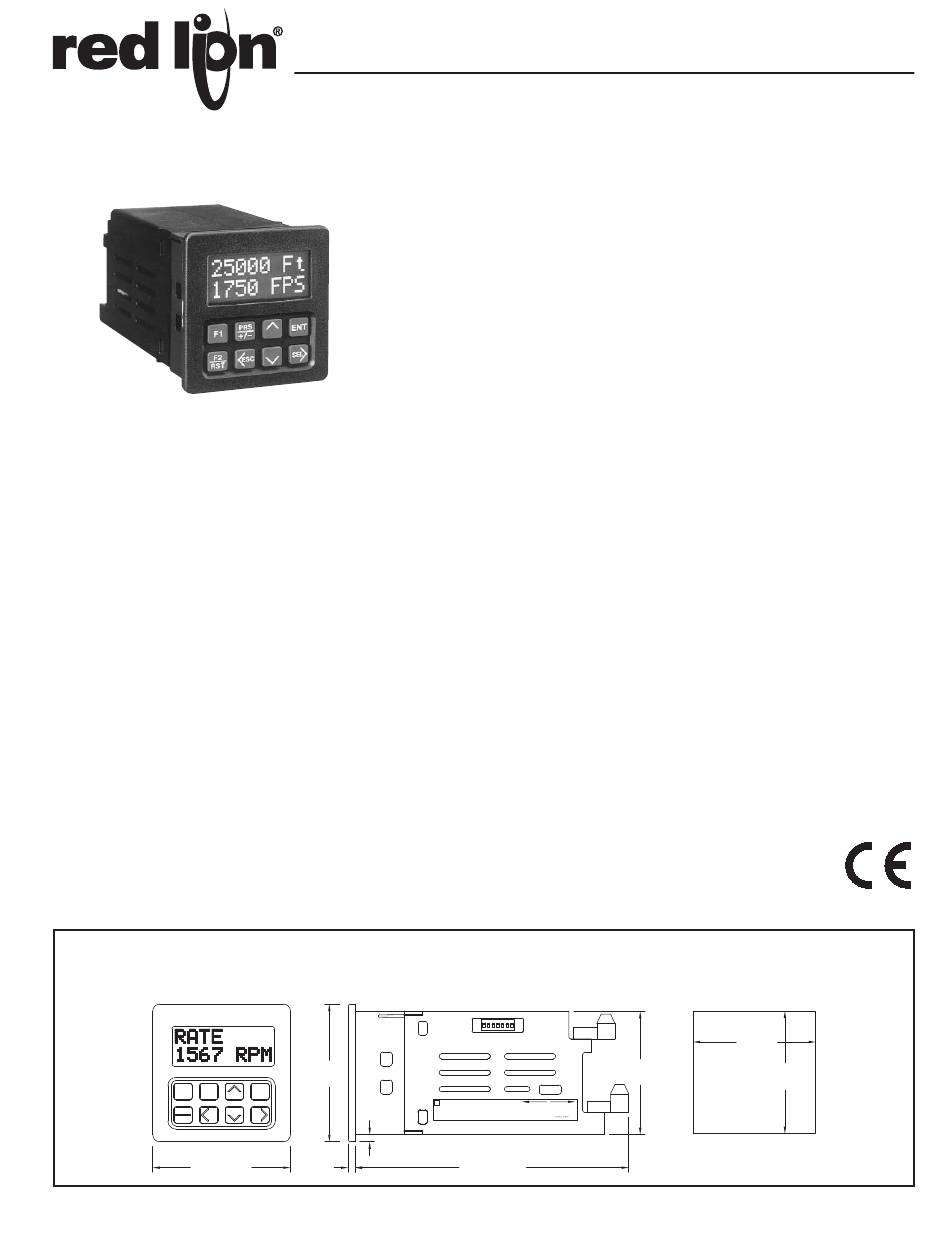

DIMENSIONS In inches (mm)
F1 PRS
F2
ESC
RST
2.95 (74.9)
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
MODEL LGPB - Four Preset Batch/Counter/Rate Indicator
MODEL LGPM - Six Preset Counter/Rate Indicator
MODEL LGPBF - Four Preset Foot-Inch Length Counter
Note: Recommended minimum clearance (behind the panel) for
mounting clip installation is 3.0" (76.2)H x 4.0" (101.6)W.
2.95
(74.9)
ENT
SEL
0.15 (3.8)
0.15
(3.8)
 2X8 TRANSMISSIVE LCD, NEGATIVE IMAGE, WITH L.E.D.

BACKLIGHTING
 PROGRAMMABLE DISPLAY INTENSITY

 OPTIONAL DUAL COLOR DISPLAY (Red and Green)

 FOUR USER PROGRAMMABLE INDICATION DISPLAYS WITH

CUSTOMIZABLE MNEMONICS AND DISPLAY LINES
 PROGRAMMABLE MESSAGE CAPABILITIES

 ENGLISH PROGRAMMING MENUS

 RS485 OR RS232 SERIAL COMMUNICATIONS

 OPTIONAL PROGRAMMING SOFTWARE FOR PROGRAMMING

MULTIPLE UNITS
 ABILITY TO LOCKOUT OPERATOR ACCESS TO PROGRAMMING

PARAMETERS
 PROGRAMMABLE CONTROL INPUTS

COUNT INPUTS ARE SWITCH SELECTABLE FOR VARIOUS


SENSOR OUTPUTS
 BI-DIRECTIONAL COUNTING, UP/DOWN CONTROL

 QUADRATURE SENSING (Up to 4 times resolution)

 COUNT INHIBIT TERMINAL AVAILABLE FOR ALL COUNT MODES

 ACCEPTS COUNT RATES UP TO 15 KHz

 ALL OUTPUT(S) ASSIGNABLE TO COUNT OR RATE

 ON & OFF DELAY FOR RATE OUTPUTS

 SOLID STATE CURRENT SINKING OUTPUT(S)

 RELAY OUTPUTS (LGPB only; Field Replaceable)

 SEPARATE INPUT SCALING FOR RATE, COUNT, & TOTAL

 115/230 VAC SWITCH SELECTABLE

 NEMA 4X/IP65 SEALED FRONT PANEL BEZEL

E CAUTION:
115 VAC 230 VAC
SELECT PROPER VOLTAGE
50/60 HZ, 10 VA
BEFORE APPLYING POWER
5.87 (149.1)
Bulletin No. LGPB/M-E
Drawing No. LP0328
Released 07/11
PANEL CUT-OUT
+.03
2.68
-.01
+.8
(68 )
-.3
2.64
2.68
(67.1)
(68)
