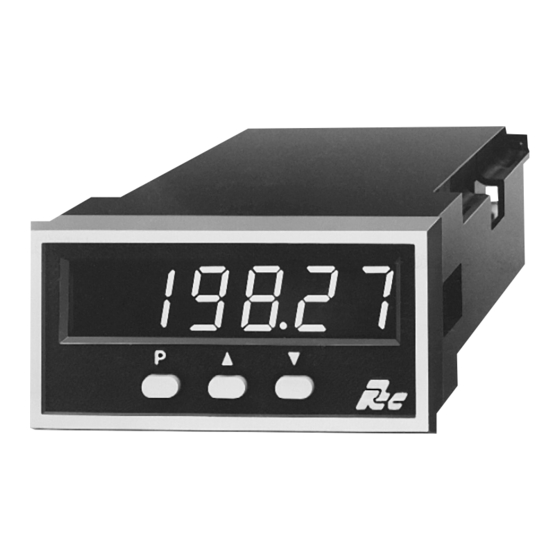

red lion IMP Instruction Manual

Intelligent meter series
Hide thumbs
Table of Contents

Advertisement

Quick Links

THE APOLLO INTELLIGENT METER SERIES
MODEL IMP INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for red lion IMP

Summary of Contents for red lion IMP

  • Page 1 THE APOLLO INTELLIGENT METER SERIES MODEL IMP INSTRUCTION MANUAL...
  • Page 2 INTRODUCTION The Intelligent Meter for Process Inputs (IMP) is another unit in our multi-purpose series of industrial control products that is field-programmable to solve multiple applications. This series of products is built around the concept that the end user has the capability to program different personalities and functions into the unit in order to adapt to different indication and control requirements.

  • Page 3: Table Of Contents

    III. PROGRAMMING AND OPERATING THE IMP ........
  • Page 4 -ii-...

  • Page 5: Safety Information

    If provided by the equipment may be impaired. Do not use the IMP to directly command motors valves, or other actuators not equipped with safeguards. To do so, can be potentially harmful to persons or equipment in the event of a fault to the unit.

  • Page 6: General Description

    THEORY OF OPERATION filtering enhances the stability of the reading. Programmable remote input The IMP employs a microprocessor to perform the A/D conversion on the “E1-CON” pin can be utilized to control a variety of functions, such as totalizing, input signal via a voltage-to-frequency converter. It digitally scales the result, alarm control, display hold or tare operations.

  • Page 7: B) Block Diagram

    FIG. 1: BLOCK DIAGRAM Note: Analog, Serial, and SNK output otions are isolated from the signal common at a working voltage of 50 V. The commons should NOT be tied together.

  • Page 8: Programming And Operating The Imp

    PROGRAMMING THE IMP Before actually trying to program the indicator, it is advised to organize all the data for the programming steps to avoid any possible confusion and to read Prior to installing and operating the indicator, it may be necessary to the programming procedure entirely before proceeding.
  • Page 9 DISPLAY RESULT OF “P” BUTTON DISPLAY RESULT OF “P” BUTTON “Pro” < > “0” “Pro” < > “4” Causes the indicator to return to normal display mode. Any Module #4 programs the digital filtering level and the function of the remote input ”E1-CON" pin (TBA #4), and, changes to set-up data are permanently stored in the PROM.

  • Page 10: B) Program Modules #1 Thru #9

    PROGRAMMING MODULE #1 - SCALE BY SIGNAL LEVEL METHOD PROGRAM DECIMAL POINT POSITION At this stage a choice of either return to “Pro 0” or continue with scaling of the display is offered. Select the desired decimal point position of the scaled display by pressing “SCALE”...
  • Page 11 APPLY SIGNAL TO INDICATOR FOR SCALING POINT #2 KEY-IN DISPLAY VALUE FOR POINT #3 If “YES” was selected, the display value for the third point is entered. The meter will indicate the actual amount of signal being applied to the input. However, the indicator still retains the previous value until “P”...
  • Page 12 PROGRAMMING MODULE #2 - SCALE BY KEY-IN METHOD PROGRAM DECIMAL POINT POSITION At this stage a choice of either return to “Pro 0” or continue with scaling of the display is offered. Select the desired decimal point position of the scaled display by pressing “SCALE”...
  • Page 13 KEY-IN SIGNAL VALUE FOR SCALING POINT #2 The sequence of entering display and signal values continues with “dSP 4” “INP 4”, “dSP 5”, etc. until the number programmed for “SEGt” is reached. “INP 2” < > “0-50” (ex. 20.000) Upon completion, the indicator is scaled to the multiple segments. It is At this point, scaling is complete.
  • Page 14 PROGRAMMING MODULE #3 - PROGRAM FUNCTIONS ACCESSIBLE W/ FRONT PANEL LOCKOUT RESET LATCHED ALARMS This programming module programs what is accessible through the front panel when the PGM. DIS. pin is connected to common (COMM.). If the alarm option is installed and if either alarm is programmed to latch, this Note: The term “Quick Programming”...
  • Page 15 RE-ZERO INPUT* If the totalizer/linearizer option is installed, this selects whether the signal can be re-zeroed (tared) through the front panel. “tArE” < > “yES” or “NO” Note: The tare buffer can be cleared by “stepping” through “Pro 2”, using the P button or via serial transmission.
  • Page 16 PROGRAMMING MODULE #4 - PROGRAM DIGITAL FILTER AND REMOTE INPUT PROGRAM DIGITAL FILTERING “2” - A negative going edge resets the contents of the totalizer If the displayed process signal is difficult to read due to small process to zero and allows totalization as long as the input is low. variations or noise, increased levels of filtering will help to stabilize the display.
  • Page 17 “8” - If the alarm option is installed, a negative going edge “E2-CON” < > If the totalizer option is installed, E2-CON has the same resets the latched alarm(s). programmable functions as E1-CON. “9” - If the alarm option is installed, a low level resets a latched or unlatched alarm into its inactive state.
  • Page 18 PROGRAMMING MODULE #5 - PROGRAM TOTALIZER/INTEGRATOR Programming for the totalizer/integrator consists of four programming steps: TB = If Program Select Number Chosen Is: Enter in Formula totalizer decimal point position, time base, scale factor and low signal disable. “0” for sec. Note that the decimal point position of the totalizer can be independent of the “1”...
  • Page 19 PROGRAMMING MODULE #6 - PROGRAM ALARM/SETPOINT PROGRAM VALUE FOR ALARM #1 If the alarm option is installed, this module is used to configure the operation of the alarms to a variety of combinations. The programmable options are HI/LO The range of the alarm value is -99,999 to 999,999. acting, auto/manual reset (latching), tracking, assignment to signal or totalizer, “AL-1”...
  • Page 20 PROGRAM VALUE FOR ALARM #2 The range of the alarm value is -99,999 to 999,999. “AL-2” < > “-99999” to “999999” PROGRAM HYSTERESIS VALUE FOR ALARM #2 (Cannot be programmed if alarm latch is programmed) The hysteresis (deadband) value for alarm #2 may be programmed from 1 to 999,999.
  • Page 21 Select one of the baud rates from the list to match the baud rate of the printer, FULL OR ABBREVIATED TRANSMISSION computer, controller, etc. When transmitting data, the IMP can be programmed to suppress the address “bAud” < > “300” - 300 baud number, mnemonics and some spaces, if desired by selecting “NO”.
  • Page 22 PROGRAMMING MODULE #8 - PROGRAM RE-TRANSMITTED ANALOG OUTPUT This programming module allows digital scaling of the 4 to 20 mA or 0 to 10 VDC analog output. The type of analog output is determined by the model ordered. (See Ordering Information for available models.) The display value at which 4 mA or 0 VDC and the display value at which 20 mA or 10 VDC are transmitted are keyed-in.
  • Page 23 ENTER ACCESS CODE Connect the IMP as shown below. Enter “Pro 9”, key-in “Code 39”, and then A code number (48) must be keyed-in prior to the calibration sequence to press “P”. If the serial communication hardware is OK, “PASS” will be displayed.

  • Page 24: C) Operating The Imp (Quick Programming)

    Configuration” section for the data that will be entered). The procedure consists of displayed, press and hold “DOWN” and press “P”. entering “Pro 9”, keying-in “Code 66”, and then pressing “P”. The IMP responds Pressing “P” alone causes a step to the next item with by displaying “INItAL”...

  • Page 25: D) Factory Configuration

    FACTORY CONFIGURATION The following chart lists the programming of the unit when shipped from the factory. (Code 66 will restore the unit to these values.) “Pro 2”..“dECPNt” 0.00 “Pro 6”..“trAc” “round” 0.01 “dISP” “dSP 1” 0.00 “LAtC-1” “INP 1” 4.000 “ASN-1”...

  • Page 26: E) Programming Example

    PROGRAMMING EXAMPLE “rSttOt” Enter yes As an example of a programming sequence, the following values, gained from a “tArE” Enter no flow application, are programmed into the indicator. “Pro 4”..“dECPNt” Enter 0 DISPLAY: 100.0 gallons/minute at 4.000 mA “E1-CON” Enter 8 (reset alarm #2) 3000.0 gallons/minute at 20.000 mA Resolution of 0.1 gallons.

  • Page 27: F) Pressure Monitoring Example

    PRESSURE MONITORING EXAMPLE An IMP indicator is installed as a monitoring device for pressure levels within an industrial boiler. A pressure transducer with a range of 0-1500 PSI and a corresponding 4 to 20 mA output is selected. The maximum allowable pressure of the boiler is 1200 PSI, at which time a pressure relief valve will operate (this makes the system inherently safe).

  • Page 28: Excitation (Optional)

    EXCITATION (Optional) The optional regulated excitation voltage (18 VDC, 60 mA max.) can be used Note: The totalizer value will roll over and flash when the total exceeds, 999999 or -99999, indicating an overflow condition. Reverse signal input will cause to power the transducer.

  • Page 29: B) Linearizer Example

    TOTALIZER SET-UP (Cont’d) The totalizer will totalize up to 9999.99 dollars in .01 dollar resolution. *This value is normally 1, but can be used as a coarse scale factor of 60 or 3600. D.T.D.P. = Desired Totalizer Decimal Point Enter in Formula **Since the time period is in Hrs., the selected T.B.
  • Page 30 Now, using the above percentages, the actual process (input) signal and LINEARIZER (Cont’d) display scaling points must be calculated. To do this for the display values, it is The computer program in Appendix “C” outputs the display and process (input) simply the display percentage times the full scale display range.

  • Page 31: C) Peak/Valley/Tare

    “dSP 8” “681.8” DISPLAY PROCESS (INPUT) “INP 8” “11.360” %FS, 10-50 mA* %FS, 0-1500 gpm* “dSP 9” “857.4” 0.00 0.00 “INP 9” “15.664” 6.32 94.8 0.20 10.08 “dSP 10” “1000.0” 10.43 156.45 1.00 10.40 “INP 10” “20.000” 18.04 270.60 3.10 11.24 As a result of the scaling, the indicator is scaled to read directly in (gpm) from a 27.58...

  • Page 32: Alarms (Optional)

    ALARMS (Optional) The alarm option consists of an additional printed circuit board with 9 modified through the optional serial communications to provide automatic control. The following diagrams depict how the alarms work with both “HI” and terminals. Six of these terminals are the two Form-C relays and the other three are “LO”...

  • Page 33: 20 Ma Current Loop Serial Communications (Optional)

    -20 mA SRC., instead of SO+. To bypass the built in current source, make transmit loop connections to SO+ and SO-. Additionally, multiple units and other Red Lion Controls instruments can be serially addressed, up to a maximum of 99 units. (The actual number in a single loop is limited by the serial hardware specifications.) To eliminate problems...

  • Page 34: C) Sending Commands To The Imp

    SENDING COMMANDS TO THE IMP accepted. The address command is used to allow a command to be directed to a specific unit on the loop. If the indicator is assigned an address of “0”, When sending commands to the unit a command string must be constructed.
  • Page 35 If an illegal command or character is sent to the IM, an asterisk (*) must be Timing Diagrams transmitted to clear the input buffer. The IM will not respond to an illegal or (Full Transmission Selected) incomplete transmission. The diagrams show the differences in the timing considerations for either Abbreviated or Full Character Transmission, or if a Reset Command is issued.

  • Page 36: D) Receiving Data From The Imp

    For a “T” command or after each “line of a block” transmission, no additional RECEIVING DATA FROM THE IMP characters are sent. If the abbreviated transmission is selected, the address, Data is transmitted from the indicator whenever a “T” or “P” command is...
  • Page 37 This page is intentionally left blank. -33-...

  • Page 38: E) Current Loop Installation

    CURRENT LOOP INSTALLATION WIRING CONNECTIONS SERIAL COMMUNICATIONS EXAMPLES CONNECTING TO AN RLC PRINTER When wiring the 20 mA current loop, remove the bottom terminal block (TBA), located on the rear of the unit. It is recommended that shielded (screened) cable be The drawing shows the indicator with the 20 mA Serial Communication used for serial communications.
  • Page 39 The drawing below shows the Current Loop set-up. Each unit if that unit is serving as the loop supply source. IMP is given an address and programmed accordingly (Program Module #7). A baud rate of 1200 is selected. -35-...

  • Page 40: Re-Transmitted Analog Output (Optional)

    RE-TRANSMITTED ANALOG OUTPUT (OPTIONAL) The re-transmitted analog output option transmits a digitally programmable 4 The analog output then follows the displayed value and as such will update to 20 mA or 0 to 10 VDC signal to drive chart recorders, remote indicators and every measurement cycle.
  • Page 41 ANALOG OUTPUT CALIBRATION Although the analog output has been calibrated at the factory, zero and span 0 to 10 VDC CALIBRATION Exit the programming mode and apply a (temperature)/(resistance) to the input of adjustments are provided to compensate for small offsets and drifts. If excessive drift is noticed, the following calibration procedure may be performed.

  • Page 42: Appendix "A" - Installation And Connections

    APPENDIX “A” - INSTALLATION & CONNECTIONS INSTALLATION ENVIRONMENT The unit should be installed in a location that does not exceed the maximum Before installing the IM into the panel, the user should first become familiar operating temperature and provides good air circulation. Placing the unit near with the unit.
  • Page 43 EMC INSTALLATION GUIDELINES This unit complies with the ElectoMagnetic Compatibility (EMC) standard 5. In extremely high EMI environments, the use of external EMI suppression listed in the specifications. Although the unit is designed with a high degree of devices, such as ferrite suppression cores, is effective. Install them on Signal immunity to ElectroMagnetic Interference (EMI), proper installation and wiring and Control cables as close to the unit as possible.
  • Page 44 WIRING CONNECTIONS OUTPUT WIRING After the unit has been mechanically mounted, it is ready to be wired. All RELAY CONNECTIONS conductors should meet voltage and current ratings for each terminal. Also To prolong contact life and suppress electrical noise interference due to the cabling should conform to appropriate standards of good installation, local codes switching of inductive loads, it is good installation practice to install a snubber and regulations.
  • Page 45 SIGNAL WIRING A.C. Power Basic Connection Meter signal input common is not isolated from PGM.DIS, E1-CON, E2-CON, and +EXC. Maximum allowable 50 V can be present in the circuit that is being measured. For Signal Sources Not Requiring Excitation: Connect the “+” lead of the process signal to TBA #6, “+SIGNAL”, and the “-”...

  • Page 46: Appendix "B" - Specifications And Dimensions

    APPENDIX “B” - SPECIFICATIONS AND DIMENSIONS 1. DISPLAY: 6-digit, 0.56" (14.2 mm) High LED, minus sign displayed for 9. RESPONSE TIME: 2 seconds to settle for step input (increases with programmable digital filtering). negative values. Flashing display during totalizer overflow. “..”displayed 10.
  • Page 47 16. SERIAL COMMUNICATIONS (Optional): 4 to 20 mA: Isolation To Signal Input Common: 500 Vrms for 1 min. Accuracy: 0.1% of full scale Working Voltage: 50 V max., CAT I Resolution: 12 bits Not isolated from all other commons. Compliance Voltage: 10 VDC (500 W max. loop impedance) Type: Bi-directional 20 mA current loop, 20 mA source provided on 0 to 10 VDC: transmit loop.
  • Page 48 ELECTROMAGNETIC COMPATIBILITY Immunity to EN 50082-2 Electrostatic discharge EN 61000-4-2 Level 2; 4 Kv contact Level 3; 8 Kv air Electromagnetic RF fields EN 61000-4-3 Level 3; 10 V/m 80 Mhz - 1 GHz Fast transients (burst) EN 61000-4-4 Level 4; 2 Kv I/O Level 3;...

  • Page 49: Appendix "C" - Linearizer Program

    Increasing the conformity error decreases the 220 B=D1-(P1*M) number of linear slopes required to fit the function. The IMP can accommodate 240 PT=P1 up to nine linear segments and it is generally desired to use all of them to 245 AD=(P2-P1)/6 minimize linearity error.
  • Page 50 APPENDIX “C” - LINEARIZER PROGRAM (Cont’d) 2016 PRINT “DISPLAY VALUES PROCESS VALUES” 2017 PRINT “(% OF RANGE) ”;"(%) OF RANGE" 2018 PRINT “” 2019 FOR I=0 TO SG 2020 PRINT USING “###.##”;DA(I); 2022 PRINT “ ”; 2025 PRINT USING “###.##”;PA(I) 2030 NEXT I 2040 END Square Root...

  • Page 51: Appendix "D" - Troubleshooting Guide

    APPENDIX “D” - TROUBLESHOOTING GUIDE The majority of all problems with the indicator can be traced to improper connections or improper programming set-ups. Be sure all connections are clean and tight and check the programming set-ups for correct data. For further technical assistance, contact technical support at the numbers listed on the back cover of the instruction manual.

  • Page 52: Appendix "E" - Programmable Functions

    APPENDIX “E” - PROGRAMMABLE FUNCTIONS Programming of the indicator is divided into modular steps. Each module is a “Pro 3” - PROGRAM FUNCTIONS ACCESSIBLE WITH FRONT PANEL short sequence of data entries. The front panel buttons “UP” and “DOWN”, LOCKOUT ENGAGED (shown as “arrows”...
  • Page 53 APPENDIX “E” - PROGRAMMABLE FUNCTIONS (Cont’d) “Pro 5” - PROGRAM TOTALIZER “Pro 7” - PROGRAM SERIAL COMMUNICATIONS “dECPNt” Enter decimal point for totalizer “bAud” Enter baud rate “tbASE” Enter time base “AddrES” Enter loop address number (0-99) second “Print” Enter print function, or “P” command function through Serial Option minute input...

  • Page 54: Appendix "F" - Users Programming Values Chart

    APPENDIX “F” - USERS PROGRAMMING VALUES CHART PROGRAM MODULE #1 PROGRAM MODULE #2 Scaled By Signal Method Scaled By Signal Method dECPNt dECPNt round round SCALE SCALE dSP 1 dSP 1 INP 1 INP 1 dSP 2 dSP 2 INP 2 INP 2 Additional scaling points are NOT necessary, Additional scaling points are NOT necessary,...
  • Page 55 APPENDIX “F” - USERS PROGRAMMING VALUES CHART PROGRAM MODULE #3 PROGRAM MODULE #6 Front Panel Lockout Alarms trAC dSP AL dISP Ent AL LAtC-1 dSPHYS ASN-1 ENtHYS AL-1 rSt AL HyS-1 dSPbUF Act-1 rStbUF SELdSP LAtC-2 RSttOt ASN-2 tArE AL-2 HyS-2 PROGRAM MODULE #4 Act-2...

  • Page 56: Appendix "G" - Ordering Information

    APPENDIX “G” - ORDERING INFORMATION TOTALIZER/ PART NUMBERS FOR AVAILABLE MODEL +18 VDC LINEARIZER DUAL SERIAL ANALOG SUPPLY VOLTAGES DESCRIPTION EXCITATION PEAK/VALLEY ALARMS OUTPUT OUTPUT 115/230 VAC TARE/E2CON IMP20060 Intelligent IMP20160 Process IMP20162 Meter with IMP23160 0 to 50 mA DC IMP23161 Signal Input IMP23162...
  • Page 57 -53-...
  • Page 58 -54-...
  • Page 59 Company’s option. The Company disclaims all liability for any affirmation, promise or representation with respect to the products. The customer agrees to hold Red Lion Controls harmless from, defend, and indemnify RLC against damages, claims, and expenses arising out of subsequent...
  • Page 60 IMP / IM - O 6/02 DRAWING NO. LP0183 Red Lion Controls Red Lion Controls BV 20 Willow Springs Circle Basicweg 11b York PA 17402 NL - 3821 BR Amersfoort Tel +1 (717) 767-6511 Tel +31 (0) 334 723 225...
