1/8 din analog input panel meters

Advertisement

®
MODEL PAX
U L
C
US LISTED
R
IND. CONT. EQ.
51EB

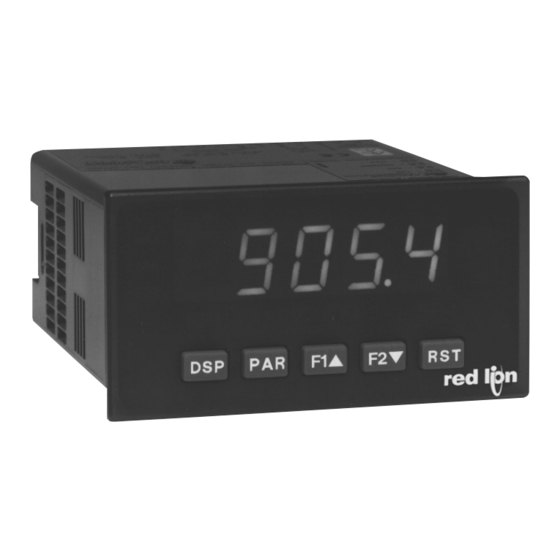

GENERAL DESCRIPTION
®
The PAX
Analog Panel Meters offer many features and performance
capabilities to suit a wide range of industrial applications. Available in five
different models to handle various analog inputs, including DC Voltage/Current,
AC Voltage/Current, Process, Temperature, and Strain Gage Inputs. Refer to
pages 4 through 6 for the details on the specific models. The option cards allow
the opportunity to configure the meter for present applications, while providing
easy upgrades for future needs.
The meters employ a bright 0.56" LED display. The unit is available with a
red sunlight readable or a standard green LED. The intensity of display can be
adjusted from dark room applications up to sunlight readable, making it ideal
for viewing in bright light applications.
The meters provide a MAX and MIN reading memory with programmable
capture time. The capture time is used to prevent detection of false max or min
readings which may occur during start-up or unusual process events.
The signal totalizer (integrator) can be used to compute a time-input product.
This can be used to provide a readout of totalized flow, calculate service
intervals of motors or pumps, etc. The totalizer can also accumulate batch
weighing operations.
Optional digital output cards provide the meter with up to four setpoint
outputs. The cards are available as dual relay, quad relay, quad sinking
transistor, quad sourcing transistor/SSR drive, or dual triac/dual SSR drive
outputs. The setpoint alarms can be configured to suit a variety of control and
alarm requirements.
Communication and Bus Capabilities are also available as option cards.
These include RS232, RS485, Modbus, DeviceNet, and Profibus-DP. Readout
values and setpoint alarm values can be controlled through the bus. Additionally,
the meters have a feature that allows a remote computer to directly control the
outputs of the meter. With an RS232 or RS485 card installed, it is possible to
DIMENSIONS In inches (mm)
MA
X
8. 8 . 8 . 8 . 8
V
M
N I
T T
O
SP
SP
S
3
S
1
2
P
P4
DSP
PAR
F1
F2
RST
3.80
(96.5)
– 1/8 DIN ANALOG INPUT PANEL METERS
Note: Recommended minimum clearance (behind the panel) for mounting clip installation is
2.1" (53.4) H x 5.0" (127) W.
1.95
(49.5)
.10
(2.5)
 PROCESS, VOLTAGE, CURRENT, TEMPERATURE, AND STRAIN
GAGE INPUTS
 5-DIGIT 0.56" RED SUNLIGHT READABLE DISPLAY
 VARIABLE INTENSITY DISPLAY
 16 POINT SCALING FOR NON-LINEAR PROCESSES
 PROGRAMMABLE FUNCTION KEYS/USER INPUTS
 9 DIGIT TOTALIZER (INTEGRATOR) WITH BATCHING
 OPTIONAL CUSTOM UNITS OVERLAY W/BACKLIGHT
 FOUR SETPOINT ALARM OUTPUTS (W/OPTION CARD)
 COMMUNICATION AND BUS CAPABILITIES (W/OPTION CARD)
 RETRANSMITTED ANALOG OUTPUT (W/OPTION CARD)
®
 CRIMSON
PROGRAMMING SOFTWARE
 NEMA 4X/IP65 SEALED FRONT BEZEL
configure the meter using a Windows
can be saved to a file for later recall.
A linear DC output signal is available as an optional card. The card provides
either 20 mA or 10 V signals. The output can be scaled independent of the input
range and can track either the input, totalizer, max or min readings.
Once the meters have been initially configured, the parameter list may be
locked out from further modification in its entirety or only the setpoint values
can be made accessible.
The meters have been specifically designed for harsh industrial environments.
With NEMA 4X/IP65 sealed bezel and extensive testing of noise effects to CE
requirements, the meter provides a tough yet reliable application solution.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in this
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use this unit to directly command motors, valves, or other actuators
not equipped with safeguards. To do so can be potentially harmful to persons or
equipment in the event of a fault to the unit.
CAUTION: Risk of Danger
Read complete instructions prior to
installation and operation of the unit.
1.75
(44.5)
4.10
(104.1)
1
®
based program. The configuration data
CAUTION: Risk of electric shock.
12
16
20
13
17
21
14
18
22
15
19
23
24
25
1 2 3 4 5 6
7
8 9 10 11
3.60 (91.4)
1.75
(44.5)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAXS0010 and is the answer not in the manual?

Questions and answers

Summary of Contents for red lion PAXS0010

  • Page 1 ® MODEL PAX – 1/8 DIN ANALOG INPUT PANEL METERS  PROCESS, VOLTAGE, CURRENT, TEMPERATURE, AND STRAIN GAGE INPUTS  5-DIGIT 0.56" RED SUNLIGHT READABLE DISPLAY  VARIABLE INTENSITY DISPLAY  16 POINT SCALING FOR NON-LINEAR PROCESSES  PROGRAMMABLE FUNCTION KEYS/USER INPUTS ...
  • Page 2 able OnTenTs Ordering Information ....2 Setting the Jumpers ....8 General Meter Specifications .
  • Page 3: Environmental Conditions

    eneral eTer peCifiCaTiOns 1. DISPLAY: 5 digit, 0.56" (14.2 mm) red sunlight readable or standard green 14. MEMORY: Nonvolatile E PROM retains all programmable parameters and LEDs, (-19999 to 99999) display values. 2. POWER: 15. ENVIRONMENTAL CONDITIONS: AC Versions: Operating Temperature Range: 0 to 50°C (0 to 45°C with all three option AC Power: 85 to 250 VAC, 50/60 Hz, 15 VA cards installed) Isolation: 2300 Vrms for 1 min.
  • Page 4 paXd - U dC i Odel niversal npUT  FOUR VOLTAGE RANGES (300 VDC Max)  FIVE CURRENT RANGES (2A DC Max)  THREE RESISTANCE RANGES (10K Ohm Max)  SELECTABLE 24 V, 2 V, 1.75 mA EXCITATION PAXD SPECIFICATIONS INPUT RANGES: INPUT ACCURACY*...
  • Page 5 paXH - aC T rms v Odel OlT and UrrenT  FOUR VOLTAGE RANGES (300 VAC Max)  FIVE CURRENT RANGES (5 A Max)  ACCEPTS AC OR DC COUPLED INPUTS  THREE WAY ISOLATION: POWER, INPUT AND OUTPUTS PAXH SPECIFICATIONS INPUT RANGES: Isolation To Option Card Commons and User Input Commons: 125 Vrms Isolation To AC Power Terminals: 250 Vrms...
  • Page 6: Rtd I Nput

    paXT - T rTd i Odel HermOCOUple and npUT  THERMOCOUPLE AND RTD INPUTS  CONFORMS TO ITS-90 STANDARDS  CUSTOM SCALING FOR NON-STANDARD PROBES  TIME-TEMPERATURE INTEGRATOR PAXT SPECIFICATIONS READOUT: Resolution: Variable: 0.1, 0.2, 0.5, or 1, 2, or 5 degrees Scale: F or C RTD INPUTS: Offset Range: -19,999 to 99,999 display units...
  • Page 7 pTiOn ards SETPOINT CARDS (PAXCDS) WARNING: Disconnect all power to the unit before installing option cards. The PAX and MPAX series has 6 available setpoint alarm output option cards. Only one of these cards can be installed at a time. (Logic state of the outputs can be reversed in the programming.) Adding Option Cards DUAL RELAY CARD: PAXCDS10...
  • Page 8: Setting The Jumpers

    LINEAR DC OUTPUT (PAXCDL) Either a 0(4)-20 mA or 0-10 V retransmitted linear DC output is available from the analog output option card. The programmable output low and high scaling can be based on various display values. Reverse slope output is possible by reversing the scaling point positions.
  • Page 9: Jumper Selections

    PAXD Jumper Selection Input Range Jumper One jumper is used for voltage/ohms or current input ranges. Select the proper input range high enough to avoid input signal overload. Only one jumper is allowed in this area. Do not have a jumper in both the voltage and current ranges at the same time.
  • Page 10 PAXP Jumper Selection Main Circuit JUMPER SELECTIONS Board indicates factory setting. USER INPUT LOGIC JUMPER SINK SOURCE REAR TERMINALS USER INPUT JUMPER LOCATION PAXS Jumper Selection Bridge Excitation One jumper is used to select bridge excitation to allow use of the higher sensitivity 24 mV input Main range.
  • Page 11: Top View

    3.0 i nsTalling pTiOn ards Note: For option card specific installation instructions, refer to the To Install: literature shipped with the option card. 1. With the meter removed from the case, locate the option card connector for The option cards are separately purchased cards that perform specific the card type to be installed.
  • Page 12: W Iring The M Eter

    Visit RLC’s web site at http://www.redlion.net/emi for more information on a. Connect the shield to earth ground (protective earth) at one end where the EMI guidelines, Safety and CE issues as they relate to Red Lion Controls unit is mounted.
  • Page 13: Input Signal Wiring

    4.2 INPUT SIGNAL WIRING PAXD INPUT SIGNAL WIRING Before connecting signal wires, the Input Range Jumper and Excitation Jumper should be verified for proper position. Voltage Signal Current Signal Current Signal (2 wire Current Signal (3 wire (self powered) (self powered) requiring excitation) requiring excitation) Terminal 4: -ADC...
  • Page 14 PAXH INPUT SIGNAL WIRING Before connecting signal wires, the Signal, Input Range and Couple Jumpers should be verified for proper position. Voltage Signal Current Signal (Amps) Current Signal (Milliamps) CAUTION: Connect only one input signal range to the meter. Hazardous signal levels may be present on unused inputs.
  • Page 15: User Input Wiring

    4.3 USER INPUT WIRING Before connecting the wires, the User Input Logic Jumper should be verified for proper position. If not using User Inputs, then skip this section. Only the appropriate User Input terminal has to be wired. Sinking Logic Sourcing Logic Terminal 8-10: Terminal 8-10: + VDC thru external switching device...
  • Page 16: Programming Mode

    6.0 p rOgramming THe eTer OVERVIEW DISPLAY MODE PROGRAMMING MENU MAIN MENU User Input/ Display/ Signal Function Program Secondary Totalizer Setpoint* Serial* Analog* Factory Input Lock-out Function (Integrator) (Alarm) Communication Output Service Parameters Parameters Operations Parameters Parameters Parameters Parameters Parameters Parameters F1/F2 Keys...
  • Page 17 6.1 mOdUle 1 - s ignal npUT arameTers  PAX PARAMETER MENU 1-INP PAXH ONLY rAN6E COUPL dECPt round FILtr bANd StYLE Input Input Display Display Filter Filter Scaling Scaling Input x Display x Range Couple Decimal Point Rounding Setting Band Points Style...
  • Page 18 DISPLAY ROUNDING SCALING POINTS                  Bottom row selections are not Linear - Scaling Points (2) available for the PAXT. For linear processes, only 2 scaling points are necessary. It is recommended that the 2 scaling points be at opposite ends of the input signal being applied.
  • Page 19: Parameter Menu

    DISPLAY VALUE FOR SCALING POINT 2 4. The maximum scaled Display Value spread between range maximum and minimum is limited to 65,535. For example using +20 mA range the    maximum +20 mA can be scaled to is 32,767 with 0 mA being 0 and Display ...
  • Page 20 HOLD DISPLAY RESET MAXIMUM When activated (momentary action), flashes and The shown display is held but all other meter functions      continue as long as activated (maintained action). the Maximum resets to the present Input Display value. The ...
  • Page 21 SETPOINT SELECTIONS PRINT REQUEST The following selections are accessible only with the Setpoint option card     installed. Refer to Module 6 for an explanation of their operation.     ì Select main or alternate setpoints ...
  • Page 22 6.4 mOdUle 4 - s eCOndary UnCTiOn arameTers  PARAMETER MENU 4-SEC PAXS PAXS PAXT ONLY ONLY PAXT ONLY HI-t LO-t dSP-t At-t At-b b-LIt OFFSt Max. Capture Min. Capture Display Update Auto-Zero Auto-Zero Units Label Display Offset Ice Point Delay Time Delay Time Time...
  • Page 23 6.5 mOdUle 5 - T OTalizer nTegraTOr arameTers  5-tOt PARAMETER MENU dECPt tbASE SCFAC Locut P-UP Totalizer Totalizer Totalizer Totalizer Low Totalizer Power Decimal Point Time Base Scale Factor Cut Value Up Reset TOTALIZER HIGH ORDER DISPLAY The totalizer accumulates (integrates) the Input Display value using one of two modes.
  • Page 24 6.6 mOdUle 6 - s ) Ñ eTpOinT larm arameTers  PARAMETER MENU 6-SPt SPSEL ACt-n SP-n Src-n HYS-n tON-n tOF-n out-n Setpoint Setpoint Setpoint Setpoint Setpoint On Time Off Time Output Select Value Source Hysteresis Delay Delay Logic Action PAXT ONLY rSt-n...
  • Page 25 SETPOINT ACTION ON TIME DELAY          sec.               Enter the action for the selected setpoint (alarm output). See Setpoint Alarm Enter the time value in seconds that the alarm is delayed from turning on after Figures for a visual detail of each action.
  • Page 26 SETPOINT ANNUNCIATORS MANUAL RESET         SP - Hys mode disables display setpoint annunciators. The mode   displays the corresponding setpoint annunciators of “on” alarm outputs. The mode displays the corresponding setpoint annunciators of “off” alarms ì...
  • Page 27: Print Options

    Register Identification Chart ABBREVIATED PRINTING Register   Value Description Applicable Commands/Comments   (Reset command [Ver2.5+]   Input T, P, R zeros the input [“REL” or Tare]) (Reset command resets total to Select abbreviated transmissions (numeric only) or full field transmission. Total T, P, R zero)
  • Page 28 Abbreviated Transmission Meter Response Examples: 1. Node address = 17, full field response, Input = 875 Byte Description 12 byte data field, 10 bytes for number, one byte for sign, 17 INP 875 <CR><LF> 1-12 one byte for decimal point 2.
  • Page 29 Command Response Time Communication Format Data is transferred from the meter through a serial communication channel. The meter can only receive data or transmit data at any one time (half-duplex In serial communications, the voltage is switched between a high and low level operation).
  • Page 30 6.8 mOdUle 8 - a ) Ñ nalOg UTpUT arameTers  PARAMETER MENU 8-Out PAXT ONLY tYPE ASIN AN-LO AN-HI burn Analog Analog Burn-out Analog Analog Low Analog High Type Update Time Action Assignment Scale Value Scale Value Ñ - An analog output card must be installed in order to access this module.
  • Page 31: Restore Factory Defaults

    6.9 mOdUle 9 - f aCTOry erviCe peraTiOns  9-FCS PARAMETER MENU d-LEV COdE Display Factory Intensity Level Service Code DISPLAY INTENSITY LEVEL PAXP - Input Calibration Enter the desired Display Intensity Level (0-15) by   WARNING: Calibration of this meter requires a signal source with an using the arrow keys.
  • Page 32 100 OHM RTD Range Calibration AC Couple Offset Calibration - PAXH 1. Set the Input Range Jumper to 100 ohm. It is recommended that Input Calibration be performed first. 2. Use the arrow keys to display and press PAR. Then choose ...
  • Page 33: Troubleshooting

    TROUBLESHOOTING PROBLEM REMEDIES NO DISPLAY CHECK: Power level, power connections CHECK: Active (lock-out) user input PROGRAM LOCKED-OUT ENTER: Security code requested MAX, MIN, TOT LOCKED-OUT CHECK: Module 3 programming CHECK: Module 1 programming, Input Range Jumper position, input connections, input signal level, INCORRECT INPUT DISPLAY VALUE Module 4 Display Offset is zero, press DSP for Input Display PERFORM: Module 9 Calibration (If the above does not correct the problem.)
  • Page 34 User Input and Function Key Parameters Totalizer (Integrator) Parameters   FACTORY FACTORY DISPLAY PARAMETER USER SETTING DISPLAY PARAMETER USER SETTING SETTING SETTING * TOTALIZER DECIMAL POINT   USER INPUT 1   TOTALIZER TIME BASE   USER INPUT 2 ...
  • Page 35 paX prOgramming QUiCK OvervieW...
