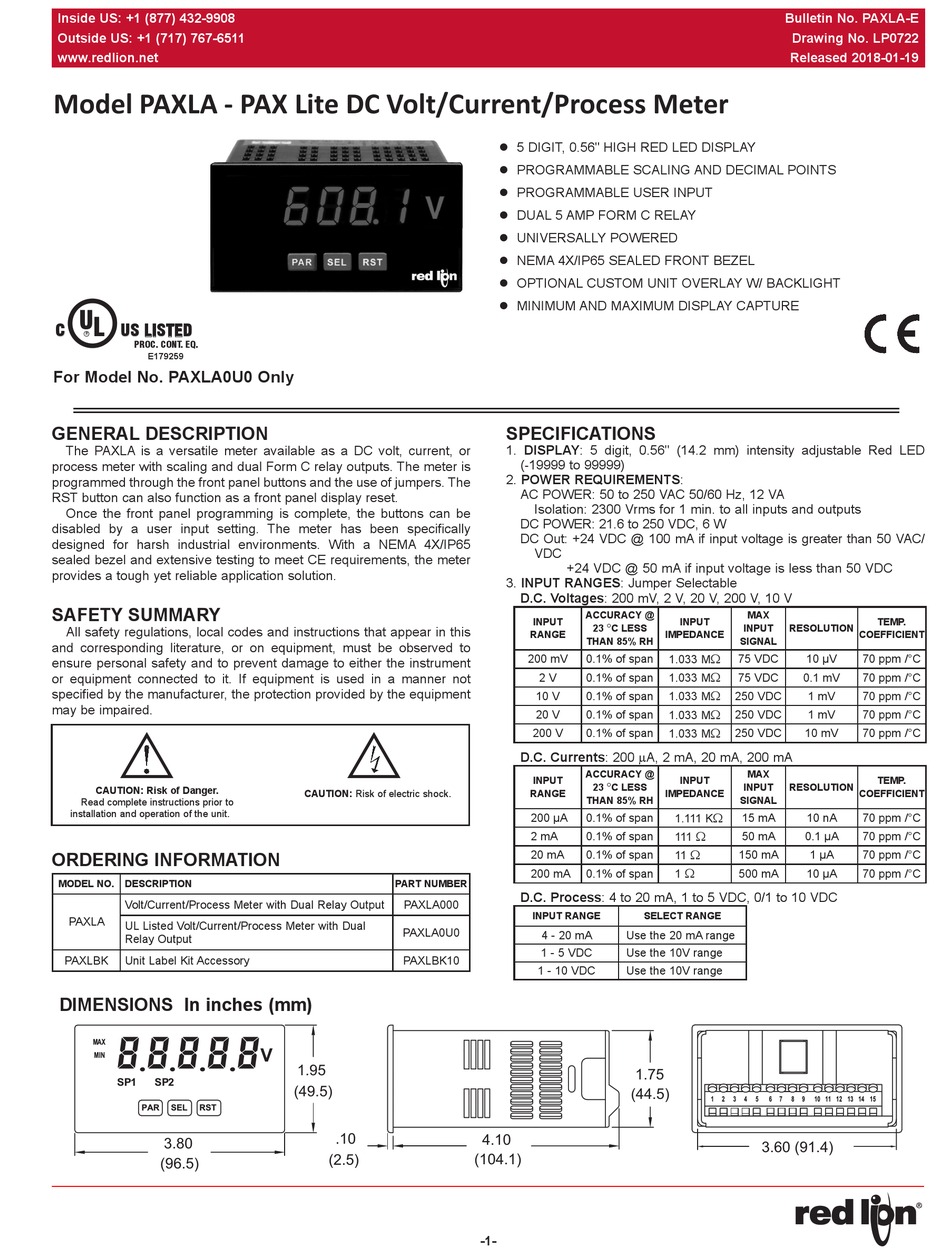

Model PAXLA - PAX Lite DC Volt/Current/Process Meter
U L
C US LISTED
R
PROC. CONT. EQ.
E179259
For Model No. PAXLA0U0 Only

GENERAL DESCRIPTION

The PAXLA is a versatile meter available as a DC volt, current, or
process meter with scaling and dual Form C relay outputs. The meter is
programmed through the front panel buttons and the use of jumpers. The
RST button can also function as a front panel display reset.
Once the front panel programming is complete, the buttons can be
disabled by a user input setting. The meter has been specifically
designed for harsh industrial environments. With a NEMA 4X/IP65
sealed bezel and extensive testing to meet CE requirements, the meter
provides a tough yet reliable application solution.

SAFETY SUMMARY

All safety regulations, local codes and instructions that appear in this
and corresponding literature, or on equipment, must be observed to
ensure personal safety and to prevent damage to either the instrument
or equipment connected to it. If equipment is used in a manner not
specified by the manufacturer, the protection provided by the equipment
may be impaired.
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.

ORDERING INFORMATION

MODEL NO. DESCRIPTION
Volt/Current/Process Meter with Dual Relay Output
PAXLA
UL Listed Volt/Current/Process Meter with Dual
Relay Output
PAXLBK Unit Label Kit Accessory
DIMENSIONS In inches (mm)
8. 8 . 8 . 8 . 8
MA X
I M N
S 1 P S 2 P
PAR SEL RST
3.80
(96.5)
CAUTION: Risk of electric shock.
PART NUMBER
PAXLA000
PAXLA0U0
PAXLBK10
V
1.95
(49.5)
.10
(2.5)
 5 DIGIT, 0.56" HIGH RED LED DISPLAY
 PROGRAMMABLE SCALING AND DECIMAL POINTS
 PROGRAMMABLE USER INPUT
 DUAL 5 AMP FORM C RELAY
 UNIVERSALLY POWERED
 NEMA 4X/IP65 SEALED FRONT BEZEL
 OPTIONAL CUSTOM UNIT OVERLAY W/ BACKLIGHT
 MINIMUM AND MAXIMUM DISPLAY CAPTURE

SPECIFICATIONS

1. DISPLAY: 5 digit, 0.56" (14.2 mm) intensity adjustable Red LED
(-19999 to 99999)
2. POWER REQUIREMENTS:
AC POWER: 50 to 250 VAC 50/60 Hz, 12 VA
Isolation: 2300 Vrms for 1 min. to all inputs and outputs
DC POWER: 21.6 to 250 VDC, 6 W
DC Out: +24 VDC @ 100 mA if input voltage is greater than 50 VAC/
VDC
+24 VDC @ 50 mA if input voltage is less than 50 VDC
3. INPUT RANGES: Jumper Selectable
D.C. Voltages: 200 mV, 2 V, 20 V, 200 V, 10 V
ACCURACY @
INPUT
°
23 C LESS
RANGE
THAN 85% RH
200 mV 0.1% of span
2 V 0.1% of span
10 V 0.1% of span
20 V 0.1% of span
200 V 0.1% of span
D.C. Currents: 200 µA, 2 mA, 20 mA, 200 mA
ACCURACY @
INPUT
°
23 C LESS
RANGE
THAN 85% RH
200 µΑ 0.1% of span
2 mA 0.1% of span
20 mA 0.1% of span
200 mA 0.1% of span
D.C. Process: 4 to 20 mA, 1 to 5 VDC, 0/1 to 10 VDC
INPUT RANGE SELECT RANGE
4 - 20 mA Use the 20 mA range
1 - 5 VDC Use the 10V range
1 - 10 VDC Use the 10V range
1.75
(44.5)
4.10
(104.1)
-1-
Bulletin No. PAXLA-E
Drawing No. LP0722
Released 2018-01-19
MAX
INPUT
INPUT RESOLUTION
IMPEDANCE
SIGNAL
Ω
75 VDC 10 µV
1.033 M
Ω
75 VDC 0.1 mV
1.033 M
Ω
1.033 M 250 VDC 1 mV
Ω
1.033 M 250 VDC 1 mV
Ω
250 VDC 10 mV
1.033 M
MAX
INPUT
INPUT RESOLUTION
IMPEDANCE
SIGNAL
Ω
1.111 K 15 mA 10 nA
Ω
50 mA 0.1 µA
111
Ω
11 150 mA 1 µA
Ω
1 500 mA 10 µA
1 2 3 4 5 6 7 8 9 10 11 12 13
3.60 (91.4)
TEMP.
COEFFICIENT
70 ppm /°C
70 ppm /°C
70 ppm /°C
70 ppm /°C
70 ppm /°C
TEMP.
COEFFICIENT
70 ppm /°C
70 ppm /°C
70 ppm /°C
70 ppm /°C
14 15
