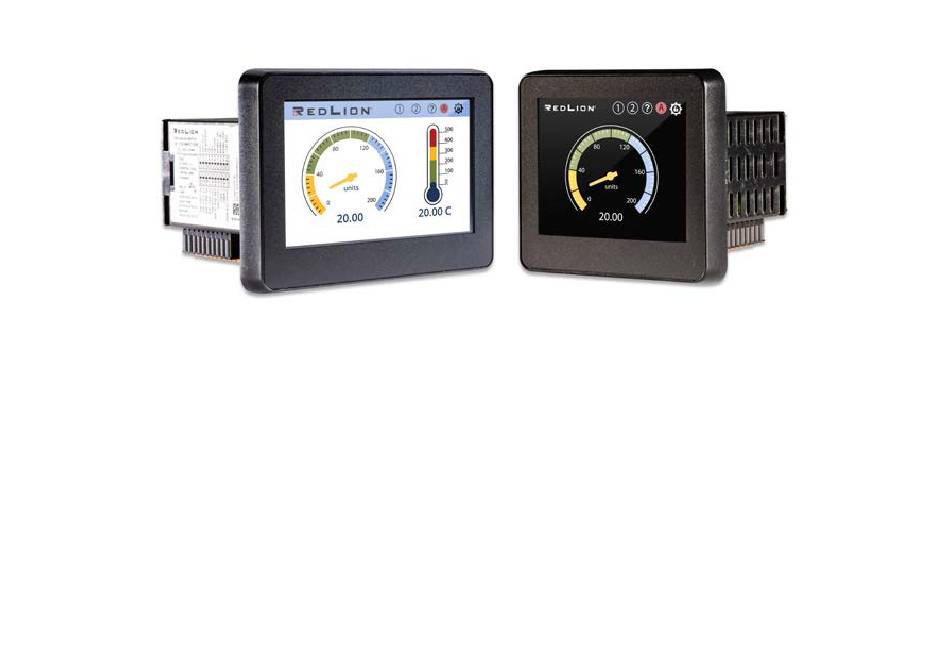

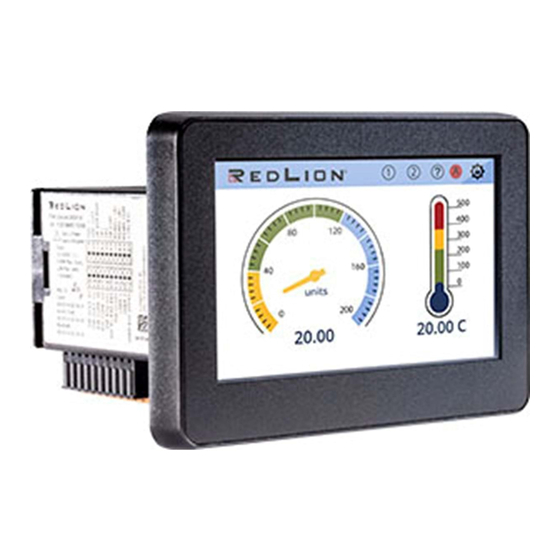

PM-50 Digital Meter User Manual
LP1147 | January 2022
Firmware Version 1.2.6 or higher

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM-50 and is the answer not in the manual?

Questions and answers

Loren shackelford
July 17, 2025

How to set up 4-20 ma output module to be controlled by a setpoint

0

Subscribe to Our Youtube Channel

Related Manuals for red lion PM-50

Summary of Contents for red lion PM-50

  • Page 1 PM-50 Digital Meter User Manual LP1147 | January 2022 Firmware Version 1.2.6 or higher...
  • Page 2 COPYRIGHT ©2021 Red Lion Controls, Inc. All rights reserved. Red Lion and the Red Lion logo are registered trademarks of Red Lion Controls, Inc. All other company and product names are trademarks of their respective owners. Red Lion Controls, Inc.
  • Page 3 Programming the PM-50 Programming Methods Programming Wizard Wi-Fi Setup and Remote Access: Wi-Fi Status How to connect to the PM-50 Wi-Fi Client How to connect to the PM-50 Wi-Fi Access Point Wi-Fi Notes Update Firmware Programming Wizard Initial Setup Wizard Quick Setup...
  • Page 4 Accessories Meter Installation Adding Modules To a 4.3 inch Host Module Installation Variations for 4.3 Inch (1/8 DIN) PM-50 To a 3.5 inch Host Wiring Power Wiring Service and Support Information Service Information Product Support Limited Warranty...
  • Page 5 Programming the PM-50 Programming Methods There are several methods to program a PM-50. On first power up, there is a default configuration that allows you to configure using the Initial Setup Wizard (also referred to as Programming Wizard). The Wizard...
  • Page 6 • The Starting and Ending Addresses are used by the DHCP Server to assign a range of IP addresses allowed to connect to the PM-50. • If Enable DHCP Server is OFF, then the user has to setup the IP Address, Subnet Mask and Gateway.
  • Page 7 “Wi-Fi communication mode”, follow the steps below to access the device configuration. How to connect to the PM-50 Wi-Fi Client 1. Once the PM-50 is configured in Client mode successfully, the Wi-Fi icon will appear. Connect the PC/ Mobile to the same network with the SSID and password.
  • Page 8 SSID configured in the device. 2. Select the SSID and connect with the given password. 3. To check the connection status with the IP details from the PM-50, click the Wi-Fi Icon in the menu bar, or go to Device →...
  • Page 9 The PM-50 allows you to update the firmware using the microSD card or remotely from a web browser with Wi-Fi enabled. It is strongly suggested that the configuration in the PM-50 be saved to a config.txt file using a microSD card or through Wi-Fi before updating to a new firmware version.
  • Page 10 Upgrade Firmware Remotely The firmware of the PM-50 can be upgraded remotely from a web browser once Wi-Fi access is enabled. 1. Login to the device remotely from a web browser or through the Mobile App. 2. Go to Device → Misc. Configuration → Firmware Upload 3.
  • Page 11 Programming Wizard The Programming Wizard is not available through Wi-Fi using a web browser or through the Mobile app. Initial Setup Wizard Select an Option to Continue Quick Setup Import Configuration Exit Quick Setup Programming Wizard Screen Input Output Wi-Fi Exit From here, you have access to select the basic parameters you want to program without going through the entire configuration sequence.
  • Page 12 Programming Wizard Screen Screen Screen Number Select which screen you would like to configure. Screen 1 shown. Screen (1) Display Style None Gauge Setpoint Status Numeric Max Min Total Monitor Items outlined in this color indicate programming wizard.
  • Page 13 If you select Setpoint Status for your display, the next menu you see will be: Output Type Setpoint 1 Setpoint 2 If you have a Dual or Quad Relay module installed, you will see additional Setpoints (up to 6). Select which setpoint statuses you want to see on the screen.
  • Page 14 Unit for Counter A units The Unit for Counter selection will repeat for each counter selected in the previous step. If the Display Style is set for Gauge, the following two selections are shown. These values are for graphical display units and are not the calculated Rate minimum and maximum values. Minimum Display Value Maximum Display Value Apply settings...
  • Page 15 If the Signal Type chosen is Rate: Signal Type Counter Rate Rate Type Select Multiple to Scroll Rate A Rate B Rate C Unit for Rate A units The unit for Rate selection will repeat for each Rate Type selected in the previous step. If the Display Style is set for Gauge, the following two selections are shown.
  • Page 16 Maximum Display Value Apply settings Save or cancel changes Apply Cancel Items outlined in this color indicate programming wizard.
  • Page 17 Once back at the main Programming Wizard menu, you can choose to setup the Input, Output, Wi-Fi or Exit. All of the options are shown here. The options you see will depend on the selections you make as you step through the programming. Programming Wizard Input Device /...

  • Page 18: Table Of Contents

    Operating Mode Counter Counter A selections: (Cont’d) Dual Count x1 Add/Subtract Quadrature x1 Quadrature x2 Quadrature x4 Dual Count Quadrature x1 Dual Count Quadrature x2 Count x2 Count x2 w/ Direction Dual Count x2 w/ Direction Counter B selections: None Batch Count x1 Dual Count x1 w/ Direction...
  • Page 19 Counter C selections: (Cont’d) Counter A - Counter B Batch Serial Slave If Counter B or Counter C Operating Mode is set for Batch, the Next selection is: Batch Source Setpoint 1 Setpoint 2 If you have a Dual or Quad Relay module installed, you will see additional Setpoints (up to 6). Decimal Point 0.00 0.000...
  • Page 20 Count Load for List A Range: -999999 to 999999 Scale Multiplier 0.01 Reset Action Zero Count Load Reset At Power-Up Apply settings Save or cancel changes Apply Cancel Items outlined in this color indicate programming wizard.
  • Page 21 Rate Configuration Rate Type Rate A Rate B Rate C Common Enable Rate If Enable Rate is OFF, then the next page is Apply settings. Rate A and Rate B Decimal Point 0.00 0.000 0.0000 Items outlined in this color indicate programming wizard.
  • Page 22 Scaling Type Enter Values Apply Signal Scaling Points Click here for more information on scaling rate inputs. Scaling Point 1 Range: 0.0 to 99999.9 If Apply Signal method is chosen, buttons to read the Input and then save Read Input Save Input the value will follow each scaling point.
  • Page 23 Display Point 1 Range: 0 to 999999 Scaling Point 2 Range: 0.0 to 99999.9 1000.0 Display Point 2 Range: 0 to 999999 1000 Repeats for each sucessive pair. Display Rounding Items outlined in this color indicate programming wizard.
  • Page 24 Low Cut Out Range: 0 to 999999 Apply settings Save or cancel changes Apply Cancel Rate C Rate C Parameters None Sum (A+B) Difference (A-B) Percent Ratio (A/B) Percent of Total A/(A+B) Percent Ratio (A-B)/B Items outlined in this color indicate programming wizard.
  • Page 25 Decimal Point 0.00 0.000 0.0000 Rate C Multiplier 1000 Apply settings Save or cancel changes Apply Cancel Items outlined in this color indicate programming wizard.
  • Page 26 Common Rate Low Update Time Range: 0.1 to 999.9 Sec Rate High Update Time Range: 0.2 to 999.9 Sec Maximum Capture Value Assignment Rate A Rate B Rate C Maximum Capture Delay Time Range: 0.0 to 999.9 Sec Items outlined in this color indicate programming wizard.
  • Page 27 Minimum Capture Value Assignment Rate A Rate B Rate C Minimum Capture Delay Time Range: 0.0 to 999.9 Sec Apply settings Save or cancel changes Apply Cancel Items outlined in this color indicate programming wizard.
  • Page 28 Programming Wizard Output Device / Setpoint Setpoint Number Setpoint 1 Setpoint 2 Setpoints 3 to 6 will show based on the Dual Relay (Setpoint 3-4) or Quad Relay (Setpoint 3-6) module installed. Device / Setpoint (1) Setpoint Assignment None Counter A Counter B Counter C Rate A...
  • Page 29 Setpoint Action Latched Timed Out Boundary The following menus will vary depending on the Setpoint Assignment and Setpoint Action selected. Output Logic Normal Reverse Configure List A/B List A Config List B Config Setpoint Value for List A Range: -199999 to 999999 Items outlined in this color indicate programming wizard.
  • Page 30 Setpoint Tracking Setpoint 1 Setpoint 2 Setpoint 3 Setpoint 4 Setpoint 5 Setpoint 6 CLd A CLd B CLd C Output Power-Up State Save Counter Auto Reset None Zero at Start Activation Count Load at Start Activation Zero at End Activation Count Load at End Activation Items outlined in this color indicate programming wizard.
  • Page 31 Output Reset with Count Reset Output Reset at Sn + 1 Sn-Str Sn-End Activation Boundary Type High Acting Low Acting Hysteresis Range: 0 to 5999 Items outlined in this color indicate programming wizard.
  • Page 32 Output Timed Out Range: 0.0 to 599.9 Sec 1.00 Rate Timed Output One-Shot Apply settings Save or cancel changes Apply Cancel Items outlined in this color indicate programming wizard.
  • Page 33 Programming Wizard Wi-Fi Network / Wi-Fi Enable Wi-Fi Disables the Wi-Fi/Remote operations Network / Wi-Fi Enable Wi-Fi To use Wi-Fi, Admin Password should be enabled Caution: There is no default password to unlock your unit if you forget the password you have entered. Make sure to place a copy of your password in a secure location to ensure you are not locked out.
  • Page 34 System / Account Set Admin Password Enter New Password for Admin Click to Re-enter and Confirm Password System / Account Set Admin Password Re-Enter New Password for Admin System / Account Set Admin Password Re-Enter New Password for Admin Password Match. Confirm to proceed Ignore Confirm Items outlined in this color indicate programming wizard.
  • Page 35 Network / Wi-Fi SSID Network / Wi-Fi Password ********* After setting your Wi-Fi password, the following menu will appear. After making your selection it will return you to the Programming Wizard main menu. Apply settings Save or cancel changes Apply Cancel Items outlined in this color indicate programming wizard.
  • Page 36 Import Configuration Misc. / Import/Export Import Config from SD Card Filename config.txt Import Status: The file name must be config.txt for a successful import. When you click the import button, one of the following status messages will appear based on the microSD card: No SD Card detected - when the microSD card is not available in the slot, or the microSD card is an incompatible size or format...
  • Page 37 Device Configuration If you choose to skip the Quick Setup Programming Wizard, or did not enter a previous password, then the first time that you press the icon you will see: System / Account Enable Admin Password Security Enabled It is recommended to set an admin password to make the configuration secure. Make sure to remember your password.
  • Page 38 System / Account Set Admin Password Re-Enter New Password for Admin System / Account Set Admin Password Re-Enter New Password for Admin Password match. Confirm to proceed Confirm Ignore Pressing the confirm button displays the main device configuration menu page. From here you can choose from the System, Device Home Screen...
  • Page 39 Main Display Icon Descriptions Top left company logo returns you to the main display. Wi-Fi icons - The left icon indicates connection to network, the right icon indicates access point mode is enabled. Press from the Home screen to check Wi-Fi settings. Setpoint 1 &...
  • Page 40 System Display Configuration Brightness & Sleep Timer pdate Display Network Configuration Wi-Fi Set up Wireless Network Account Configuration User Access ser Account...
  • Page 41 Display Configuration System / Display Display Configuration Display Brightness Enable Sleep Timer Default setting is OFF. This setting is the amount of time before the display goes dim if there is no screen touch. Sleep Timer Range: 1 to 3600 seconds Display will dim after 200 Sec...
  • Page 42 Dark Theme Power Save Mode Power save mode when turned ON, will turn the background to Black. Off will turn the background to white. Apply settings Save or cancel changes Apply Cancel...
  • Page 43 Network Configuration System / Network Wi-Fi Configuration Network / Wi-Fi Enable Wi-Fi To use Wi-Fi, Admin Password should be enabled When set to OFF, Wi-Fi and Remote operations are disabled. If switch is set to OFF, the next menu you see will be to apply or cancel changes.
  • Page 44 System / Account Set Admin Password Enter New Password for Admin Click to Re-enter and Confirm Password System / Account Set Admin Password Re-Enter New Password for Admin Re-enter password to proceed. System / Account Set Admin Password Re-Enter New Password for Admin Password match.
  • Page 45 If Client is selected the menus are: Enable DHCP Client SSID Password ********* Enable Modbus/TCP over Wi-Fi Apply settings Save or cancel changes Apply Cancel...
  • Page 46 If Client is selected, and DHCP Client is OFF the menus are: Enable DHCP Client Dynamic Host Configuration Protocol is a network management protocol used to automate the process of configuring devices on IP networks. With it off, it allows the user to configure fixed parameters. IP Address Subnet Mask Gateway...
  • Page 47 Enable Modbus/TCP over Wi-Fi Apply settings Save or cancel changes Apply Cancel If Access Point is selected the menus are: Enable DHCP Client IP Address Subnet Mask Gateway SSID...
  • Page 48 Password ********* Encryption Mode WPA PSK WPA2 PSK WPA + WPA2 PSK The next 2 selections only appear if Enable DHCP Client is ON Starting Address Ending Address Enable Modbus/TCP over Wi-Fi Apply settings Save or cancel changes Apply Cancel...
  • Page 49 Account Configuration User Access User Account If Password is set to OFF, remote operation (Wi-Fi) will be disabled and configurations will be insecure. System / Account Enable Admin Password Password Recommended to make the configuration secure. Caution: There is no default password to unlock your unit if you forget the password you have entered. Make sure to place a copy of your password in a secure location to ensure you are not locked out.
  • Page 50 Change Admin Password Enter New Password for Admin Change Admin Password Enter New Password for Admin Click to Re-enter and Confirm Password System / Account Change Admin Password Re-Enter New Password for Admin Re-enter password to proceed. System / Account Change Admin Password Re-Enter New Password for Admin Password match.
  • Page 51 Modbus - read-only mode This Modbus read only mode applies only to Modbus protocol and not RLC protocol. Setting this switch ON will let the user do Modbus reads only over the various interfaces (Wi-Fi, User RS485, RS232 and Ethernet modules). No writes are allowed if this read-only mode is turned ON. Apply settings Save or cancel changes Apply...
  • Page 52 Device Signal Input Configuration Control Input, Counter & Rate Setup Input parameters SP & Analog Configuration Setpoint & Analog (Analog is only available with Analog module attached.) Setup SP & Analog parameters Function Configuration Function Key & User Input Setup Function...
  • Page 53 Device Modbus Configuration Modbus(ASCII/RTU/TCP) & RLC(ASCII) Setup Wired Communication Misc Configuration Import/Export & Factory Calibration,Firmware Update..
  • Page 54 Signal Input Configuration Device / Signal Input Counter Input Configuration Counter Configuration Rate Configuration Counter Input Configuration This section sets the input configuration hardware type for counter and rate input signals. Device / Control Input Input Input A (Count 1 input) Input B (Count 2 input) Digital Filter Input logic Selection for Counter...
  • Page 55 Logic Selection for Input Magnetic Source Sink Factory setting is Sink (PM50 input terminal is high or at a voltage and the external sensor is taking it low.) See Signal Inputs in specifications for more details. Apply settings Save or cancel changes Apply Cancel Counter Configuration...

  • Page 56: Dual Count X1 Add/Subtract

    Operating Mode Counter Counter A (Input 1) None Does not count Count x1 Adds Input A falling edge Count x1 w/ Direction Adds Input A falling edge if Input B is high. Subtracts Input A falling edge if Input B is low.

  • Page 57: Dual Count Quadrature X1

    Counter B (Input 2) None Does not count Batch Counter B internally counts the number of output activations of the selected setpoint(s). The count source is selected in the Yes/No sub-menu shown for each setpoint. Count x1 Adds Input B falling edge. Dual Count x1 w/ Direction Adds Input B falling edge if User 2 is high.
  • Page 58 Counter C (Cont’d) Counter A - Counter B ‡ Counter C counts the incoming pulses from Counter A and B inputs as per Counter A and B modes of operation and subtracts the B counts from the A counts. The result is scaled only according to Counter C parameters.
  • Page 59 Scale Factor for List A Scale Factor Range (0.00001 to 9.99999) 1.00000 The number of input counts for the selected counter is multiplied by the scale factor and the scale multiplier to obtain the desired process value. A scale factor of 1.00000 will result in the display of the actual number of input counts.
  • Page 60 Reset Action Zero Count Load When the selected counter is reset, it returns to zero or the counter count load value. This reset action applies to all selected counter resets, except a setpoint generated counter auto reset programmed in Setpoint Configuration -> Counter Auto Reset. Reset At Power-Up The selected counter may be programmed to reset at each unit power-up.
  • Page 61 Rate Configuration Rate Type Rate A Rate B Rate C Common Select the Rate parameters to be programmed. Rate A is Input 1 and Rate B is Input 2. Enable Rate Select ON to measure the rate (speed) of pulses on the corresponding Input. Rate measurement is independent of the corresponding Counter count modes.
  • Page 62 Scaling Type Enter Values Apply Signal Select whether the rate input values for scaling points will be entered by touchpad or by applying a signal. If Input Values and corresponding Display Values are known, the Enter Values scaling style can be used.
  • Page 63 frequency. For typical zero based frequency measurements, the lower point is set to display 0 for 0 Hz input (factory setting) and the upper point set to display the desired value for a given input frequency. For non-zero based applications, the lower point is set to the desired display for 0 Hz input. For non-linear processes, up to 10 scaling points may be used to provide a piece-wise linear approximation representing the non-linear function.
  • Page 64 Scaling Point 2 Range: 0.0 to 99999.9 1000.0 Enter or apply the corresponding Rate Input Value for Scaling Point 2. This value must be greater than Scaling Point 1. Display Point 2 Range: 0 to 999999 1000 Enter the desired Display Point value for Scaling Point 2. Repeats for each sucessive pair.
  • Page 65 Low Cut Out Range: 0 to 999999 The Low Cut Out value forces the Rate display to zero when the Rate display falls below the value entered. Apply settings Save or cancel changes Apply Cancel Rate C Rate C Parameters None Rate C disabled.
  • Page 66 Decimal Point 0.00 0.000 0.0000 Rate C Multiplier 1000 Set the Rate C Multiplier to obtain the desired Rate C display resolution. For Rate C percentage calculations, the result is internally multiplied by 100 to show percent as a whole number. By using a Display Multiplier of 10, 100 or 1000, along with the proper decimal point position, percentage can be shown in tenths, hundredths or thousandths respectively.
  • Page 67 Common Rate Low Update Time Range: 0.1 to 999.9 Sec The Low Update Time is the minimum amount of time between display updates for all enabled Rate displays. Small Low Update Time values may increase the possibility of the display indicating an unstable input (jittery display).
  • Page 68 Maximum Capture Delay Time Range: 0.0 to 999.9 Sec When the assigned Rate value is above the present Maximum rate value for the entered amount of time, the unit will capture that Rate value as the new Maximum value. A delay time helps to avoid false captures of sudden short spikes.
  • Page 69 SP & Analog Configuration Device / SP & Analog Configuration Setpoint SSR Logic Setpoint Configuration Analog Configuration (If Analog Module is installed) Setpoint SSR Logic Device / SSR Logic SSR Logic for Setpoint 1 and 2 Source Sink This setting only applies to Setpoints 1 and 2. Setting the SSR Logic for Source requires an external DC supply be connected per the wiring drawing shown in the Installation Guide.
  • Page 70 Setpoint Configuration Device / Setpoint Setpoint Number Setpoint 1 Setpoint 2 If Dual Relay Module is installed you will see 4 setpoint selections and if the Quad Relay Module is installed you will see 6 setpoint selections. Device / Setpoint (1) Setpoint Assignment None Counter A...
  • Page 71 Setpoint Action Latched Timed Out Boundary Select the desired Setpoint Output Action. Choose No (no action) if a setpoint is unused or for manual mode operation. See “Setpoint (Alarm) Figures for Rate” for a visual detail of Rate Assigned setpoint actions.
  • Page 72 Output Logic Normal Reverse Annunciator Type Normal Flash Reverse Off - Disables display setpoint annunciators. Normal - Displays the corresponding setpoint annunciators of “on” setpoint alarm outputs. Flash - Flashes the corresponding setpoint annunciators of “on” setpoint alarm outputs. This setting has precedence over normal. Reverse - Displays the corresponding setpoint annunciators of “off”...
  • Page 73 Setpoint Active Color Orange Setpoint Active Color is the color used in the Setpoint Status Widget and icons to show the active state of the configured setpoint individually. Clear is for not configured. Green is for not active. There are no flash or reverse selections.
  • Page 74 Setpoint Tracking Setpoint 1 Setpoint 2 Setpoint 3 Setpoint 4 Setpoint 5 Setpoint 6 CLd A CLd B CLd C The value of the setpoint being programmed will track the entered selection’s value. Tracking means that when the selection’s value or Count Load value is changed, the setpoint value will also change (or follow) by the same amount.
  • Page 75 Counter Auto Reset None Zero at Start Activation Count Load at Start Activation This automatically resets the display value of the Setpoint Assigned Counter each time the setpoint value is reached. The automatic reset can occur at output start or output end if the setpoint output action is programmed for timed output mode.
  • Page 76 and then times out (deactivates). This selection only applies if the Sn + 1 setpoint action is Timed Out. (Example: S1 deactivates when S2 is activated and then times out.) The last setpoint will wrap around to the first. This parameter is only available for Counter assigned setpoints. Output Timed Out Range: 0.0 to 599.99 Sec 1.00...
  • Page 77 area. Once in the output “off” area, the setpoint will function per the description for low acting activation (boundary) type. The next menus are for Rate Outputs only Hysteresis Range: 0 to 59999 The hysteresis value is added to (for low acting), or subtracted from (for high acting), the setpoint value to determine at what value to deactivate the associated setpoint output.
  • Page 78 Rate Timed Output One-Shot If the setpoint action is Timed Out and the setpoint is assigned to Rate, select Yes to have the output activate for a single pulse (one-shot) when the assigned Rate display meets the setpoint activation requirements. Select No for ON / OFF output cycling per the “Setpoint (Alarm) Figures For Rate” diagram. Apply settings Save or cancel changes Apply...
  • Page 79 Setpoint (Alarm) Figures for Rate (For Reverse Logic, The Alarm state is opposite.) LOW ACTING WITH NO DELAY HIGH ACTING WITH NO DELAY HIGH ACTING WITH DELAY LOW ACTING WITH DELAY...
  • Page 80 LOW ACTING WITH TIMEOUT HIGH ACTING WITH TIMEOUT...
  • Page 81 Analog Configuration This menu is only available with the Analog Output Module installed. Device / Analog Analog Output Type 4 to 20 mA 0 to 20 mA 0 to 10 VDC -10 to +10 VDC Analog Output Assignment None Counter A Counter A Counter A Rate A...
  • Page 82 Analog Low Scale Range: -199999 to 999999 Enter the Analog Output Assignment display value that corresponds to the lowest output signal of the selected Analog Output Type. Analog High Scale Range: -199999 to 999999 10000 Enter the Analog Output Assignment display value that will corresponds to the highest output signal of the selected Analog Output Type.
  • Page 83 Enable Function Key The function keys can perform their function through Wi-Fi. To show or hide the function keys, press the bottom left arrow while in the Display mode. Function Key There are only two Function keys on the 3.5 inch PM-50.
  • Page 84 Rename Key Rename Key lets you create your own 5 character label for the Function Key you are configuring. Select Function A function key can be assigned to perform more than one function at the same time. Momentary actions take place after the release of the key.
  • Page 85 Print This Function Key issues a single block print through the serial port when activated, and the serial type is set to RLC Protocol. The data transmitted during a print request and the serial → → type is programmed in Modbus Configuration RS485 Configuration Communication...
  • Page 86 User Input Configuration Device / User Input SNK/SRC User Input Functions / Active Status Sink Source Sink refers to active state when user voltage is low. Source refers to active state when user voltage is high. Apply settings Save or cancel changes Apply Cancel...
  • Page 87 User Input / Functions Hardware Input User Input 1 User Input 2 Note: User Inputs must be configured as none when Counters are programmed for Dual Quad or Dual Count with Direction. Function The user input can be assigned to perform more than one function at the same time. None No function is performed if activated.
  • Page 88 Momentary Output Reset When activated (momentary action), the unit resets the setpoint outputs selected. Display Brightness When activated (momentary action), the display brightness changes to the next level. Select Parameter List Two lists of input scaling points and setpoint values (including band and deviation) are available.
  • Page 89 Modbus Configuration Device / Communication RS485 Configuration RS232 Configuration (With Module installed) Ethernet Configuration (With Module installed) RS485 or RS232 Configuration The menus for RS485 and RS232 Configuration are the same. Communication Type Modbus ASCII Modbus RTU RLC Protocol (ASCII) None Baud Rate 1200...
  • Page 90 Data Bit Parity Bit None Even Stop Bits Modbus Station Number Range: 1 to 247...
  • Page 91 ON for abbreviated print transmissions (parameter data only). This will affect all the parameters selected in the print options. Transmit Delay Range: 0 to 250 ms Following a transmit value (“*” or ($) terminator) or Modbus command, the PM-50 will wait this minimum amount of time in seconds before issuing a serial response.
  • Page 92 Print Options Counter A Counter B Counter C Rate A Rate B Rate C Maximum Minimum Scale Factor Counter Load Values Setpoint Values Apply settings Save or cancel changes Apply Cancel...
  • Page 93 Ethernet Configuration Enable DHCP Client IP Address Subnet Mask Apply settings Save or cancel changes Apply Cancel...
  • Page 94 Misc. Configuration Device / Misc. Import / Export Configuration Factory Configuration Firmware Upload Device & Module Calibration About this Device Reboot the Device Misc. / Import/Export Import Config from SD Export Config to SD Import ScalePoint from SD Export ScalePoint to SD Selecting either import option will bring up the following warning: This will Reboot the device Continue...
  • Page 95 The config.txt file can be viewed and edited using a text editor. However, caution must be taken because one wrong space, entry, or deletion can cause the file to be not readable by the PM-50. Use this with caution.
  • Page 96 Import ScalePoint from SD Card Filename scaling.txt Import Status: Export ScalePoint to SD Card Filename scaling.txt Export Status: After completing the import / export operation, press the left arrow twice to return to the main Misc Configuration Menu.
  • Page 97 Factory Configuration Misc. / Factory Enable Screen Calibration This is the Factory Default setting. Enable Screen Calibration Device Requires Reboot This setting will allow calibration of the Touch screen upon reboot of the device. If calibration of the screen is done incorrectly, a reboot will allow the calibration to be done again. Remember to turn off after successful calibration.
  • Page 98 Perform Factory Default Setting this switch to ON brings up the following warning screen. Pressing the button Proceed immediately resets and restarts the device. All user settings are returned to Factory Default, including the Admin password. This will also restart the Programming Wizard. Warning This will reset all device con guration to Factory Default values.
  • Page 99 Enable Programming Wizard Device Requires Reboot This will automatically go back to off after reboot. The Wizard will have the previous programmed configurations. Apply settings Save or cancel changes Apply Cancel...
  • Page 100 Firmware Upload Misc. / Firmware Upload Firmware details SD Card Firmware Firmware Name Firmware Version Active Firmware Firmware Name Firmware Version Firmware details are displayed with an Upload button. It will show the SD card firmware version and the firmware version presently in the PM50. The gpmcore.fwb file will auto detect the PM50 model. It is strongly suggested that the configuration in the PM50 (config.txt file) be saved to a separate SD card before updating to a new firmware version.
  • Page 101 Firmware Upload Status Firmware Name Firmware Version Verifying Package Complete Fetching Binary Please wait ... During the upload of the firmware, a screen appears showing the status of the upload. Once the upload is complete the unit resets to the main menu. User settings from the previous firmware are retained. Note: Do not disconnect power during the upload process.
  • Page 102 Device & Module Calibration Device / Calibration Device Calibration AO Module Calibration Device Calibration The unit has been fully calibrated at the factory. Scaling to convert the input signal to a desired display value is performed in Signal Input Configuration. If the unit appears to be indicating incorrectly or inaccurately, refer to Troubleshooting before attempting to calibrate the unit.
  • Page 103 AO Module Calibration Enter Access Code Access Code for calibration is 48. Input Range 4 to 20 mA 0 to 20 mA 0 to 10 VDC -10 to +10 VDC Select the Input Range for the Analog Output that you want to calibrate. Zero-offset ‡...
  • Page 104 Save Calibration Values SAVE CANCEL If you choose to CANCEL Calibration, the following menu appears. Continue Calibration ? CONTINUE EXIT...
  • Page 105 About this Device Misc. / About About this Device General Information Size: Type: Firmware Version: Secure Boot: Serial Number: Part Number: All of the General Information about this device will be displayed on this screen. Pressing the next arrow will advance through the screens showing the information about Network and module information (MAC ID, IP address etc).
  • Page 106 The following is an example of what will be displayed depending on the modules you have installed. About this Device Modules Part Number: Analog Out: PMM000I0AN000000 RS232: PMM000CM23200000 Ethernet: PMM000CMENT00000 Quad Relay: PMM000I0RL400000: Reboot the Device Misc. / Reboot This will Reboot the device Continue Exit Pressing continue immediately reboots (power cycles) the unit and returns you to the main display, while...
  • Page 107 Home Screen Screen Configuration Screen Set-up Update screen This section allows the user to configure the 4 screens to display the device status and statistics based on the display size. These additional page views can be accessed from the Main Display by swiping either left or right.
  • Page 108 Apply settings Save or cancel changes Apply Cancel Widget Selection Screen Screen Number If Large Numeric Mode was enabled, 3 and 4 are replaced with Large Numeric selection. Screen (1) Display Style None Gauge Setpoint Status Numeric Max Min Total Monitor...
  • Page 109 Signal Type Counter Rate The Input value shown will be based on the active scaling List A or B and the active Absolute or Relative selection. Counter Type Select Multiple to Scroll Counter A Counter B Counter C Rate Type Select Multiple to Scroll Rate A Rate B...
  • Page 110 Scroll Update Time Range: 3 to 15 Seconds The Maximum and Minimum Display Values are only applicable for Gauge. The valid range for Gauge widget inputs is -199999 to 999999. The min values must be lower than the max values. These values are for graphical display units and are not the calculated Rate minimum and maximum values.
  • Page 111 Percentage Band 1 Color Band 2 Blue Green Yellow Percentage Band 2 Color Band 3 Blue Green Yellow...
  • Page 112 Percentage Band 3 Setpoint Status Setpoint Status will display the independent status of the setpoint using a colored circle. It will not show the value for the setpoint. Setpoint 1 and 2 are always shown as part of the main icons. Max Min Total Monitor The Max and Min displays will always show with this selection even though they may not be activated.
  • Page 113 Specification information for specific modules can be found at the same location. Specifications Note: The PM-50 4.3 inch host accepts a maximum of 5 modules while the 3.5 inch host accepts a maximum of 3 modules. Only one module from each function type (i.e. communication, relay, analog output) can be installed.
  • Page 114 If Setpoint(S) Enabled: 20 KHz for any mode except Quadrature x1 (19 KHz), Quadrature x2 (17 KHz) and Quadrature x4 (10 KHz) RATE DISPLAYS: 6-digit Maximum Frequency: 50 KHz Minimum Frequency: 0.001 Hz Display Update Time: 0.1 to 999.9 seconds Accuracy: ±0.01% SIGNAL INPUTS (INPUT A and INPUT B): Software configurable input types including switch contacts, TTL outputs, magnetic pickups and all...
  • Page 115 RS485 SERIAL PORT: Uses Modbus protocol Baud Rate: Up to 115,200 Data Format: 7/8 bit; odd, even, or no parity; 1 or 2 stop bits Isolation: 500 Vrms to sensor, user power and digital inputs. Not isolated to solid state outputs Wi-Fi CAPABILITIES: Wi-Fi: Power output up to 20.5 dBm Frequency:...
  • Page 116 CERTIFICATIONS AND COMPLIANCES: CE Approved EN 61326-1 Immunity to Industrial Locations Emission CISPR 11 Class A IEC/EN 61010-1 RoHS Compliant FCC ID #: 2AC7Z-ESP32WROOM32U UL Hazardous: File # E317425 Type 4X Indoor/IP65 Enclosure rating (Face only) for all models IP20 Enclosure rating (Rear of unit) CONNECTIONS: High compression spring-clamp terminal block Wire Strip Length: 0.32-0.35"...
  • Page 117 DIMENSIONS In inches (mm) 4.3 Inch Display 3.63 (92.20) WITHOUT MODULES 3.34 1.76 2.46 (84.91) (44.80) (62.42) 0.56 6.31 (160.40) 4.87 (123.59) 3.62 (91.95) (14.25) WITH MAXIMUM OF 5 MODULES 3.5 Inch Display 3.43 (87.17) WITHOUT MODULES 1.76 3.23 2.46 (44.80) (82.09) (62.42)
  • Page 118 Placing the unit near devices that generate excessive heat should be avoided. The PM-50 4.3 and 3.5 inch models meet NEMA 4X/IP65 requirements when properly installed. This unit is designed for through-panel mounting. The mounting surface should have a minimum thickness of 0.04"...
  • Page 119 Ordering Information DESCRIPTION PART NUMBER 4.3" Input Graphical Panel Meter PM500D0400800F00 Digital 3.5" Input Graphical Panel Meter PM500D0301600F00 Digital Accessories TYPE DESCRIPTION PART NUMBER RS232 Serial Communications Module PMM000CM23200000 Ethernet Communications Module PMM000CMENT00000 Analog Output Module PMM000I0AN000000 Modules Dual Setpoint Relay Output Module PMM000I0RL200000 Quad Setpoint Relay Output Module PMM000I0RL400000...
  • Page 120 METER INSTALLATION Slide the panel gasket over the rear of the unit to the back of the bezel. The unit should be installed fully assembled. Insert the unit into the panel cutout. 4.3 Inch Meter 3.5 Inch Meter While holding the unit in place, place either the top or bottom panel latch on the rear of the unit closest to the panel cutout so that the tabs of the panel latch engage in the slots on the case.
  • Page 121 To a 4.3 inch Host It is recommended that a relay 1. To install a module on the tall module be installed in Module side of a 4.3 inch host, align Position 1 only (shown below). the latches of the module with the host case such that the backplane connector shroud Short Side...
  • Page 122 Module Installation Variations for 4.3 Inch (1/8 DIN) PM-50 The modules can be installed in various locations as shown below. Some installations require the Rear Interconnect Cover and Spacer Module (P/N – PMM000CP00800000). The cover connects the communication to the modules and may shorten the depth of the overall installation. A maximum of 5 modules may be connected.
  • Page 123 Five Module Installation - Top View Communication Flow Rear Interconnect Cover Required Top View...
  • Page 124 To a 3.5 inch Host 1. Align the latches of the module with It is recommended that a relay module the host case such that the backplane be installed directly onto the back of the connector shroud on the module cover host (shown below), not on the back of aligns with the backplane connector any other module.
  • Page 125 Wiring All power, input and output (I/O) wiring must be in accordance with Class I, Division 2 wiring methods and in accordance with the authority having jurisdiction. Electrical connections are made via pluggable spring terminal blocks. It is recommended that the power supplied to the meter be protected by a fuse or circuit breaker.
  • Page 126 Ensure software configuration is set to correspond with your required application wiring. Magnetic Pickup AC Inputs From Tach Generators, Etc. Two Wire Proximity, Current Source Input A Input A Input A Resistor to limit current 2.2KΩ to 2.5 mA MAX. MAGNETIC PICKUP Software Configuration - Select Mag Mode Current Sinking Output...
  • Page 127 USER INPUT WIRING User Input terminal does not need to be wired in order to remain in the inactive state. Sinking Logic Sourcing Logic When the parameter is When the parameter is programmed to Low, check programmed to High, check with device GUI option.
  • Page 128 Service Information We sincerely hope that you never experience a problem with any of our products. If you do need service, call Red Lion at 1-877-432-9908 for Technical Support. A trained specialist will help you determine the source of the problem. Many problems are easily resolved with a single phone call.
  • Page 129 LIMITED WARRANTY (a) Red Lion Controls Inc. (the “Company”) warrants that all Products shall be free from defects in material and workmanship under normal use for the period of time provided in “Statement of Warranty Periods” (available at www.redlion.net) current at the time of shipment of the Products (the “Warranty Period”).
