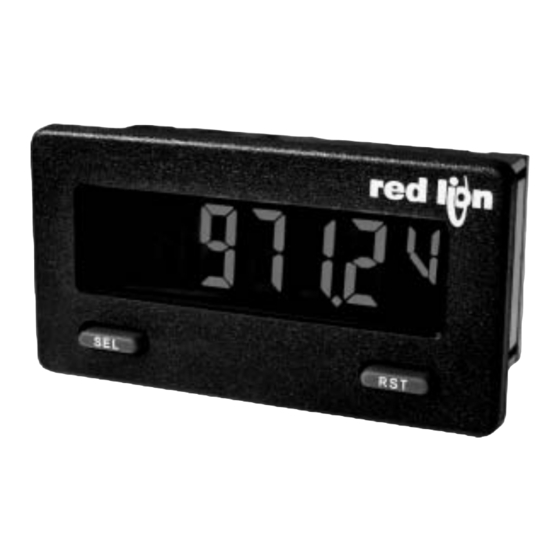

MODEL CUB5V - MINIATURE ELECTRONIC 5-DIGIT DC VOLTMETER
U L
C C
US LISTED
US LISTED
R
IND. CONT. EQ.
GENERAL DESCRIPTION
The CUB5 provides the user the ultimate in flexibility, from its complete user
programming to the optional setpoint control and communication capability.
The CUB5V accepts a DC Voltage input signal and provides a display in the
desired unit of measure. The meter also features minimum and maximum
display capture, display offset, units indicator, and programmable user input.
The display can be toggled either manually or automatically between the
selected displays.
The CUB5 display has 0.48" (12.2 mm) high digits. The LCD is available in
two versions, reflective and red/green backlight. The backlight version is user
selectable for the desired color and also has variable display intensity.
The capability of the CUB5 can be easily expanded with the addition of
option cards. Setpoint capability is field installable with the addition of the
setpoint output cards. Serial communications capability for RS232 or RS485 is
added with a serial option card.
The CUB5 can be powered from an optional Red Lion Micro-Line/Sensor
Power Supply (MLPS), which attaches directly to the back of a CUB5. The
MLPS is powered from 85 to 250 VAC and provides up to 400 mA to drive the
unit and sensors.
VOLTAGE
The CUB5V is the DC Volt meter. It features 4 voltage input ranges, that are
selected by the user via a programming jumper and software input range
selection. The ranges consist of following: 0 to 200 mV, 2 V, 20 V, 200 V. Users
should select the appropriate voltage range that covers their maximum input.
DIMENSIONS In inches (mm)
SEL
2.95 (74.9)
Downloaded from
Elcodis.com
electronic components distributor
51EB
Note: Recommended minimum clearance (behind the panel) for mounting clip installation is 2.15" (54.6) H x 3.00" (76.2) W.
1.54 (39.1)
RST
.15 (3.8)
 FOUR SELECTABLE D.C. RANGES
0 to 200 mV, 2 V, 20 V, 200 V
 MINIMUM AND MAXIMUM DISPLAY CAPTURE
 LCD, REFLECTIVE OR RED/GREEN LED BACKLIGHTING
 0.48" (12.2 mm) HIGH DIGITS
 OPTIONAL SETPOINT OUTPUT CARDS
 OPTIONAL SERIAL COMMUNICATIONS CARDS (RS232 or RS485)
 OPTIONAL USB PROGRAMMING CARD
 OPERATES FROM 9 TO 28 VDC POWER SOURCE
 FRONT PANEL OR CRIMSON PROGRAMMABLE
 DISPLAY COLOR CHANGE CAPABILITY AT SETPOINT OUTPUT
 NEMA 4X/IP65 SEALED FRONT BEZEL
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in this
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use this meter to directly command motors, valves, or other actuators
not equipped with safeguards. To do so can be potentially harmful to persons or
equipment in the event of a fault to the meter.
CAUTION: Risk of Danger.
Read complete instructions prior to
installationand operation of the unit.
.13 (3.3)
1.29 (32.8)
1.71
(43.4)
1
Bulletin No. CUB5V-E
Drawing No. LP0645
Released 10/10
CAUTION: Risk of electric shock.
+.024
1.30
-.000
+6
(33
)
-0
+.025
2.68
-.000
+8
(68
)
-0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CUB5V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for red lion CUB5V

  • Page 1 VOLTAGE The CUB5V is the DC Volt meter. It features 4 voltage input ranges, that are selected by the user via a programming jumper and software input range selection. The ranges consist of following: 0 to 200 mV, 2 V, 20 V, 200 V. Users should select the appropriate voltage range that covers their maximum input.
  • Page 2: Ordering Information

    RDERING NFORMATION TYPE MODEL NO. DESCRIPTION PART NUMBER DC Volt Meter with reflective display CUB5VR00 CUB5 CUB5V DC Volt Meter with backlight display CUB5VB00 CUB5RLY Single Relay Option Card CUB5RLY0 CUB5SNK Dual Sinking Open Collector Output card CUB5SNK0 Optional Plug-in Cards...
  • Page 3: Installation Environment

    PTIONAL ARDS ADDING OPTION CARDS : 0.7 V @ 100 mA DS ON : 30 VDC The CUB5 meters can be fitted with optional output cards and/or serial DS MAX Offstate Leakage Current: 0.5 mA max. communications cards. The details for the plug-in cards can be reviewed in the specification section below.
  • Page 4: Plug -I N Cards

    3.0 I NSTALLING ARDS The Plug-in cards are separately purchased option cards that perform specific CAUTION: The Plug-in cards and main circuit board contain static functions. The cards plug into the main circuit board of the meter sensitive components. Before handling the cards, discharge static charges from your body by touching a grounded bare metal object.
  • Page 5: Input Wiring

    4.3 INPUT WIRING Voltage Signal CAUTION: Power input common is NOT isolated from user and input (self powered) commons. In order to preserve the safety of the meter application, the power input common must be suitably isolated from hazardous live earth referenced voltage;...
  • Page 6: Programming Menu

    5.0 R EVIEWING THE RONT UTTONS AND ISPLAY BUTTON DISPLAY MODE OPERATION ENTERING PROGRAM MODE PROGRAMMING MODE OPERATION Index display through enabled values Press and hold for 2 seconds to activate Store selected parameter and index to next parameter Advances through the program menu Resets values (MIN/MAX) or outputs Increments selected parameter value or selection OPERATING MODE DISPLAY DESIGNATORS...
  • Page 7: Parameter Menu

    For Scaling Assignment Range Offset Setting Band Style Function Point Point 1 Point 1 Point 2 Point 2 Value SCALING STYLE CUB5V INPUT RANGE  StYLE  rAN6E RANGE RANGE APLY SELECTION SELECTION RESOLUTION RESOLUTION   200u 0. 2 u 200.00 mV...
  • Page 8 When the Input Display is below the present MIN value for the entered delay to the INP+ (positive) and COMM (negative) terminals of the CUB5V. Set time, the meter will capture that display value as the new MIN reading. A delay the output of the voltage source to zero.
  • Page 9 6.3 MODULE 3 - D ISPLAY AND RONT ANEL UTTON ARAMETERS 3-dSP PARAMETER MENU 3-dSP Backlight Unit Only dSP-t ZErO ScroL UNItS COLOr d-LEV CodE Display Front Panel Front Panel Zero Display Display Units Display Display Programming Update Time Display Reset Enable Scroll Indicator...
  • Page 10 6.4 MODULE 4 - S ETPOINT UTPUT ARAMETERS 4-SPt PARAMETER MENU 4-SPt Backlight Unit Only SPSEL Act-n SPt-n HYS-n tON-n tOF-n rSt-n rEn-n Stb-n ChC-n Setpoint Setpoint Setpoint Hysteresis On Time Off Time Output Reset Output Reset Standby Change Display Select Action Value...
  • Page 11 Company’s option. The Company disclaims all liability for any affirmation, promise or representation with respect to the products. The customer agrees to hold Red Lion Controls harmless from, defend, and indemnify RLC against damages, claims, and expenses arising out of subsequent sales of RLC products or products containing components manufactured by RLC and based upon personal injuries, deaths, property damage, lost profits, and other matters which Buyer, its employees, or sub-contractors are or may be to any extent liable, including without limitation penalties imposed by the Consumer Product Safety Act (P.L.
  • Page 12 CUB5V PROGRAMMING QUICK OVERVIEW Downloaded from Elcodis.com electronic components distributor...
