ETHERNET/IP ACCESS:

By Pressing the "EtherNet/IP
appears (Fig. 4).
This section is used to define the list of the EtherNet/IP slaves to read/write with the PROFINET Master.

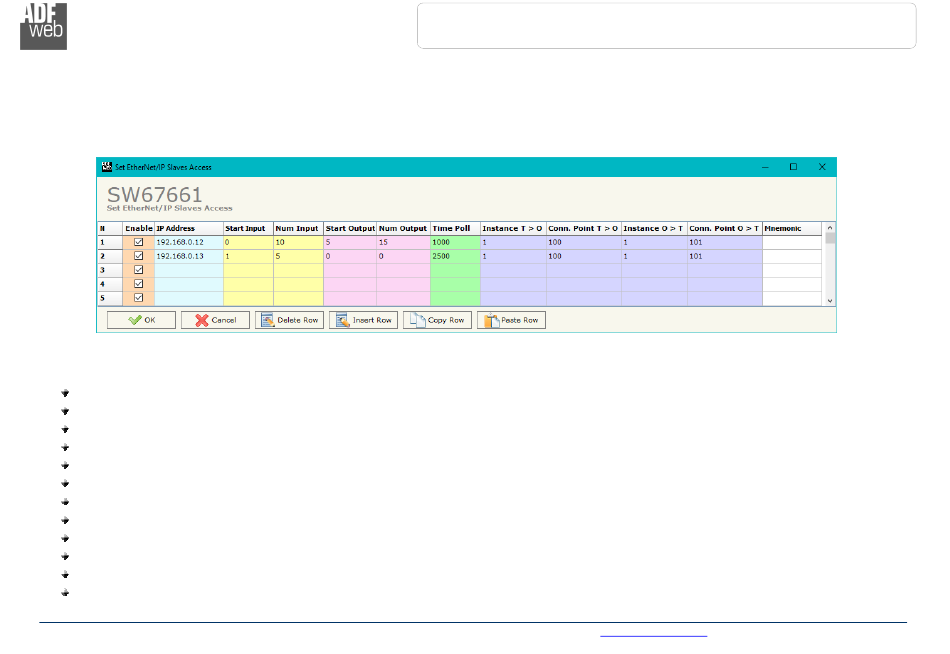

Figure 4: "Set EtherNet/IP Slaves Access" window
The means of the fields are:
If the field "Enable" is checked, the polling to the EtherNet/IP slave is enabled;
In the field "IP Address" the IP Address of the EtherNet/IP slave is defined;
In the field "Start Input" the starting Input byte of the EtherNet/IP slave to map on PROFINET side is defined;
In the field "Num Input" the number of consecutive Input byte to map on PROFINET side is defined;
In the field "Start Output" the starting Output byte of the EtherNet/IP slave to write from PROFINET side is defined;
In the field "Num Output" the number of consecutive Output byte to write from PROFINET side is defined;
In the field "Time Poll" the polling time in ms is defined;
In the field "Instance T >
In the field "Conn. Point T >
In the field "Instance O >
In the field "Conn. Point O >
In the field "Mnemonic" a brief description is defined.
ADFweb.com Srl – IT31010 – Mareno – Treviso
Access" button from the main window for SW67661 (Fig. 2) the window "Set EtherNet/IP Slaves Access"
O" the instance of the assembly for the Target to Originator data direction is defined;
O" the connection point of the assembly for the Target to Originator data direction is defined;
T" the instance of the assembly for the Originator to Target data direction is defined;
T" the connection point of the assembly for the Originator to Target data direction is defined;
