Compool CP3000 Installation & Operating Instructions Manual page 27

Operating Instructions
Compool Cp3000
Key #2:
Activates auxiliary equipment (such as a pool light).
Key #3:
Activates auxiliary equipment (such as a spa light).
Key #4:
Activates auxiliary equipment (such as a fountain).
USING YOUR SPA
To turn your Spa ON, simply press Key #S. The motorized valves will rotate to "spa circulation" position, the filter
pump will turn on, and the heater will heat the spa to the pre-selected spa temperature. The Display will indicate the
precise spa temperature, and the Heater Status Lamp will indicate whether the spa is heating or not.
To turn your Spa OFF, press Key #S. The heater will automatically shut-off. Provided the system is not resuming a
preset pool circulation cycle, the filter pump will continue to circulate the spa water for its 5 minutes safety delay in
order to cool down the system. After 5 minutes, the filter pump will shut-off and the motorized valves will return to
pool circulation position.
Note: Some heaters do not require a cool down cycle, so this safety feature may be turned off. See CUSTOM CLOCK
OPTIONS for details.
It is possible to program the Spa, so it will automatically shut-off after a predetermined length of time. See
COUNTDOWN TIMER PROGRAM for details.
POOL AND SPA HEATING

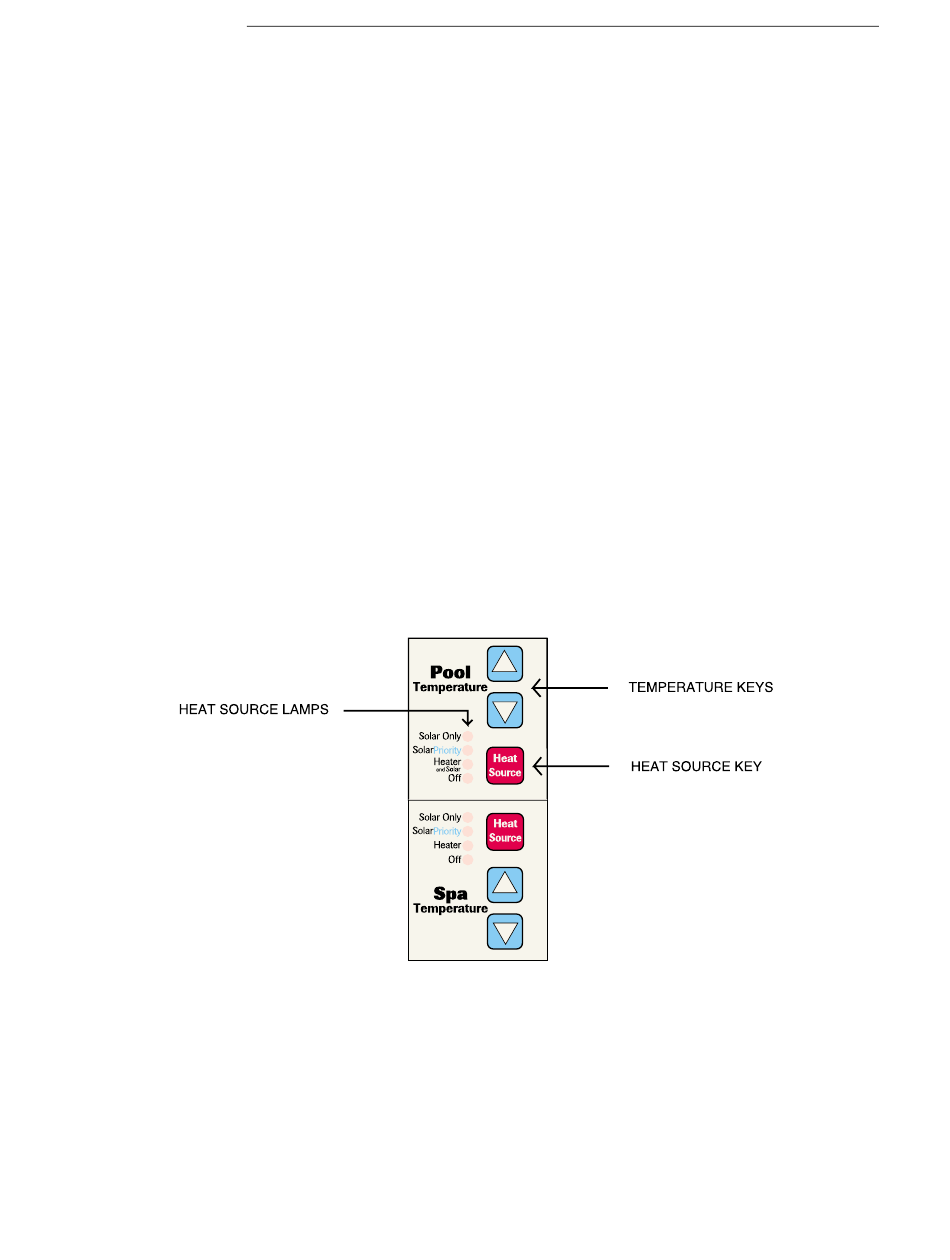

Concealed behind the left-side door are separate Temperature Controls for the Pool and Spa. Each control incorporates
a Heat Source Key, two Temperature Keys, and four Heat Source Lamps.
HEAT SOURCE KEY
It is possible to heat your pool and spa using conventional heat, solar energy (if applicable), or a combination of both.
Pressing the Heat Source Key will toggle through the different heating options, as follows:
• Off: Allows no heating.
24
