Heater:
Indicates whenever the heater is on.
Solar:
Indicates whenever the solar system (if applicable) is running.
Service:
Indicates whenever the equipment is being operated from the equipment site (i.e. the Auto/Service Key at the Lx3000
Power Center is in the Service position).
DISPLAY

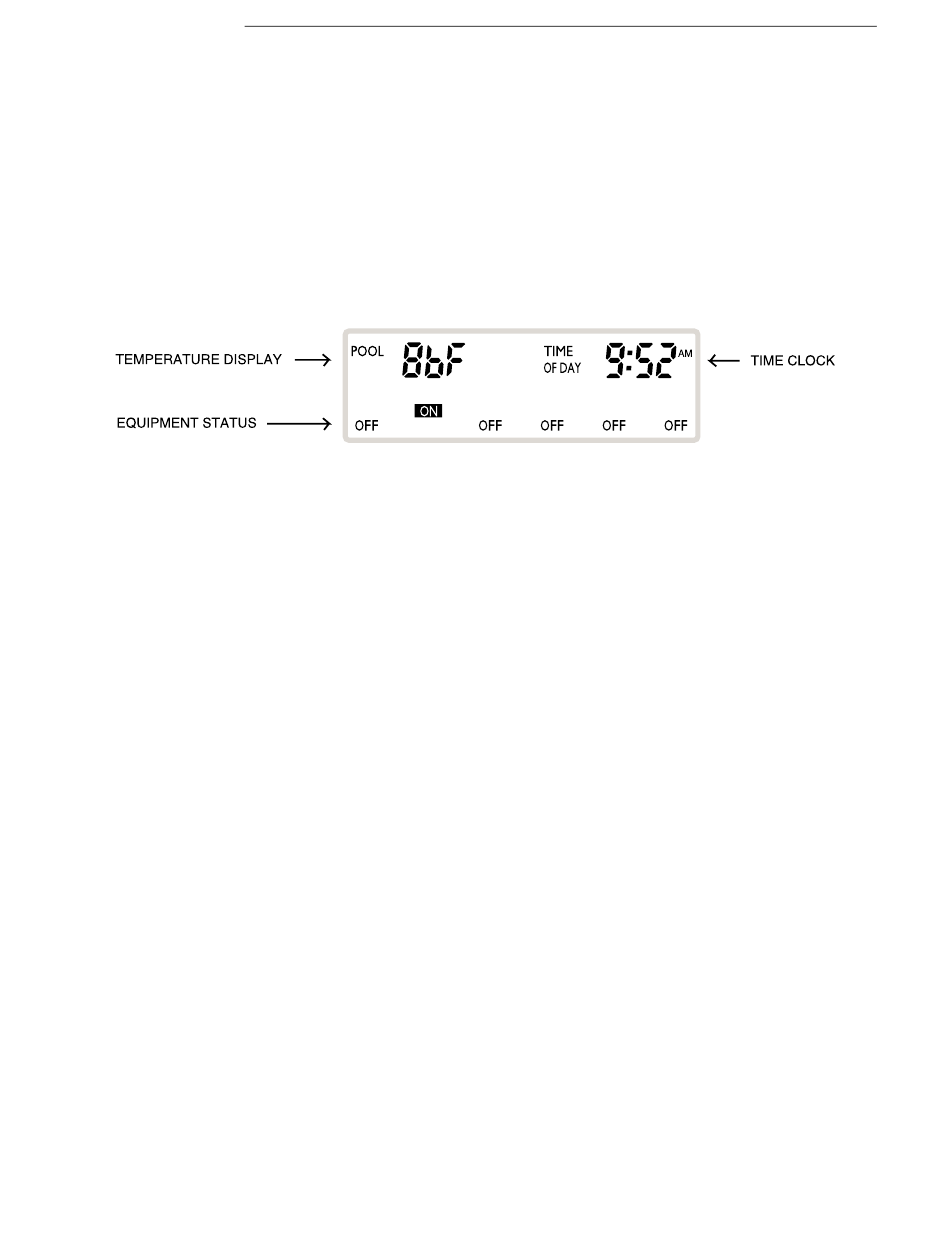

When the system is in the "normal operating mode", the TIME OF DAY and the ON/OFF Equipment Status of each
of the six Equipment Keys will be displayed. If the pool or spa is running, the actual POOL or SPA temperature will
be displayed.
EQUIPMENT KEYS
Six Equipment Keys are provided for activating the various pieces of equipment. Your Pool Builder should have
custom-labeled each Key for your specific application. To switch equipment ON or OFF, simply press the appropriate
Equipment Key once. An audible beep will sound indicating the Equipment Key has been pressed.
Equipment Status is indicated on the Display immediately above each Equipment Key:
• A solid ON indicates that the equipment has been activated.
• A solid OFF indicates that the equipment is switched off.
• A blinking ON indicates that the equipment will activate after its 5 minute safety delay has expired.
• A blinking OFF indicates that the equipment will turn off after its 5 minute safety delay has expired.
Key #S:
Rotates valves to spa circulation and activates filter pump. Activates spa heating. Disables pool cleaner (if applicable).
Key #P:
Activates filter pump and circulates water for pool filtration. Enables pool heating.
Key #1:
Activates pool cleaner (if applicable) after 5 minute safety delay. Automatically activates pool filtration if Key #P is
not already turned ON.
Note: If system does not incorporate a pool cleaner, Key #1 will activate auxiliary equipment (such as lighting).
