• Plug Intake (suction) Valve to INT VLV Socket.
• Plug Return Valve to RET VLV Socket.
• Plug Optional Solar Valve (if applicable) to SOL VLV Socket.
Note: To control additional valve actuators, see AUXILIARY VALVE ACTUATORS for details.

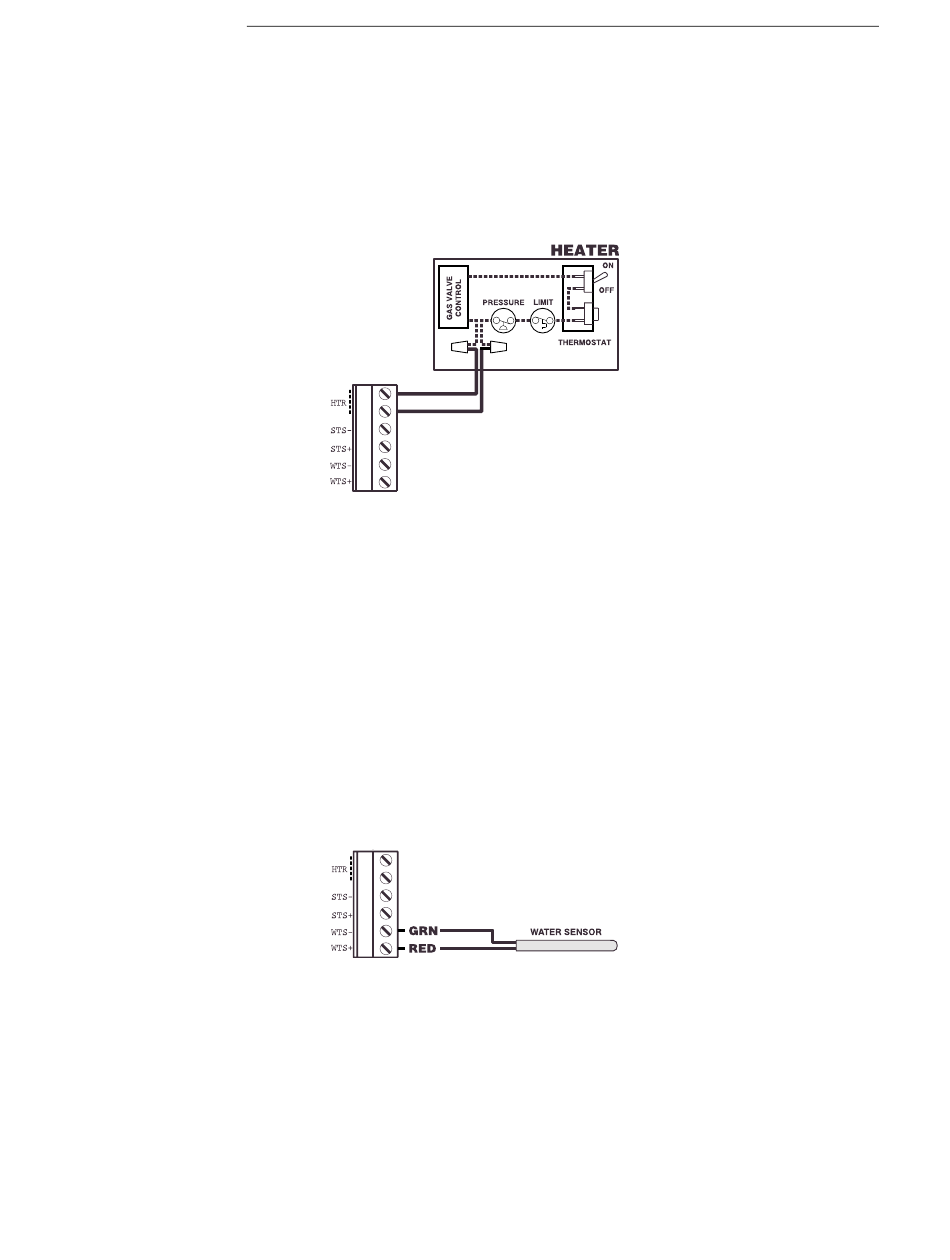

GAS HEATER CONNECTIONS
Follow these instructions to connect a gas heater (millivolt or electronic-ignition) or propane heater:
1. Cut sufficient 2-conductor cable (25 ft. is included with Accessory Kit) to run between the heater and the
Lx3000.
2. Inside the heater, interrupt wire between thermostat and pressure switch (where fireman's switch is typically
connected), and interconnect with 2-conductor cable using wire nuts. Do not disconnect or bypass the thermostat
or any safety switches.
3. Run cable to low voltage compartment of Lx3000. At the Lx3000, strip insulation ¼" and connect to circuit
board at the two HTR Screw Terminals.
4. Turn the heater switch to ON (or High) and set thermostat(s) to maximum.
WATER TEMPERATURE SENSOR
1. Select a convenient location to mount the Temperature Sensor (model TS-5L) between the pump and filter.
2. Drill a 5/16" diameter hole in the pipe, and insert the Sensor. Position the hose clamp over the Sensor, and gently
tighten around pipe. Caution: Overtightening of clamp can cause deformation of O-ring seal.
3. Use the remainder of the 2-conductor cable (provided with Accessory Kit) to run between Sensor location and
low voltage compartment of Lx3000 Power Center.
4. At the Sensor, pay attention to color-coding of wires (green wire connects to green; red wire connects to red), and
use crimp connectors (included) to provide waterproof connections. Before making connections, shorten sensor
