EQUIPMENT POWER
1.
Install circuit breakers to provide voltage for power relays at R1 through R4. Run appropriate wires from
breakers to high voltage compartment of Lx3000, and connect to LINE 1 and LINE 2 Screw Terminals at each
terminal block.
2.
Pumps and other high voltage equipment are connected to LOAD 1 and LOAD 2 terminals. Each individual
terminal block can be wired to operate either 115 or 230 VAC.
3.

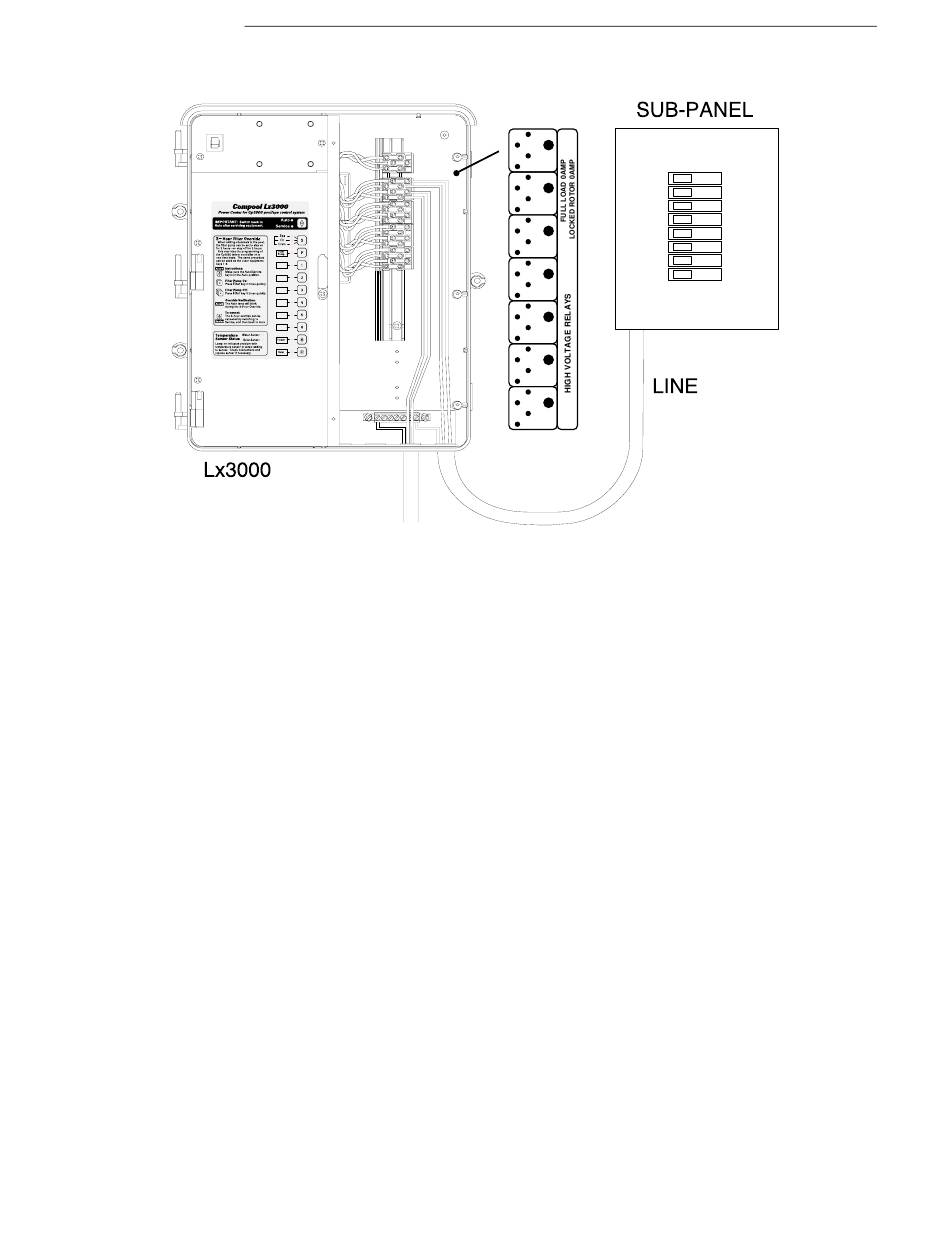

Connect the high voltage equipment to LOAD 1 and LOAD 2 terminals at each terminal block. The diagram
above shows the high voltage wiring of a 230 VAC filter pump.
4.
If the system is to control a pool cleaner pump, it should be connected to the R2 terminal block.
Note: For 115 VAC equipment, only half of the terminal block needs to be used (i.e.: LINE 1 and LOAD 1). The
neutral wire connects directly from the sub panel to the equipment.
ADDING RELAYS
The Cp3000 system comes standard with 4 power relays for activating the Filter Pump, Aux1, Aux2 and Aux3 circuits.
It is possible to install additional Relay Kits (model RLY-LX) to the Lx3000, in order to activate additional equipment.
Install RLY-LX in accordance with instructions provided, and plug relay control wire into Lx3000 circuit board at
appropriate Relay Socket. The Lx3000 Power Center will accommodate a maximum of 7 power relays.
LINE
LINE
R
LOAD
LOAD
LINE
LINE
R
LOAD
LOAD
LINE
LINE
R3
LOAD
LOAD
LINE
LINE
R
LOAD
LOAD
LINE
LINE
R
LOAD
LOAD
LINE
LINE
R
LOAD
LOAD
LINE
LINE
R
LOAD
LOAD
