6. Use the four ½" screws (included) to mount Controller to the backplate.
7. At the Lx3000, insert cable (with modular plug attached) into circuit board at "to CP-3000" Socket.

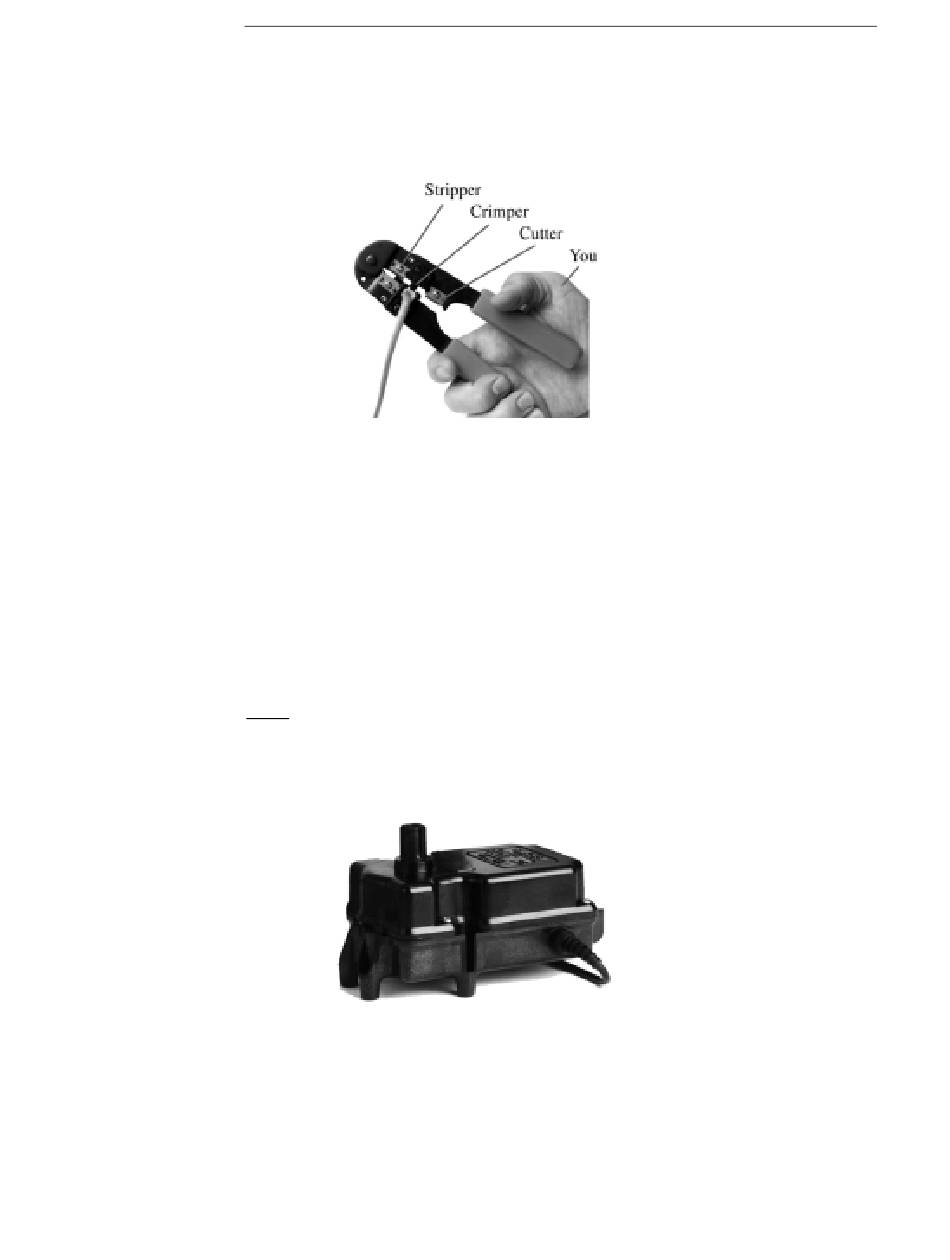

USING THE CRIMPING TOOL
1. Use Cutter to prepare cable end. Make sure that cable is cut squarely (not diagonally).
2. Insert the cable between the Stripper blades of the tool until it touches the stop. Squeeze the handles and pull the
tool, making sure that the cable stays perpendicular to it. If this is done correctly, the outer jacket of the cable
will be removed without damaging the insulation on the individual conductors.
3. Plug a modular connector into the holder so that the gold contacts face the Crimper.
4. Orient the prepared cable so that the blue conductor is closest to the tool handles, and insert cable into connector.
Make sure the wires go all the way to the back of the connector.
5. Squeeze the handles firmly to set the contacts and secure the cable.
Note: It is important that the orientation (blue conductor closest to tool handles) is identical at each end of the cable.
CVA-24 VALVE ACTUATORS
1. Remove knob, handle and four screws from cap of valve(s) to be motorized, and use the four mounting screws
provided to mount Valve Actuator(s) to valve(s).
2. Run cable(s) to low voltage compartment of Lx3000 Power Center.
3. At the Lx3000, plug cable(s) into appropriate Valve Socket on circuit board:
TOOL-6
CVA-24
11
Installation
