Compool Cp3000
1. 6-conductor 26 AWG communication cable to the Cp3000 Controller. Note: 300' run maximum. Call Compool
for instruction for longer runs. Caution: Always lubricate cable with cable lubricant when pulling through
conduit.
2. 2-conductor 22 AWG cable to the gas heater.
3. 2-conductor 22 AWG cable to the Water Temperature Sensor.
4. 2-conductor 22 AWG cable to optional Solar Temperature Sensor.
5. CVA-24 Valve Actuators are provided with 15 feet of 3-conductor cable. Note: May be extended to a max.
length of 150' w/ 18 gauge cable (model 3COND/VOR).
6. Optional Spa-Side Remote is provided with necessary cable attached (50', 100', 150', 200', or 250' length).
Note: Do not install low voltage and high voltage wires in the same conduit.
Do not install temperature sensor and gas heater wires in the same conduit.
Install cables, using plastic or metallic conduit where cables run underground, through concrete, etc.

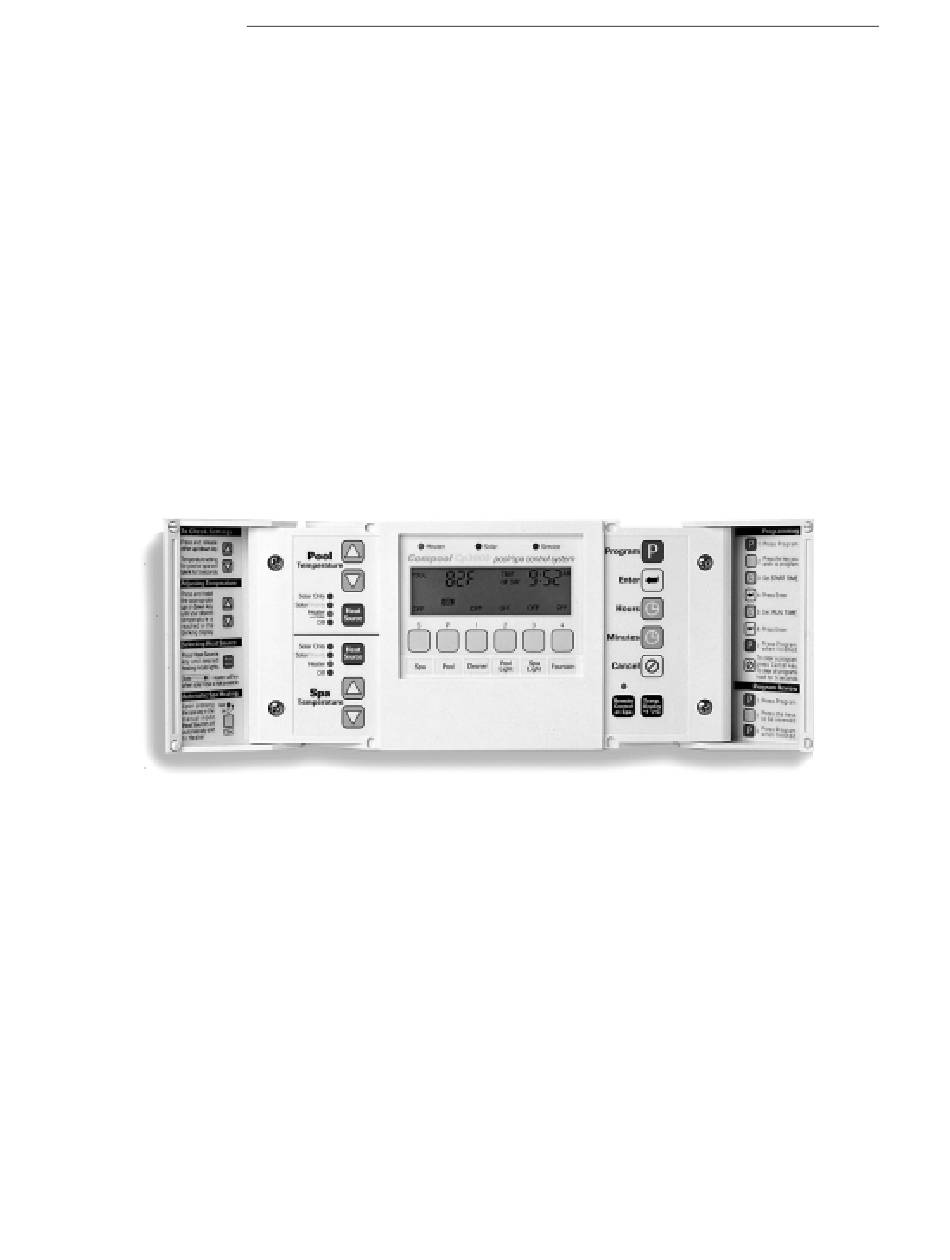

MOUNTING THE Cp3000 CONTROLLER
1. Select a convenient location inside the house or other weather-protected area to mount the Cp3000 Controller.
The overall width of the Controller (with doors open) is 11½". The location of the 6-conductor communication
cable (on the centerline of the enclosure) should therefore be at least 5¾" from any door jamb, wall corner or
other obstacle. Install the Cp3000 Controller at eye level for best viewing of the LCD display.
2. Remove backplate from Controller. Temporarily pull cable through large hole in backplate, and position
backplate on surface of wall. Ensure that backplate is level, and that "TOP" nomenclature is oriented correctly.
Level the backplate and mark the three mounting points on the surface of the wall.
3. With the backplate removed from the wall, drill 3/16" diameter holes at the three points. Insert mounting anchors
(included) into the three holes.
4. Pull cable through large hole in backplate, and use the three 1¼" screws to mount backplate to wall. Cut off
excess cable, and use crimping tool (model TOOL-6) to connect modular plug at each end of cable. See USING
THE CRIMPING TOOL for details.
5. At the Cp3000, insert cable (with modular plug attached) into circuit board at "LINE TO LX" Socket.
