Ltech T3 Series Manual page 2

LTECH

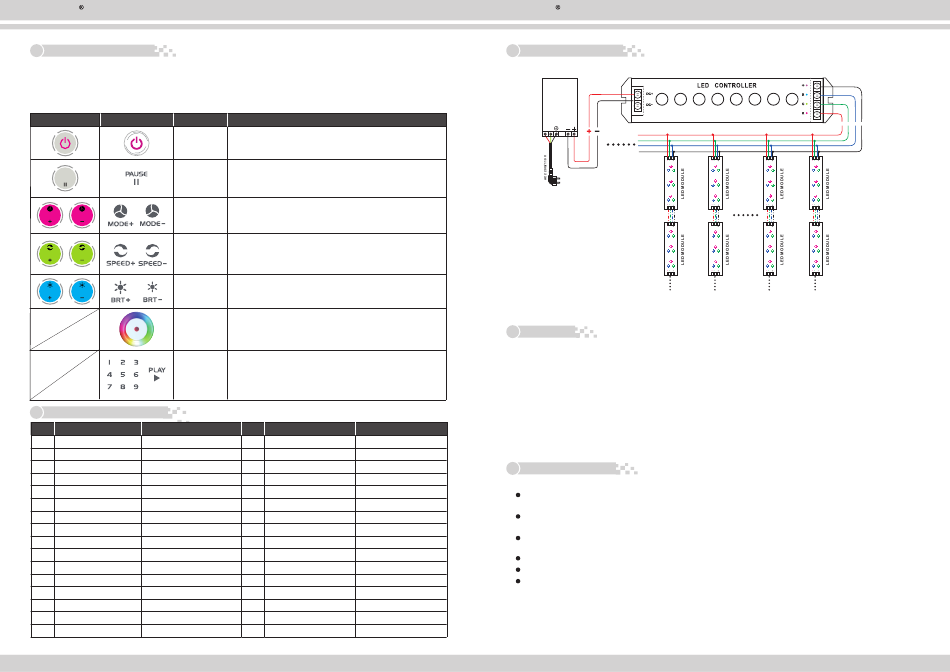

4. Detailed key functions
The remote control has18 function buttons and 1 full-color touch circle; The controller has 8 touch buttons.
The learning of remote control:
Press the key "ON/OFF" on the controller until there is the DUDU sound, then press the key "1" to activate the
controlling between the controller and remote control, press key"2" to cancel the controlling,and it means it had been
set successfully when heard takq
Controller sign Remote control sign
Button
ON/OFF
PAUSE
PAUSE
MODE+
MODE MODE
MODE-
SPEED+
SPEED SPEED
SPEED-
BRT+
BRT BRT
BRT-
full-Color
Touching
circle
9 DIY
keys
5. Tables of Changing mode
Description
No. Mode
1 Static red brightness adjustable
Static green brightness adjustable
2
3 Static blue brightness adjustable
Static yellow brightness adjustable
4
5 Static purple brightness adjustable
Static cyan brightness adjustable
6
Static white brightness adjustable
7
8 RGB skipping speed/brightness adjustable
7 colors skipping speed/brightness adjustable
9
White strobe speed/brightness adjustable
10
7 colors strobe speed/brightness adjustable
11
Red fade out and fade in speed/brightness adjustable
12
Green fade out and fade in speed/brightness adjustable
13
Blue Fade out and fade in speed/brightness adjustable
14
Yellow fade out and fade in speed/brightness adjustable
15
Purple fade out and fade in speed/brightness adjustable
16
ZHUHAI LTECH ELECTRONIC TECHNOLOGY CO., LTD.
T1 LED RGB Controller Manual
Description
ON/OFF:
Turn on/off the Controller.
Press it to stay at current color.
Press it again, it will continue to change.
PAUSE
Press this button in 3 seconds, the buzzer
can be on or off.
MODE+ MODE- /
Press the keys to select next mode or back to
previous mode.
SPEED+/SPEED-
Press the keys to quicken and slower speed
BRT+/BRT-
Press the keys to increase or decrease brightness ,
keep pressing to adjust brightness continuously
When touching the full-color circle, LED lights will
show the same color as the circle.
Press the keys for 3 seconds,the controller will save the
present function mode automatically,which can save
9 modes and save repeately as well. .Press"PLAY" key
to play cycle modes(merely play the dynamic effects,
the static effect will be skipped automatically.
Description
No. Mode
17 Cyan fade out and fade in speed/brightness adjustable
White fade out and fade in speed/brightness adjustable
18
19 RGB fade out and fade in speed/brightness adjustable
speed/brightness adjustable
20 Red Green color smooth
21 Red Blue color smooth speed/brightness adjustable
speed/brightness adjustable
22 Green Blue color smooth
speed/brightness adjustable
23 Red Yellow color smooth
24 Green Cyan color smooth speed/brightness adjustable
speed/brightness adjustable
25 Blue purple color smooth
speed/brightness adjustable
26 Green Yellow color smooth
speed/brightness adjustable
27
Blue Cyan color smooth
speed/brightness adjustable
28 Red Purple color smooth
speed/brightness adjustable
29
Blue White color smooth
speed/brightness adjustable
30
Yellow Purple Cyan color smooth
speed/brightness adjustable
31 RGB color smooth
speed/brightness adjustable
32
full color smooth y
3
WWW.LTECHONLINE.COM
LTECH
6. Wiring diagram
Connected to RGB moudle as an example
POWER DC12V
SUPPLY
DC
AC
L N
B
DC12V
B
B
B
【Notes】
Power repeater can be added if connect to more LED ,please refer to the manual of power repeater
for the specific connection method.
7. Attention
1. The product shall be installed and serviced by a qualified person.
2. This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please
ensure it is mounted in a water proof enclosure.
3. Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
4. Please check if the output voltage of any LED power supplies used comply with the working voltage of the product.
5. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current.
Please also ensure that the cable is secured tightly in the connector to avoid the accidents due to overheat and
poor contact on the wire.
6. Ensure all wire connections and polarities are correct before applying power to avoid any damages to the LED lights.
7. If a fault occurs please return the product to your supplier. Do not attempt to fix this product by yourself.
8. Warranty Agreement
1. We provide lifelong technical assistance with this product:
A 3 year warranty is given from the date of purchase. The warranty is for free repair or replacement and covers
manufacturing faults only.
For faults beyond the 3 year warranty we reserve the right to charge for time and parts.
2. Warranty exclusions below:
Any man-made damages caused from improper operation, or connecting to excess voltage and overloading.
The product appears to have excessive physical damage.
Damage due to natural disasters and force majeure.
Warranty label, fragile label and unique barcode label have been damaged.
The product has been replaced by a brand new product.
3. Repair or replacement as provided under this warranty is the exclusive remedy to the customer.
Ltech shall not be liable for any incidental or consequential damages for breach of any stipulation in this warranty.
4. Any amendment or adjustment to this warranty must be approved in writing by Ltech only.
★ This manual only applies to this model. Ltech reserves the right to make changes without prior notice.
Tel: +86 756 620 8823 Fax: +86 756 620 8833
T1 LED RGB Controller Manual
R G B V
B B B
B B B
B B B
B B B
4
