Ltech LT-3800-6A Manual

LT-3800-6A
LED RGB Controller

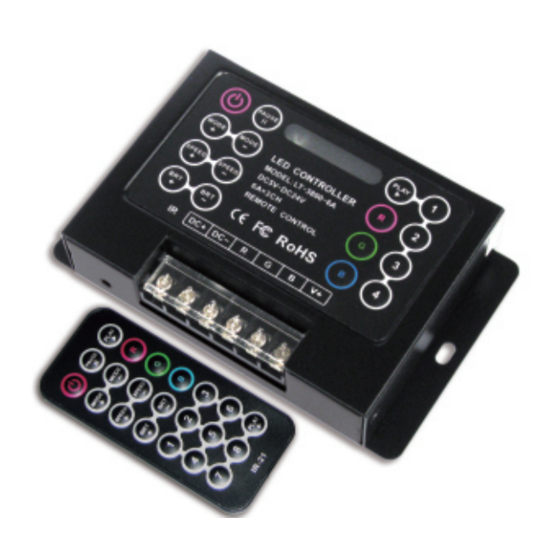

LT-3800-6A is a multi-function RGB controller with DIY and powerful combination ability for changing
RGB colors of the 4-pin 3-channels (common anode) LED lights. 29 modes can be controlled either
by pressing the keys on the controller or the remote, which is simple and easy.
LT-3800-6A with the programmable function. 10 seconds to produce a new lighting effect, super
easy and useful.
1. Technical Specs:
LT-3800-6A Constant Voltage Controller
Input Voltage: 5～24VDC
Max Current Load: 6A×3CH Max 18A
Max Output Power: 90W/216W/432W(5V/12V/24V)
Changing Mode: 29 Modes
Grey Scale Level: 4096×4096×4096
2. Product Size:
LT-3800-6A LED RGB Controller
RF Remote Distance: 30m
℃
Working Temperature: -30 ~65
Dimension: L146×W90×H31(mm)
Package Size: L160×W130×H45(mm)
Weight(G.W.): 470g
1

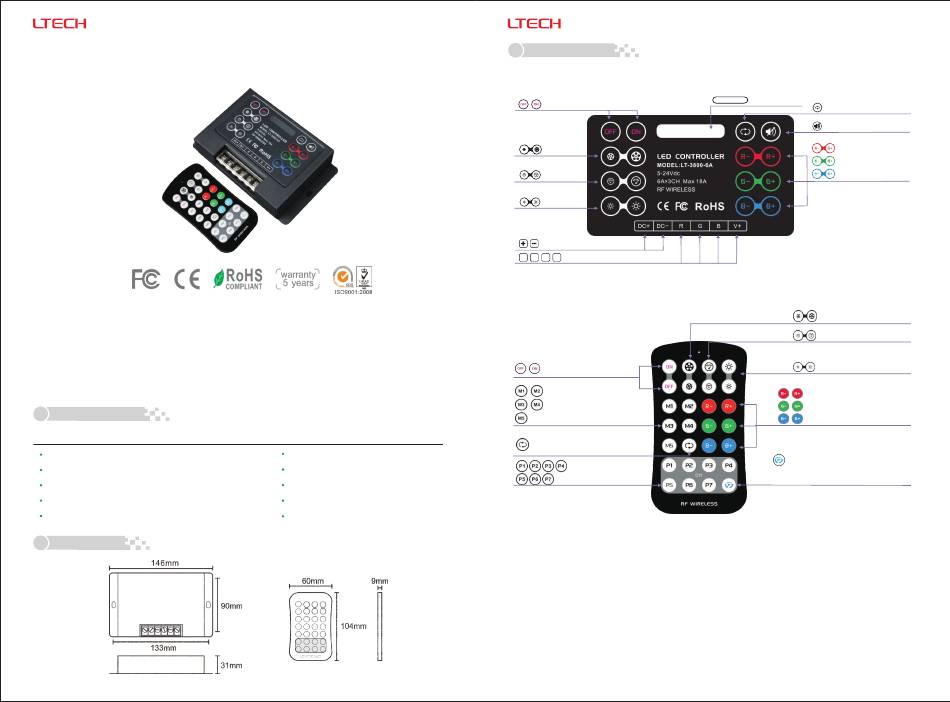

3. Operation Keys:
3.1 Controller and Remote Instruction
On/Off
Mode
Speed
Brightness
Power input : 5-24VDC
R G B V LED Lamps Connected Socket
On/Off
5 Scene-save Key
(long press for 2 second can save
the current color or change mode)
5 Scene Loop Play Key
(merely cycle the dynamic effect,
the static color will be skipped)
Color save key
℃
(long press 2s to save,
short press to display)
ID Learning Method:
Remote control has been matched to the
you can learn ID as follow.
Press "ON" key on the controller for 2s, the buzzer long beep, press any key on
Learning ID:
the remote in 5s, the buzzer long beep again, activated.
Press "OFF" key on the controller for 8s, the buzzer long beep, delete all the
Cancelling ID:
learned remote.
One
Status Display
Controller Panel Instruction
Remote Control Instruction
controller before leave factory, if deleted accidentally,
controller can be matched with max 10 remotes.
2
LT-3800-6A LED RGB Controller
Loop Play 5 DIY Modes
Buzzer On /Off
Static State
Color-mixing Button
(long press to increase or
decrease continuously)
Mode
Speed
Brightness
Static State
Color-mixing Keys
(long press can increase and
decrease the color continuously)
Play Programmed Mode
(press once to play
press again to switch jumping/smooth strobe) /
