Ltech T3 Series Manual

LTECH
2.4G LED RGB Controller
T3-5A
T3 is the 2.4GHZ RF wireless synchronization RGB controller which adopts LTECH multiple global initiate technology. The
control system consists of two parts, the RF remote control and receiver; realize the signal synchronization on unlimited
receivers within effective distance, a very good solution for the LED project needs sync control wirelessly. User-friendly full-color
touch wheel for color selection, unique LED state light for sync change indicated, user can simply know the LED working state
from distance by checking the remote control.
Can RF remote control the functions of switch, pause, changing modes, changing speed and the brightness and so on. Built-in
32 changing modes, you can save the changing modes in the shortcut key as you like, which not only can call at any time, but
also can combine into a program to play in loop.
1. Technical Specs:

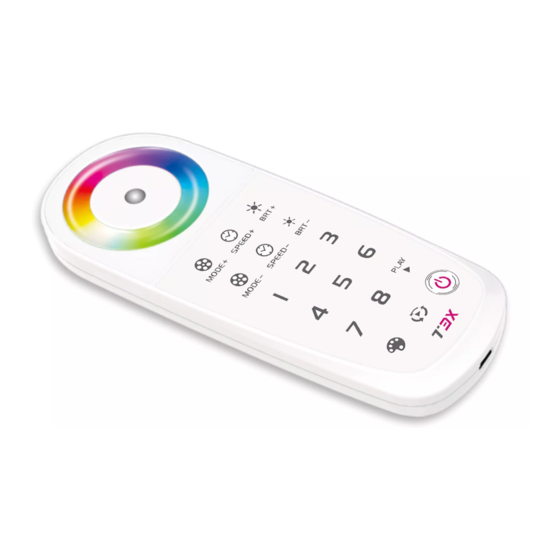

T3 Remote Control
Input Voltage: DC5V Built-in Lithium Battery
≤30mA
Working Current:
Working Frequency: 2.4GHZ
RF Remote Distance: 30m
Remote Option: Sync control unlimited receivers
Change mode: 32 Fantastic modes
T3-5A CV Receiving controller
Input voltage: DC12V-DC24V
Max current load: 5A×3CH Max 15A
Max output power: 180W/360W(12V/24V)
Control button: 8 touch button
Compatible remote control: workable with T3, T3M, T3X
T3-CV Receiving controller
Input voltage: DC5V-DC24V
Max current load: 6A×3CH Max 18A
Max output power: 90W/216W/432W(5V/12V/24V)
Compatible remote control: T1/T2/T2M/T3/T3M/T3X
Working temperature: -30℃~55℃
Dimension: L175×W44×H30(mm)
Package size: L178×W48×H33mm
Weight (G.W.): 110g
ZHUHAI LTECH ELECTRONIC TECHNOLOGY CO., LTD.
T3 2.4G LED RGB Controller Manual
T3
T3
T3-CV T3-CC
warranty
5 years
Scale levels: 1024×1024×1024
Battery Capacity: 1000mAh
≤6 Months
Standby Time:
Dimensions: L145×W55×H22(mm)
Package Size: L168×W102×H28(mm)
Weight (G.W.): 200g
Working temperature: -30℃～55℃
Dimension: L211×W40×H30mm
Package size: L215×W42×H32mm
Weight (G.W.): 180g
T3-CC Receiving controller (current 3 in 1)
Input voltage: DC12V-DC48V
Output voltage: DC3V-DC46V
Output current: CC 350/700/1050mA ×3CH
Output power: 1.05W~48.3W ×3CH Max 144.9W
Compatible remote control: T1/T2/T2M/T3/T3M/T3X
Working temperature: -30℃~55℃
Dimension: L175×W44×H30(mm)
Package size: L178×W48×H33mm
Weight (G.W.): 110g
1
WWW.LTECHONLINE.COM
LTECH

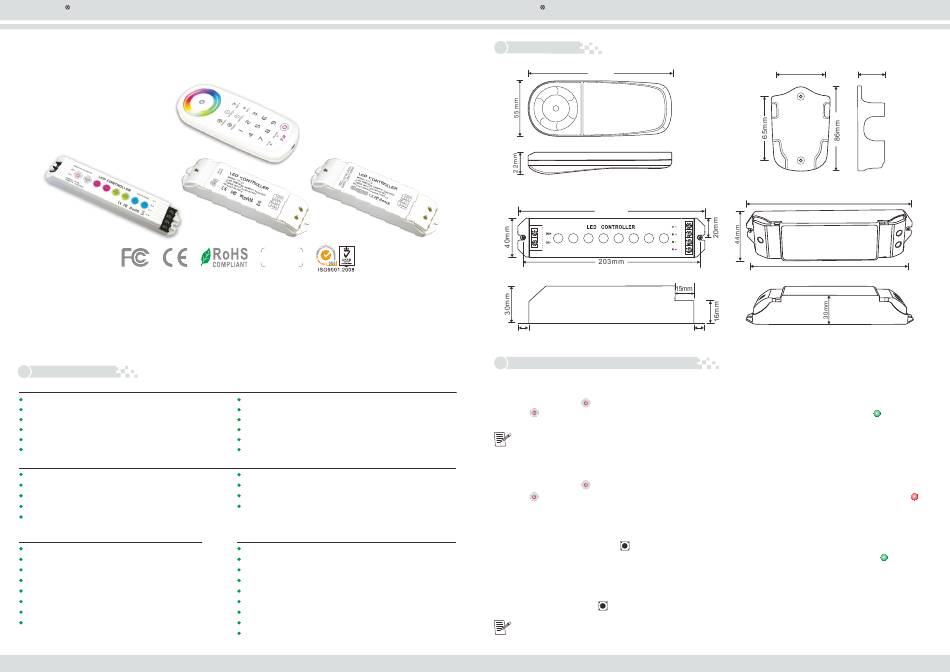

2. Product Size:
145mm
T3 RF remote control
211mm
10mm
T3-5A
3. The learning ID method of remote control:
T3-5A learning ID:
1. Turn on the receiver and remote control.
2. Press "on/off button" on the T3-5A for 2 seconds, there is a buzzer sound, and do not release your hand on the
button , at the same time press any keys on the remote control(except on/off key), until the green
of remote control flashes 3 times(the long buzzer ring at the same time), learning ID successful, release all the keys.
If you have to control many receivers synchronously, each receiver should be learning ID according to the above
steps learning ID.
T3-5A cancelling ID:
1. Turn on the receiver and remote control.
2. Press "on/off button" on the T3-5A for 2 seconds, there is a buzzer sound, and do not release your hand on the
button , after 5 seconds press any keys on the remote control(except on/off key), until the red indicator light
remote control flashes 3 times(the long buzzer ring at the same time), release all the keys.
T3-CC/T3-CV learning ID:
1. Turn on the receiver and remote control.
2. Short press "ID learning button" on the T3-CC/T3-CV receiver, the running light keeps on, then long press any keys
(except on/off key)on the remote, the running light returns to flash (the buzzer long beep, the green light
times), activated successful.
T3-CC/T3-CV cancelling ID:
1. Turn on the receiver and remote control.
2. Press "ID learning button" on the receiver more than 8 seconds, the buzzer beep twice, delete all the learned remote.
If you have to control many receivers synchronously, each receiver should be learning ID according to the above
steps learning ID.
Tel: +86 756 620 8823 Fax: +86 756 620 8833
T3 2.4G LED RGB Controller Manual
27mm
60mm
Remote holder
175mm
170mm
10mm
T3-CV/T3-CC
2
