T Series LED Remote Controller
(
This manual applies to:
T1/T2/T2M/T3/T3M/T3X)

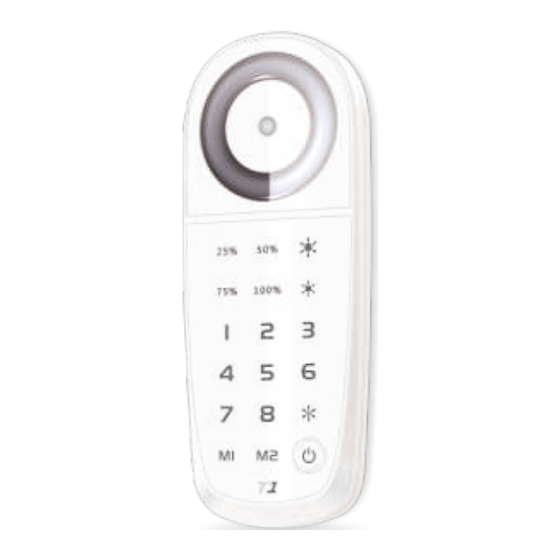

T1
T2
T2M
T3
T3M
T3X

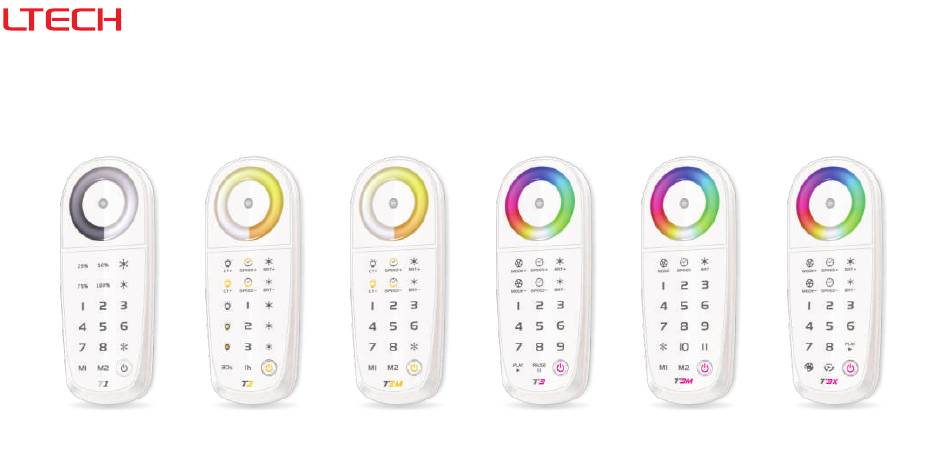

Dimming
Color Temperature
Color Temperature
RGB Sync Control
RGB Zone Control
RGB Programmable
(8 zones)
(8 zones)
(10 zones)

Advertisement

loading
Need help?

Need help?

Do you have a question about the T series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ltech T series

Summary of Contents for Ltech T series

  • Page 1 T Series LED Remote Controller This manual applies to: T1/T2/T2M/T3/T3M/T3X) Dimming Color Temperature Color Temperature RGB Sync Control RGB Zone Control RGB Programmable (8 zones) (8 zones) (10 zones)
  • Page 2 General Information Index …………………………………………… General Information ……………………………………………………… T1 (Dimming) …………………………………………… T2 (Color Temperature) 10 13 ………………………………………… T2M (Color Temperature) 14 17 …………………………………………………………… T3 (RGB) 18 21 ………………………………………………………… T3M (RGB ) 22 25 ………………………………………………………… T3X (RGB) 26 29 ………………………………………………………… After Service ……………………………...
  • Page 3 General Information A Notice for the Remote Charging: When charging, please connect USB cable. 3. No memory effect in the lithium battery of remote control. Follow the standard charging procedure even for the first three times, no need over charge. Indicator light flickers meaning low battery and need to be charged.
  • Page 4 General Information B Technical Specs: T1/T2/T2M/T3/T3M/T3X Remote Control T3-CV Receiving Controller Compatible Remote: T1/T2/T2M/T3/T3M/T3X Charging Voltage: (Built-in Lithium Battery) Input Voltage: 5～24Vdc Working Current: <30mA Wireless Signal: 2.4GHz Working Frequency: 2.4GHz Max Current Load: 6A × 3CH Max 18A RF Remote Distance: Max Output Power: 90W/216W/432W(5V/12V/24V) Battery Capacity:...
  • Page 5 General Information T3-CC Receiving Controller (Current 3 in 1) T3-5A Receiving Controller Compatible Remote Control: T3/T3M/T3X Compatible Remote: T1/T2/T2M/T3/T3M/T3X Wireless Signal: 2.4GHz Wireless Signal: 2.4GHz Input Voltage: 12～24Vdc Input Voltage: 12～48Vdc Max Current Load: 5A x 3CH Max 15A Output Voltage: 3-46Vdc Max Output Power: 180W/360W(12V/24V)
  • Page 6 General Information C Terminal of Receivers: LED Lamp Running Light Connected Socket 12~24V Power Input Socket LED Lamp Connected Socket Remote ID Learning Button CV CONTROLLER 5~24V T3-5A Power Input CV CONTROLLER Socket T3-CV Speed Brightness Pause Mode Keys Keys On/Off Keys T3-5A...
  • Page 7 LED Dimming Controller (8 Zones) 1. Operation Panel and Component Instruction: LED Dimming Controller Sync Status Indicator Light Touch Color Circle Brightness Shortcut Keys Brightness Keys Zone Selection Keys Scene-mode Keys M1 M2 On/Off (Press for 3s to save the scene mode in the 8 current zone control.) T1 remote works with T3-CV, T3-CC receiver.
  • Page 8 LED Dimming Controller (8 Zones) 2. The Learning ID Method of Remote: Learning ID: Canceling ID: A. Turn on the receiver and remote. A. Turn on the receiver and remote. B. Short press "ID learning button" on the T3-CC/T3-CV receiver, B.
  • Page 9 LED Dimming Controller (8 Zones) 3. System Diagram: Unlimited receivers can be installed in per zone within the effective distance, no wiring needed between the receivers, the installed quantity of LED receivers in per zone can be increased or decreased at any time based on the actual requirements. If you want to increase or decrease the receivers, just activate or cancel the control ID on the remote control will be fine, no any changes and effects on other receivers.
  • Page 10 LED Dimming Controller (8 Zones) 4. Wiring Diagram: 5~24Vdc 5~24Vdc 5~24Vdc 12~48Vdc 12~48Vdc 12~48Vdc …… …… 700mA 700mA 700mA 350mA 350mA 350mA 1050mA 1050mA 1050mA Round LED LED Panel Light LED Panel Light Panel Light — 9 —...
  • Page 11 LED Color Temperature Controllerl 1. Operation Panel and Component Instruction: LED Color Temperature Controller Sync Status Indicator Light Touch Color Circle Speed+/Speed- BRT+/BRT- CT+/CT- (Keep pressing to adjust Scene-mode Keys brightness continuously.) (Press 3s to save) Brightness T2 remote works with T3-CV, T3-CC receiver. Shortcut Keys CT Shortcut Keys Delay Off Keys...
  • Page 12 LED Color Temperature Controller 2. The Learning ID Method of Remote: Learning ID: Canceling ID: 1. Turn on the receiver and remote. 1. Turn on the receiver and remote. Short press "ID learning button" on the T3-CC/T3-CV receiver, 2. Press “ID learning button” on the T3-CC/T3-CV receiver more the running light keeps on, then long press any key on the T2 than 8s, the buzzer beep twice, delete all the learned remote.
  • Page 13 LED Color Temperature Controllerl 3. System Diagram: Unlimited receivers can be installed within effective distance, no wiring needed between the receivers, which can be less or more in quantity according to your need for the installation. If you want to increase or decrease the receivers, just activate or cancel the control ID on the remote control will be fine, no any changes and effects on the other receivers.
  • Page 14 LED Color Temperature Controller 4. Wiring Diagram: 5~24Vdc 5~24Vdc 5~24Vdc 12~48Vdc 12~48Vdc 12~48Vdc …… 350mA 700mA 1050mA Round LED Panel Light Panel Light Panel Light — 13 —...
  • Page 15 LED Color Temperature Controller (8 Zones) 1. Operation Panel and Component Instruction: LED Color Temperature Controller Sync Status Touch Color Circle Indicator Light Speed+/Speed- BRT+/BRT- CT+/CT- (Keep pressing to adjust brightness continuously.) Zone Selection Keys Scene-mode Keys M1 M2 On/Off (Press for 3s to save the scene mode in the 8 current zone control.) T2M remote works with T3-CV, T3-CC receiver.
  • Page 16 LED Color Temperature Controller (8 Zones) 2. The Learning ID Method of Remote: Learning ID: Canceling ID: A. Turn on the receiver and remote. A. Turn on the receiver and remote. Short press "ID learning button" on the T3-CC/T3-CV receiver, B.
  • Page 17 LED Color Temperature Controller (8 Zones) 3. System Diagram: If you don't need color temperature smooth mode by pressing The receivers can be divided into 1~8 zones within effective , each zone can set up unlimited receivers and achieve distance(1pc receiver per zone), no wiring needed between the brightness, color temperature adjustment synchronously.
  • Page 18 LED Color Temperature Controller (8 Zones) 4. Wiring Diagram: zone1 5~24Vdc 5~24Vdc 12~48Vdc 12~48Vdc 12~48Vdc …… 350mA 700mA 1050mA Round LED Panel Light Panel Light Panel Light Spacing Zone-division — 17 —...
  • Page 19 LED RGB Controller 1. Operation Panel and Component Instruction: LED RGB Controller Sync Status Indicator Light Touch Full-color Circle Speed Keys Mode Keys Brightness Keys Scene-mode Keys (Long press 3s to save) Pause Key Press"PLAY" key to play cycle modes.(merely play the dynamic T3 remote works with T3-CV, T3-CC, T3-5A receiver.
  • Page 20 LED RGB Controller 2. The Learning ID Method of Remote: T3-5A Learning ID: T3-CC/T3-CV Learning ID: A. Turn on the receiver and remote. A. Turn on the receiver and remote. B. Press “on/off” on the T3-5A for 2s, there is a buzzer sound, keep Short press "ID learning button"...
  • Page 21 LED RGB Controller 3. Tables of Changing Mode: 4. System Diagram: Unlimited receivers can be installed within effective distance, no Mode Mode wiring needed between the receivers, if you want to increase or Static red Cyan fade out and fade in decrease the receivers, just activate or cancel the control ID will Static green White fade out and fade in...
  • Page 22 LED RGB Controller 5. Wiring Diagram: 12~24Vdc 12~24Vdc 12~24Vdc 5~24Vdc 5~24Vdc 5~24Vdc 12~48Vdc 12~48Vdc 12~48Vdc 350mA 700mA 1050mA Round LED Panel Light Panel Light Panel Light — 21 —...
  • Page 23 LED RGB Controller (10 Zones) 1. Operation Panel and Component Instruction: LED RGB Controller Sync Status Touch Full-color Circle Indicator Light Speed Key Brightness Key Mode Key Zone Selection Keys Pause Key Scene-mode Keys M1 M2 On/Off Press for 3 seconds, can save the scene mode in the 10 current zone control T3M remote works with T3-CV, T3-CC, T3-5A receiver.
  • Page 24 LED RGB Controller (10 Zones) 2. The Learning ID Method of Remote: T3-5A Learning ID: A. Turn on the receiver and remote. T3-CC/T3-CV Learning ID: Press “on/off” on the T3-5A for 2s, there is a buzzer sound, A. Turn on the receiver and remote. keep press, then press any key of “1-10"...
  • Page 25 LED RGB Controller (10 Zones) 4. System Diagram: 3. Tables of Changing Mode: The receivers can be divided into 1~10 zones within effective Mode Mode distance(1pc receiver per zone), no wiring needed between the 3 colors jumping Green/Cyan color smooth receivers.
  • Page 26 LED RGB Controller (10 Zones) 5. Wiring Diagram: 12~24Vdc 12~24Vdc 12~24Vdc 5~24Vdc 5~24Vdc 5~24Vdc 12~48Vdc 12~48Vdc 12~48Vdc 350mA 700mA 1050mA Round LED Panel Light Panel Light Panel Light — 25 —...
  • Page 27 LED RGB Programmable Controller 1. Operation Panel and Component Instruction: Sync Status LED RGB Programmable Controller Touch Full-color Circle Indicator Light Speed Keys Brightness Keys Mode Keys Scene-mode Keys (Press 3 seconds to save) (Press"PLAY" to play cycle modes. On/Off merely play the dynamic effect, the static effect will be skipped) Switch Key for...
  • Page 28 LED RGB Programmable Controller 2. The Learning ID Method of Remote: T3-5A Learning ID: T3-CC/T3-CV Learning ID: A. Turn on the receiver and remote. A. Turn on the receiver and remote. Press “On/Off” on the T3-5A for 2s, there is a buzzer sound, Short press "ID learning button"...
  • Page 29 LED RGB Programmable Controller 3. Tables of Changing Mode: 4. System Diagram: Unlimited receivers can be installed within effective distance, no Mode Mode wiring needed between the receivers, if you want to increase or Static red Cyan fade out and fade in decrease the receivers, just activate or cancel the control ID will Static green White fade out and fade in...
  • Page 30 LED RGB Programmable Controller 5. Wiring Diagram: 12~24Vdc 12~24Vdc 12~24Vdc 5~24Vdc 5~24Vdc 5~24Vdc 12~48Vdc 12~48Vdc 12~48Vdc 350mA 700mA 1050mA Round LED Panel Light Panel Light Panel Light — 29 —...
  • Page 31 After Service Ⅱ. Warranty Agreement: Ⅰ. Attention: A. We provide lifelong technical assistance with this product: A. The product shall be installed and serviced by the qualified person. A 5-year warranty is given from the date of purchase. The warranty is for free repair or replacement if cover manufacturing faults only.
  • Page 32 Reset and Edit the Frequency Point Reset and Edit the Frequency Point A. Reset Function: Feature: Reset function is available when remote operates abnormally. Operation: Long press the 2 keys on the positions of simultaneously, release after 3 seconds, the remote will be auto off, means reset completed.
  • Page 33 T Series LED Remote Controller Applied Range Parameters Architectural ornament: business area, airport, subway station. Charing Voltage: 5Vdc (Built-in Lithium Battery) Interior decoration: hotel, shopping mall, square, restaurant, Working Current: ≤30mA pub, home furnishing, etc. Working Frequency: 2.4GHz Signboard, billboard.
