Ltech T3 Series Manual

LTECH
LED RGB Controller
ISO9001:2008

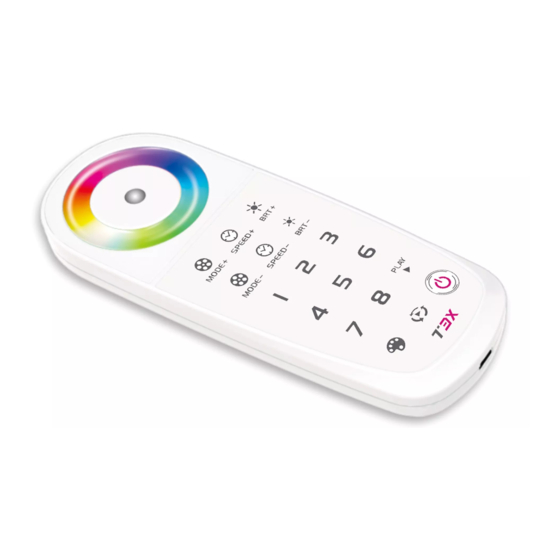

The Intelligent LED color touch controller T3 is our latest development of human body touch
and multi-functional RGB controller.
The control system consists of two parts, the remote control and controller, built-in 32 change
modes, adopts the advanced PWM (pulse-width modulation) control technology, smooth
change effect and no flicker on the led light. with a high power MOS driver, the maximum
current load of RGB channels could reach to 15A.
unique touch technology, the controller comes with 8 touch keys, you can select the functions
of switch, pause, changing modes, speed and LED brightness, all functions can be controlled
by RF remote control at a long distance, RF remote control has 16-bit color selections on the
full-color circle ; controller can automatically adapt to the input voltage of DC 5V-24V,
suitable for most conventional low-voltage RGB LED light.
1. Technical Specs
Remote Control
Model: T3
Input voltage: DC5V built-in Lithium battery
Working current: 30mA
Working frequency: 2.4GHZ
transmitting distance: ≤30meter
transmitting rate: 500Kbps
Battery capacity: 1000mAh
Standby time:1 year
Normal using time: 30 days
Charge time: <4 hours
Number of Charge cycles: 500 times
Dimension: L145×W55×H22(mm)
Package Size: L165×W76.5×H59(mm)
Weight (G.W): 200g
ZHUHAI LTECH ELECTRONIC TECHNOLOGY CO., LTD.
T3 LED RGB Controller Manual
T3
RoHS
warranty
3 years
COMPLIANT
Controller
Power supply chose: DC CV SMPS
Model: T3-5A
Input voltage: DC5V～DC24V
Max current load: 5AX3CH Max 15A
Max output power: 75W/180W/360W(5V/12V/24V)
Change mode: 32 Fantastic modes
Control button: 8 touch buttons
Scale levels: 65536 steps per RGB (16 Bits/CH)
Working temperature: -30℃～55℃
Dimension: L211×W40×H30(mm)
Package Size: L215×W42×H32(mm)
Weight (G.W): 180g
1
WWW.LTECHONLINE.COM
LTECH
2. The charging methods for remote control
1. when charging, please connect USB cable to the mobile charger or computer with the
USB interface.
2. The blue indicator light flickers while charging, and turns green means the charging is completed.
3. No memory effect in the lithium battery of remote control. Follow the standard charging
procedure even for the first three times, no need over charge.
4. Red indicator light flickers meaning low battery and need to be charged. charging in low
battery will affect life of battery.

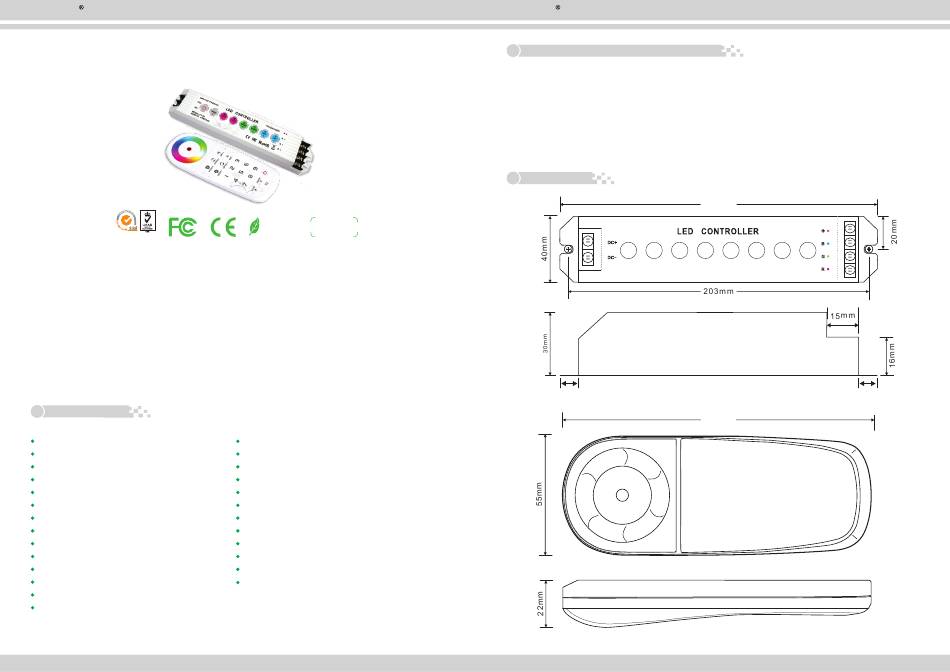

3. Product size
10mm
Tel: +86 756 620 8823 Fax: +86 756 620 8833
T3 LED RGB Controller Manual
211mm
10mm
145mm
2
