Please read this entire manual before proceeding with installation.
What is in the box:

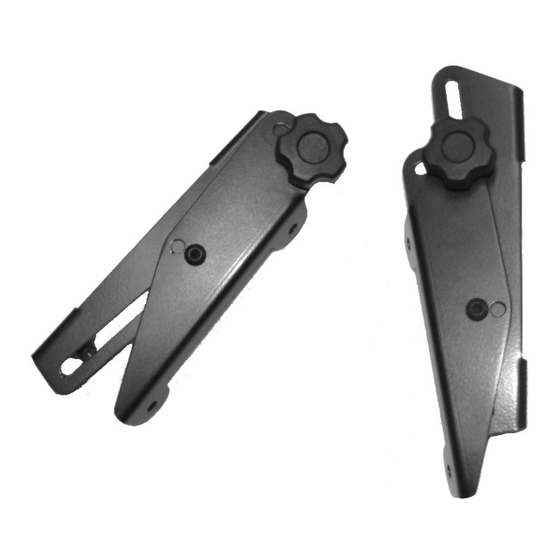

(1) Set of preassembled Robo Knob adjustable windshield mounts
(1) Black acrylic adapter plate
(4) M6 x 16mm mounting screws
(4) M6 flat washers
(4) M6 lock nuts
(4) M5 x 25 Phillips truss screws
(4) M5 black plastic washers
(4) 1/8" thick rubber washers
(for truss screws)
Tools Needed:
- 4 mm Allen wrench (hex key)
- 10 mm wrench (open-end, box, or adjustable crescent)
- #2 Phillips screwdriver
Adjustable Windshield System
Harley-Davidson Road Glide
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MadStad Engineering Robo Knob
Summary of Contents for MadStad Engineering Robo Knob
- Page 1 Harley-Davidson Road Glide Please read this entire manual before proceeding with installation. What is in the box: (1) Set of preassembled Robo Knob adjustable windshield mounts (1) Black acrylic adapter plate (4) M6 x 16mm mounting screws (4) M6 flat washers...
- Page 2 STEP 1: Bracket Installation Your Robo Knob brackets attach to the black acrylic adapter plate, and you will need to bolt them on before installing the plate to the bike. Use the four M6 x 16 screws with flat washers and lock nuts as shown in the diagram below.
- Page 3 The knobs on the brackets go to the insides (facing each other) with the knob sides up. When both brackets are installed it should look like the diagram below: STEP 2: Install the Adapter Plate The adapter plate attaches to the fairing in place of the stock shield using the original factory windshield screws and washers.
- Page 4 Windshield Installation Once the adapter plate is installed, the windshield attaches to the front of the brackets with Phillips screws and washers as shown below. Insert all four screws and washers into the four windshield holes as shown before attempting to attach the windshield onto the RoboBrackets.
- Page 5 Adjusting the RoboKnob Brackets The knob screws release the brackets allowing the windshield to slide and tilt. These knob screws must always be tightened securely before riding. DO NOT attempt to adjust the brackets while riding! You must come to a complete stop before making adjustments.
- Page 6 PIVOT SCREWS The MadStad mount has a pivot screw on each set of brackets, located near the center of the bottom bracket. A nylon lock nut keeps the screw snugly in place, yet allows the brackets to slide back and forth. It is adjusted at the factory to have a minimum of play yet still allow the brackets to move.
- Page 7 Disclaimer Neither MadStad Engineering nor its owners shall be liable for any damages, consequential or inconsequential, resulting from the use of our products. Installation of any of our products constitutes acceptance of these terms. It is the responsibility of the user to make sure all fasteners are...
- Page 8 MadStad Engineering, Inc. 1451 E. Jefferson Street Brooksville, FL 34601 Phone: 352-848-3646 Web Site: http://www.madstad.com Email: support@madstad.com Thank you for your support, and ride safely! May 11, 2018...
