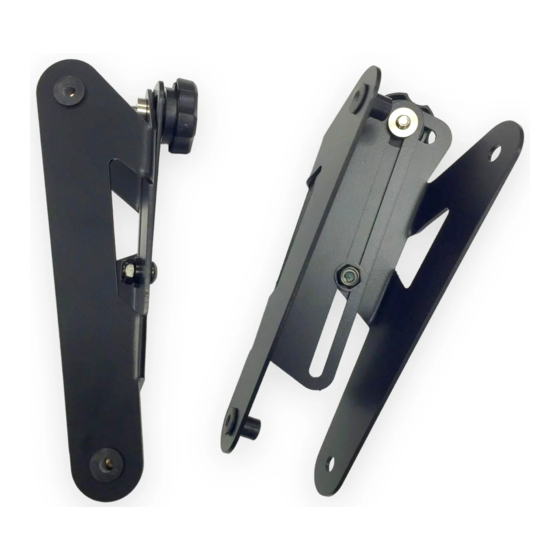

Adjustable windshield mount for ktm 990 smt (8 pages)
Summary of Contents for MadStad Engineering R1200GSA
Page 1

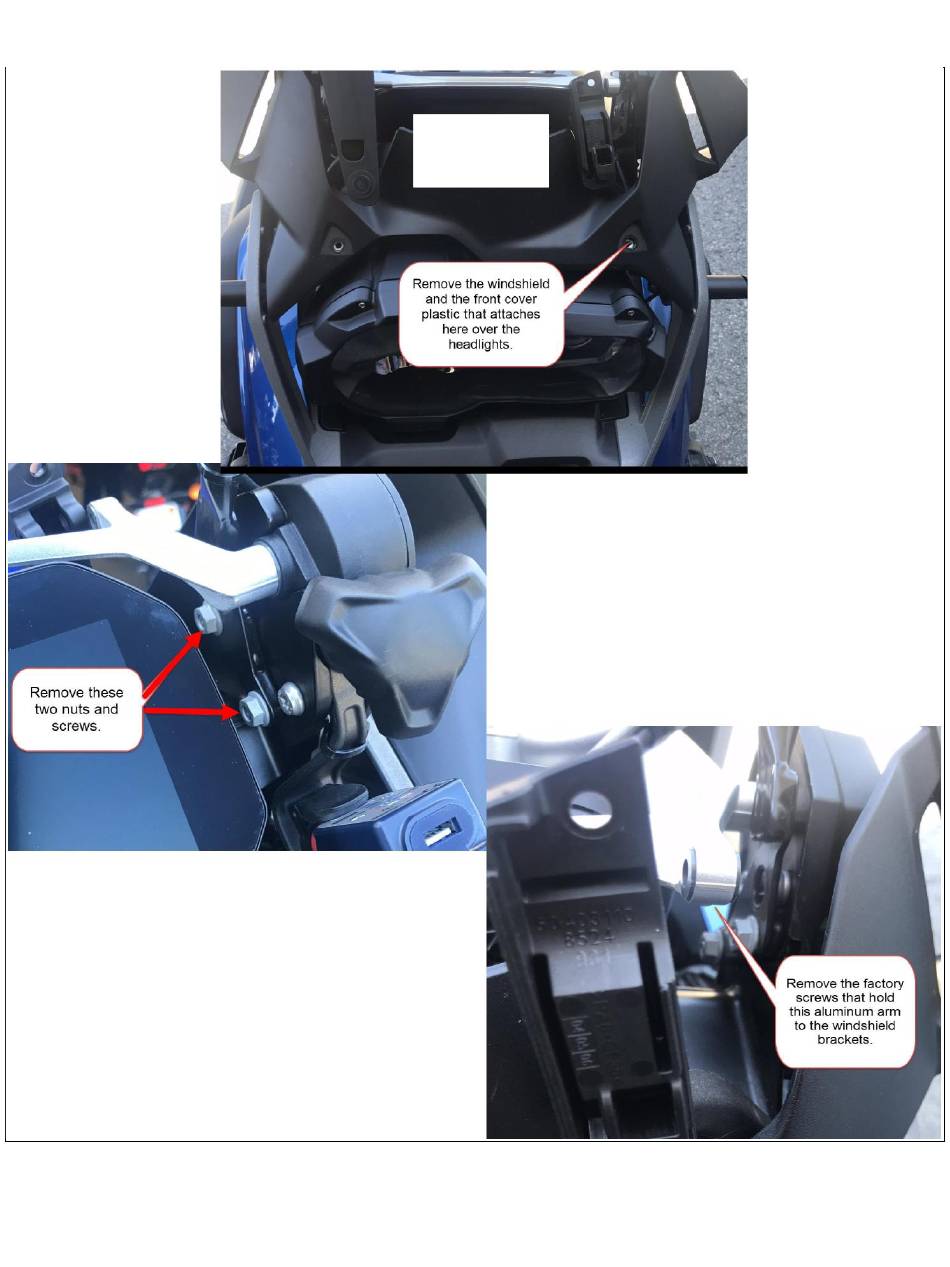

MadStad R1200GSA Support Brace Instructions Remove the windshield Remove the factory and the front cover screws that hold plastic that attaches this aluminum arm here over the to the windshield headlights. brackets.
Page 3
Longest MadStad screw with Use longer MadStad washer goes through shield screws and factory nuts bracket and aluminum arm as to fasten the zig-zag seen here. Fasten with washer brace here. Slot should and nut on the other side. be facing in and up.
Page 4
Once the braces are in on both sides and all fasteners are tightened, the factory height-adjust mechanism won't work anymore. Install the MadStad brackets to the factory windshield brackets with screws nuts as shown below (and per the MadStad instruction manual).
