Ltech LT-905 Quick Start Quide

LT-905
8 bit / 16 bit
2 kinds of DMX interfaces
Shortcut / Over load protection
CHANNELS
www.ltech-led.com
www.ltech-led.com

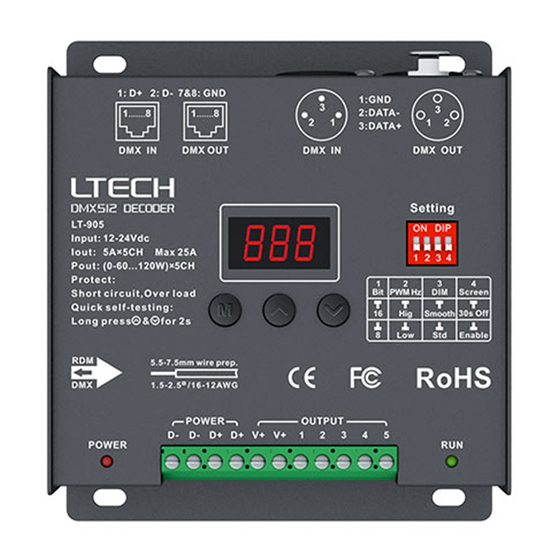

Product Introduction:
1. Designed with 5 channels output, and Max. 5A current per channel, up to 600W output
power.
2. Easy operation with digital display and the touch buttons.
3. Support 2 kinds of DMX ports: 3-pin XLR, RJ45.
4. With RDM remote management protocol, the operations can be completed via the
RDM master console, such as parameters browsing & setting, DMX address setting,
equipment recognition, etc.
5. With shortcut protection and over load protection, as well as warning function when
fault.
6. With fast self-testing function.
7. High/low PWM frequency for optional
8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.
1
www.ltech-led.com
Technical Specs:
Model : LT-905
Protection: Shortcut / Over load
Input Signal : DMX512/RDM
Working Temp.: -30℃~65℃
DMX Interface: 3-pin XLR, RJ45
Dimensions : L122×W110×H37mm
Input Voltage : 12 24Vdc ~
Package Size : L127×W123×H41mm
5A × 5CH Max. 25A
Current Load :
Weight (G.W.) : 550g
Output Power: (0~60W...120W) × 5CH
Max. 600W
Grey Level : 8bit (256 levels) / 16bit (65536 levels)
Product Size:
The Unit: mm
2
