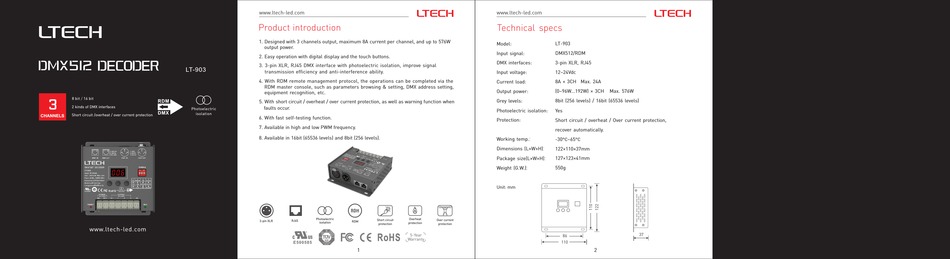

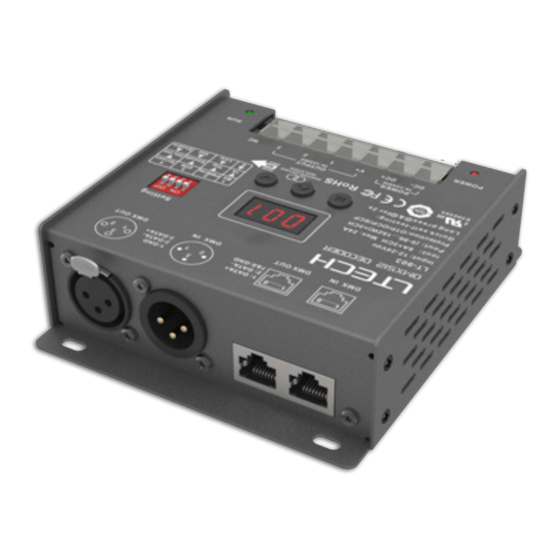

Ltech LT-903 Quick Start Manual

LT-903
8 bit / 16 bit
2 kinds of DMX interfaces
Photoelectric
isolation
Short circuit /overheat / over current protection
CHANNELS
006
www.ltech-led.com
www.ltech-led.com
Product introduction
1. Designed with 3 channels output, maximum 8A current per channel, and up to 576W
output power.
2. Easy operation with digital display and the touch buttons.
3. 3-pin XLR, RJ45 DMX interface with photoelectric isolation, improve signal
transmission efficiency and anti-interference ability.
4. With RDM remote management protocol, the operations can be completed via the
RDM master console, such as parameters browsing & setting, DMX address setting,
equipment recognition, etc.
5. With short circuit / overheat / over current protection, as well as warning function when
faults occur.
6. With fast self-testing function.
7. Available in high and low PWM frequency.
8. Available in 16bit (65536 levels) and 8bit (256 levels).
Photoelectric Overheat
Short circuit Over current
3-pin XLR RJ45
RDM
isolation protection
protection
5-Year
Warranty
E500585
1
www.ltech-led.com
Technical specs
Model : LT-903
Input signal : DMX512/RDM
DMX interfaces: 3-pin XLR, RJ45
Input voltage : 12 24Vdc ~
Current load : 8A × 3CH Max. 24A
Output power: (0~96W...192W) × 3CH Max. 576W
Grey levels : 8bit (256 levels) / 16bit (65536 levels)
Photoelectric isolation: Yes
Protection: Short circuit / overheat / Over current protection,
recover automatically.
Working temp.: -30 °C ~65 °C
Dimensions (L×W×H) : 122×110×37mm
Package size(L×W×H) : 127×123×41mm
: 550g
Weight (G.W.)
Unit: mm
protection
86
110
2
37
