8 bit / 16 bit
2 kinds of DMX interfaces
Short circuit / Over current protection
CHANNELS
006
www.ltech-led.com
www.ltech-led.com

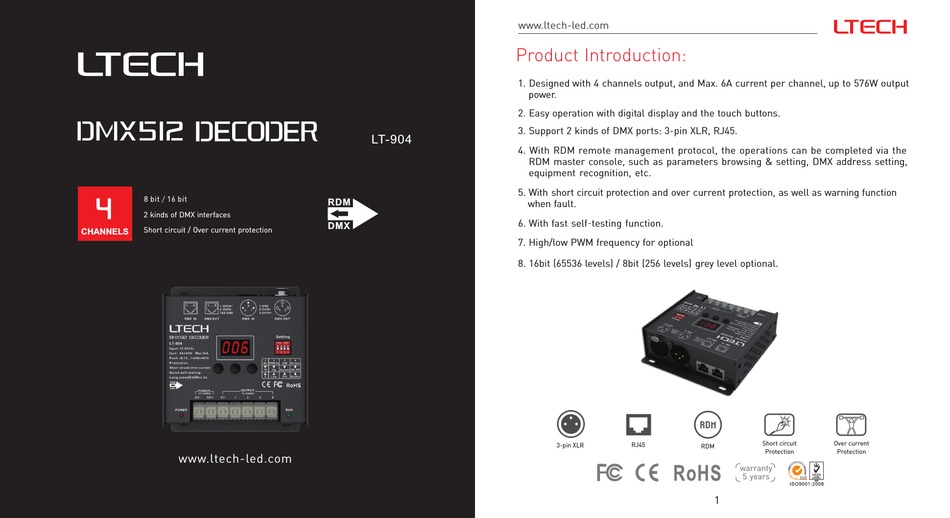

Product Introduction:
1. Designed with 4 channels output, and Max. 6A current per channel, up to 576W output
power.
2. Easy operation with digital display and the touch buttons.
3. Support 2 kinds of DMX ports: 3-pin XLR, RJ45.

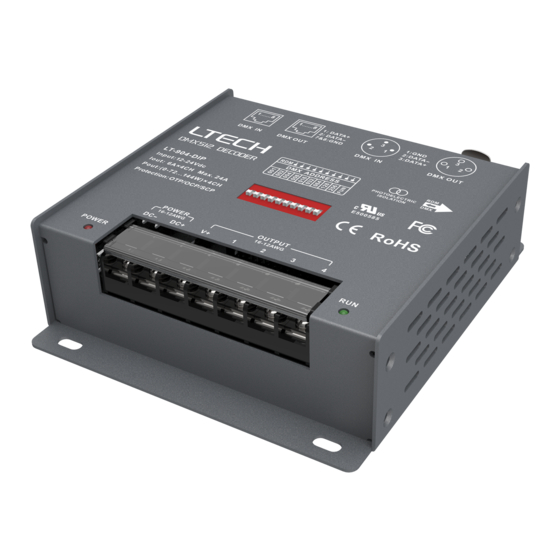

LT-904
4. With RDM remote management protocol, the operations can be completed via the
RDM master console, such as parameters browsing & setting, DMX address setting,
equipment recognition, etc.
5. With short circuit protection and over current protection, as well as warning function
when fault.
6. With fast self-testing function.
7. High/low
8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.
PWM
frequency
for optional
RJ45
3-pin XLR
RDM
1
Short circuit
Over current
Protection
Protection
warranty
5 years
Advertisement
Related Manuals for Ltech LT-904
Summary of Contents for Ltech LT-904
- Page 1 2. Easy operation with digital display and the touch buttons. 3. Support 2 kinds of DMX ports: 3-pin XLR, RJ45. LT-904 4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.
- Page 2 Technical Specs: Main Component Description: Digital LT-904 Model Protection: Short circuit / Over current display switch Input Signal DMX512/RDM Working Temp.: -30℃~65℃ 3-pin XLR, RJ45 DMX Interface: Dimensions L122×W110×H37mm Digital display Input Voltage 12 24Vdc Package Size L127×W123×H41mm...
- Page 3 Wiring Diagram: 2. DMX console onnection 1 Connecting LED lights: LT-904 is equipped with 2 types DMX terminals for users’ selection. The following diagram takes 3-pin XLR as an example, Signal Signal same connecting method for RJ45. console...
- Page 4 3. The connection diagram of 2 kinds of DMX/RDM terminals: Terminal Resistor LT-904 LT-904 LT-904 3-pin XLR Connected in Parallel Terminal Resistor Vent LT-904 LT-904 LT-904 Installation distance > 20mm RJ45 Connected in Parallel These 2 terminals can be connected in a mixed way.
