SNMP COMMUNICATION
In order to read/write the data from/to BACnet side, it is necessary to use specific SNMP commands in order to see the SNMP Input and
write the SNMP Output.
Reading BACnet data from SNMP:
In order to read the data from the HD67726 it is necessary to use the "snmpget" command. The Input array is contained to this internal

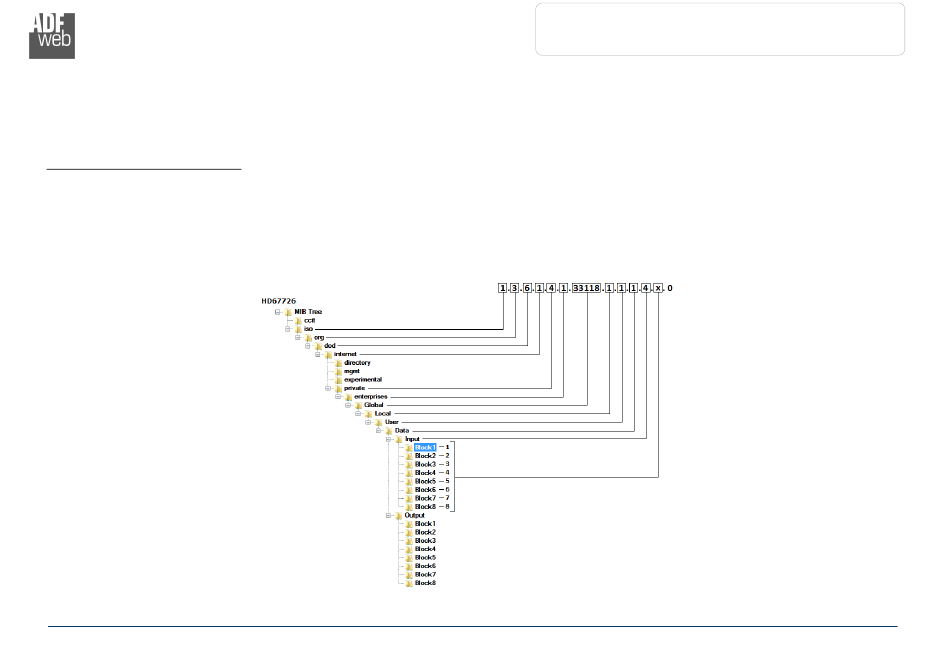

directory: 1.3.6.1.4.1.33118.1.1.1.4.x.0, where 'x' is the number of data block. Each data block has a dimension of 128 bytes.
Example: you want to read informations of the data block 3. The structure of the command to send is:
snmpget –v1 –cprivate "IP Address of the converter" 1.3.6.1.4.1.33118.1.1.1.4.3.0
