LEDS (for HD67726-IP-A1):

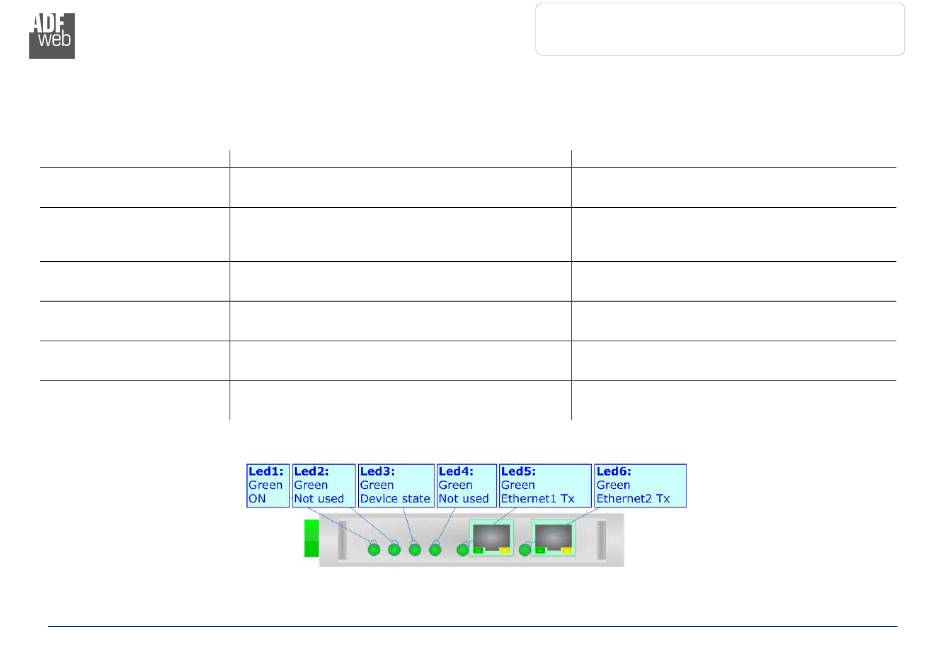

The device has got six LEDs that are used to give information about the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: ON [supply voltage ]
(green)
2: Not used (green)
3: Device state (green)
4: Not used (green)
5: Ethernet1 Tx (green)
6: Ethernet2 Tx (green)
ADFweb.com S.r.l.
Normal Mode
ON: Device powered
OFF: Device not powered
OFF
ON: Maintenance Problem is present
OFF: No maintenance are present
OFF
Blinks when is transmitting Ethernet frames
Blinks when is transmitting Ethernet frames
User Manual BACnet Master / SNMP Agent
Document code: MN67726_ENG Revision 1.100
Boot Mode
ON: Device powered
OFF: Device not powered
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in
progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
