LEDS:

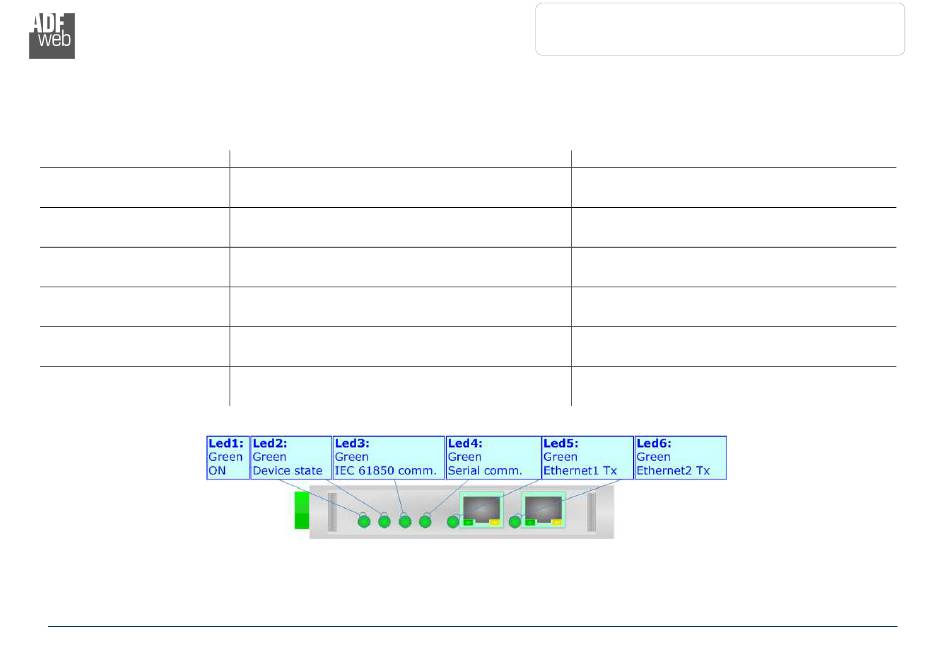

The device has got six LEDs that are used to give information about the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: ON [supply voltage ]
(green)
2: Device State (green)
3: IEC 61850 communication
(green)
4: Serial communication
(green)
5: Ethernet1 Tx (green)
6: Ethernet2 Tx (green)
ADFweb.com S.r.l.
Normal Mode
ON: Device powered
OFF: Device not powered
Blinks slowly (~1Hz)
It blinks when a IEC 61850 request is received
It blinks when a Serial request is received
Blinks when is transmitting Ethernet frames
Blinks when is transmitting Ethernet frames
User Manual IEC 61850 Server / Serial
Document code: MN67755_ENG Revision 1.000
Boot Mode
ON: Device powered
OFF: Device not powered
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
