Industrial Electronic Devices

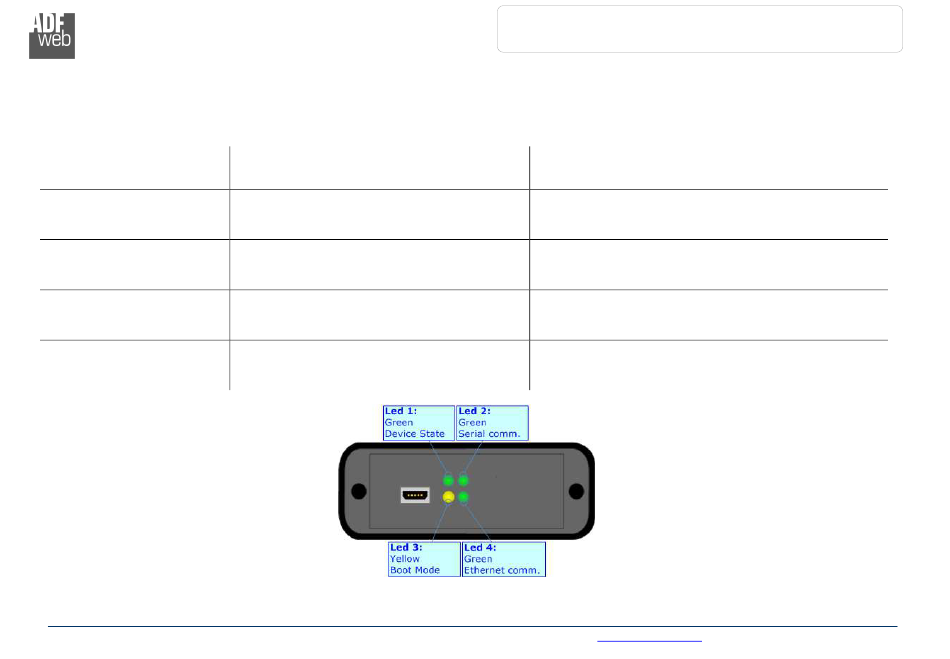

LEDS:
The device has got four LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: Device state (green)
2: Serial Communication
(green)
3: USB Link (yellow)
4: Ethernet communication
(green)
ADFweb.com Srl – IT31010 – Mareno – Treviso
Normal Mode
Blinks slowly (~1Hz)
Blinks when DMX messages are received
ON: USB cable inserted
OFF: USB cable not inserted
Blinks when EtherNet/IP communication is
working
User Manual DMX / EtherNet/IP - Converter
Document code: MN674-A026_ENG
Page 9 of 30
Boot Mode
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
ON: USB cable inserted
OFF: USB cable not inserted
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
INFO:
www.adfweb.com
Revision 1.000 Page 9 of 30
