NTI VOPEX PS/2 KVM SPLITTER

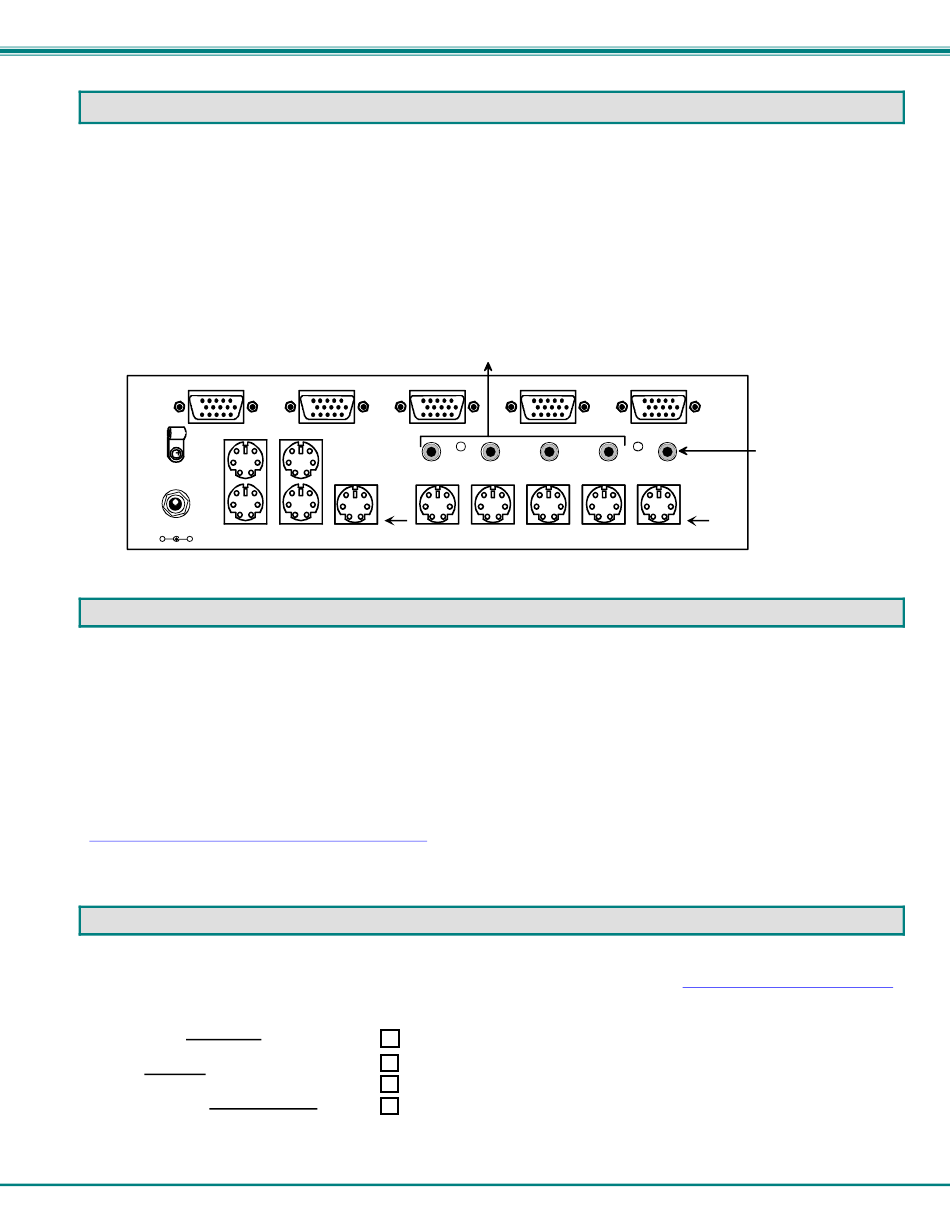

AUDIO SUPPORT

(Optional)
The VOPEX can be ordered with optional 3.5mm stereo audio ports (ex. VOPEX-4KVIMA-A) for connection to an audio source
("Audio In") and up to 4 self-powered stereo speakers (Audio 1-4).
Audio support provides the following additional features:
•
Audio signals from the same CPU that keyboard, mouse, and video signals are from can be received by the user.
•
Audio input accepts any standard line level audio (1Vrms or 2.5Vp-p).
•
Audio outputs are capable of driving an 8 Ohm speaker load with 200mW of continuous RMS power.
The audio signal is split to all users just as the video signal is split.
MONITOR 4
MOUSE 4
6 5
4 3
2 1
6 5
4 3
2 1
5VDC
2A
MOUSE 2
-
+

TROUBLESHOOTING

If any problems are experienced with the VOPEX switch, follow the steps below to see if the problem(s) can be easily corrected:
1. Verify that all cables are securely connected.
2. Verify that a monitor is connected to "MONITOR 1".
3. If a user has both a keyboard and mouse, verify that they are connected to a Keyboard port and Mouse port with the same
port number.
4. If a cable is disconnected:
a) Turn OFF power to the CPU.
b) Turn OFF power to the VOPEX.
c) Connect the cable.
d) Go through the power-up sequence described on page 3.
If trouble is still being experienced, a solution may be found in the knowledgebase on our website at
http://information.networktechinc.com/jive/kbindex.jspa
562-7070 and we will be happy to assist in any way we can.

WARRANTY INFORMATION

The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network
Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at
for information regarding repairs and/or returns. A return authorization number is required for all repairs/returns.
SERIAL NO.:
DATE:
INSPECTED BY:
Audio signal out to self-powered speakers
MONITOR 3 MONITOR 2
MOUSE 3
6 5
4 3
AUDIO 4
2 1
6 5 MOUSE
6 5 6 5
FROM
4 3
4 3 4 3
CPU
2 1
2 1 2 1
KYBD 4
MOUSE 1
or please call us directly at (800) 742-8324 (800-RGB-TECH) or (330)
VOPEX-2KVIM-A
VOPEX-4KVIM-A
VOPEX-2KVIMA-A
VOPEX-4KVIMA-A
MONITOR 1 VIDEO IN
AUDIO 3 AUDIO 2 AUDIO 1
AUDIO IN
6 5 6 5 6 5 6
4 3 4 3 4 3 4
2 1 2 1 2 1 2
KYBD 2
KYBD 3 KYBD 1
5
Audio signal
in from CPU
KYBD
5
FROM
3
CPU
1
http://www.networktechinc.com
MAN046 Rev. 9/20/16
