NTI RACKMUX Series Installation And Operation Manual

3g-sdi screen splitter/multiviewer, 9-port
Hide thumbs Also See for RACKMUX Series:

Advertisement

Table of Contents

®
RACKMUX
Series
SPLITMUX-3GSDI-9
3G-SDI Screen Splitter/Multiviewer, 9-Port
Installation and Operation Manual

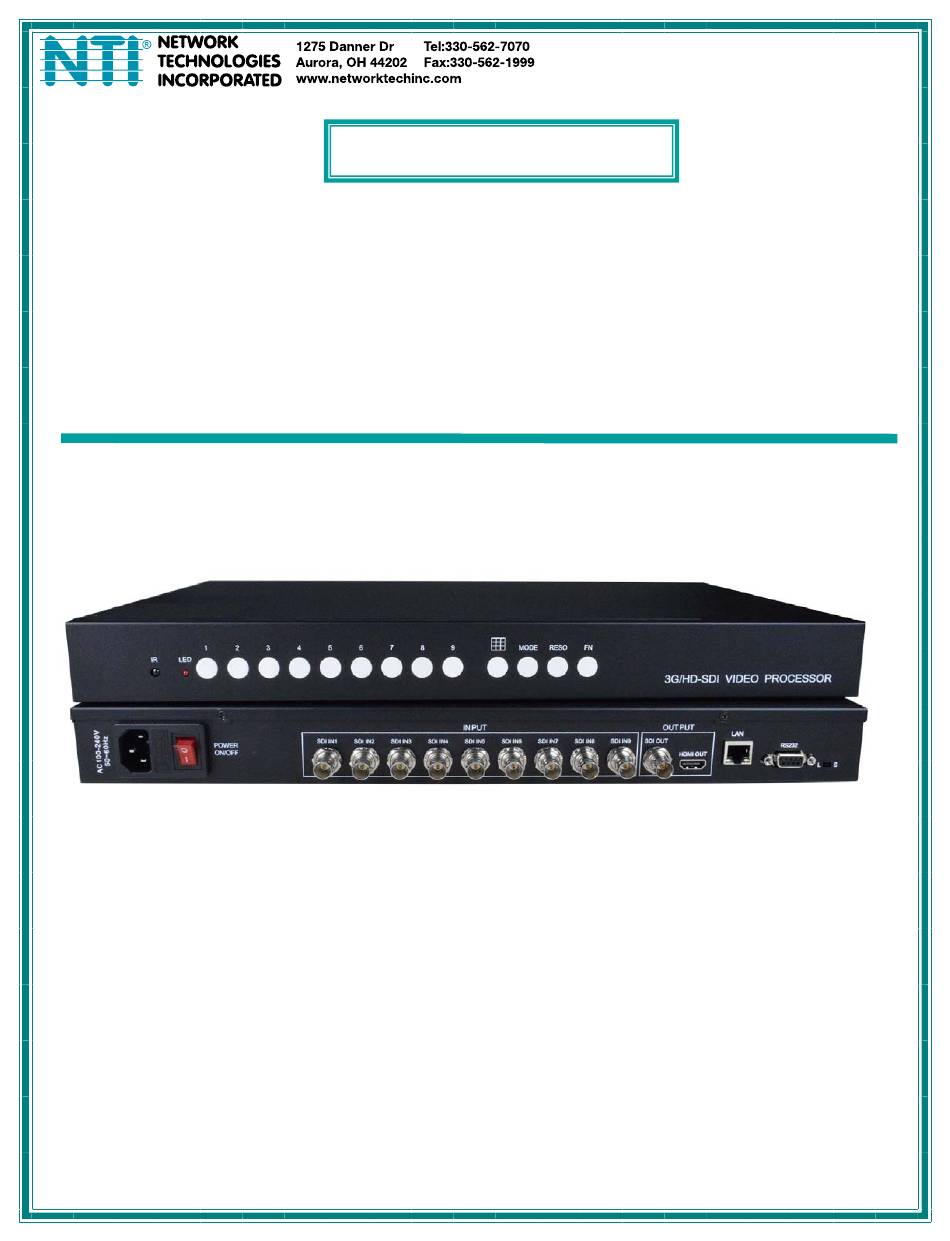

SPLITMUX-3GSDI-9 (Front and Rear View)
MAN431
Rev Date 2/16/2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RACKMUX Series and is the answer not in the manual?

Questions and answers

Related Manuals for NTI RACKMUX Series

Summary of Contents for NTI RACKMUX Series

  • Page 1 ® RACKMUX Series SPLITMUX-3GSDI-9 3G-SDI Screen Splitter/Multiviewer, 9-Port Installation and Operation Manual SPLITMUX-3GSDI-9 (Front and Rear View) MAN431 Rev Date 2/16/2023...
  • Page 2 TRADEMARK SPLITMUX and the NTI logo are registered trademarks of Network Technologies Inc in the U.S. and other countries. All other brand names and trademarks or registered trademarks are the property of their respective owners. COPYRIGHT Copyright © 2023 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction..................................1 Materials ..................................1 Features and Functions..............................2 Software Control Methods............................... 3 Hardware Control Methods ............................. 6 Technical Specifications..............................7 Warranty Information............................... 7...

  • Page 4: Introduction

    Supported output resolutions can be selected.  1RU mounting kit included. MATERIALS Materials supplied with this kit  NTI SPLITMUX-3GSDI-9 3GSDI Screen Splitter/Multiviewer  Line cord, country specific  URL slip with path to this manual  IR Remote Control Materials Not supplied but REQUIRED: An HDMI male-to-male cable to connect an HDMI monitor (if used)- order HD-xx-MM where xx = up to 50 feet long).

  • Page 5: Features And Functions

    NTI 3G-SDI Screen Splitter/Multiviewer FEATURES AND FUNCTIONS LABEL CONNECTOR/LED DESCRIPTION IR Sensor To receive signal from IR remote control Red LED Status indicator-illuminates when switch is working normally Buttons For single screen mode for each video input Segmented square Button...

  • Page 6: Software Control Methods

    Ethernet port using an application available from the NTI website. Use the application under Microsoft Windows 98, 2000, XP, Vista, or 7 through the web interface or RS-232 serial control. Use the application to control the switch and change the display modes between full screen, quad screen, 9-picture screen mode and custom mode screens.
  • Page 7 NTI 3G-SDI Screen Splitter/Multiviewer Ethernet Connect an Ethernet cable, wired straight through, between the "LAN" port on the SPLITMUX and an Ethernet port on a computer. Open the application, and select the "Network" tab under "Connect Type". Click the "Search" button under "Add Device", and double click the IP address of the SPLITMUX.
  • Page 8 NTI 3G-SDI Screen Splitter/Multiviewer Output Resolutions Output Resolutions for the video output can be selected between 1920x1080p@60Hz, 1920x1080p@50Hz, 1920x1080p@30Hz or 1280x720p@60Hz.

  • Page 9: Hardware Control Methods

    NTI 3G-SDI Screen Splitter/Multiviewer HARDWARE CONTROL METHODS Front Panel Interface Use front panel buttons to locally change ports, select a display mode, or change resolutions. Infrared Remote Control Use to change ports, select a display mode, or change resolutions. Note: Remote requires two AAA batteries (not included).

  • Page 10: Technical Specifications

    NTI 3G-SDI Screen Splitter/Multiviewer TECHNICAL SPECIFICATIONS  Nine female 75 ohm BNC connectors for 3G/HD/SD-SDI video input. Video Input/Output  One female 75 ohm BNC connector for 3G/HD/SD-SDI display.  One female HDMI connector for HDMI display.  Input: Supports 576x480@60Hz through 1920x1080@60Hz Video Resolution ...

This manual is also suitable for:

Rackmux splitmux-3gsdi-9
